China Magnesium Anode manufacturer

Sand Blasting Boron carbide Nozzle

Product Details:
Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO, DNV,BV
Model Number: Sand blast Machine
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: negotiable

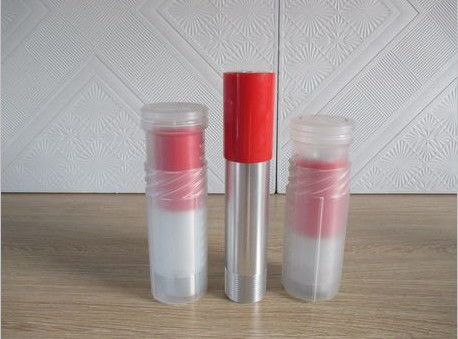

Packaging Details: Each nozzle packed in a plastic tube, then in a carton
Delivery Time: 200 pieces: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 pieces per month

Detail Information

Product Name: Sand Blasting Boron Carbide Nozzle For Cleaning Equipment Grade: China Standard
Application: Sandlbast Machine, Shot Gun,Sandblasting Gun,Spray Water, Cleaning Machine Shape: Straight Core,Ventui Type
Content: Boron Caride Type: Doule Venturi,single Entrance
Other Name: Boron Cabide Nozzle Material: Aluminum Alloy

Product Description

Product Introduction:



    High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.

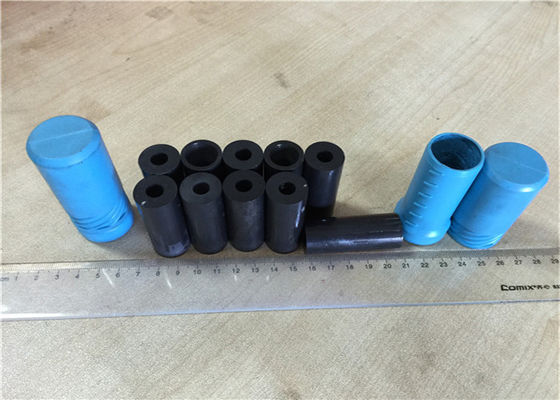

   Sand Blasting Boron carbide Nozzle



Specifications:



Density:          2.40-2.65 g/cm3

Elastic modulus:   510 Gpa

Knoop Hardness:  3300

Flexural strength:  400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness:   4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

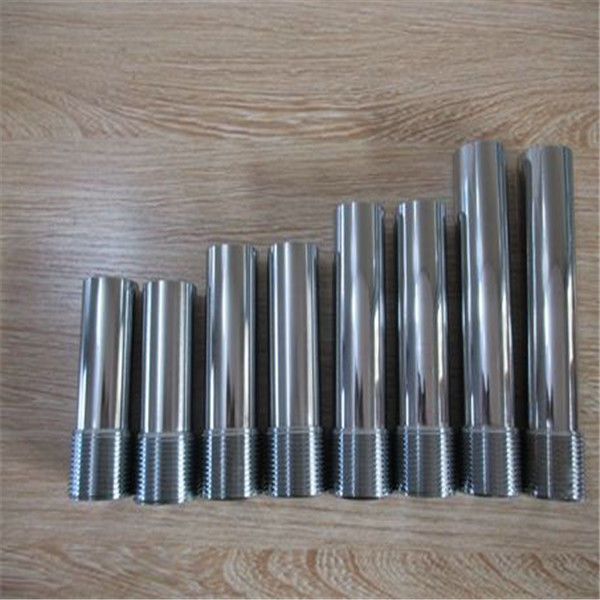

Regular size list for straight core



Diameter(mm)

Diameter (mm)

Length(mm)

20

4

45

20

6

45

20

8

45

20

10

45



Diameter(mm)

Diameter (mm)

Length(mm)

20

6

60

20

8

60

20

10

60



Diameter(mm)

Diameter (mm)

Length(mm)

20

6

80

20

8

80

20

10

80



Diameter(mm)

Diameter (mm)

Length(mm)

21

8

82

21

10

82

21

12

82



Other sizes:



Diameter(mm)

Diameter (mm)

Length(mm)

15

6

55

15

8

55

25

8

60

25

10

60

25

12

60

30

8

40

30

10

40

30

12

40

30

14

40



Venturi type:



Coarse thread and Fine thread

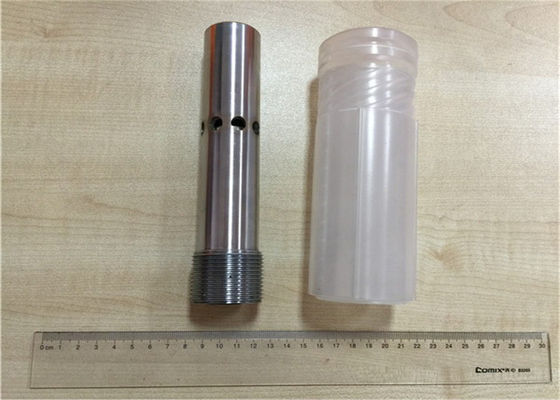

Boron carbide nozzle insert with Aluminum or stainless steel jacket

Entrance width

Entrance depth

Bore

Exit

Length

32

40

6.5

10.5

135

32

45

8.0

12.0

150

32

48

95.

14.0

165

32

52

11.0

15.5

190

32

58

12.5

17.0

215

Entrance width

Entrance depth

Bore

Exit

Length

25

28

6.5

10.5

135

25

35

8.0

12.0

150

25

38

95.

14.0

165

25

42

11.0

15.5

190

25

42

12.5

17.0

215

 (mm)











Material Comparation Chart:



Item

Al2O3

SiC

B4C

Density

3.5g/cm3

3.1g/cm3

2.4-2.65g/cm3

Hardness

HV1650

HV2750

HV3300

Flexural strength

290 Mpa

380 Mpa

400-650 Mpa

Compressive strength

850 Mpa

3970 Mpa

4100 Mpa

Fracture toughness

4.8 Mpa.m1/2

4.0 Mpa.m1/2

4.5-7.0 Mpa.m1/2

Thermal Conductivity

20 m0k

120m0k

29 m0k







Workshop & Warehouse & Lab:





Sand Blasting Boron carbide Nozzle
