China Magnesium Anode manufacturer

B type C type Sand Blast Gun Aluminum alloy Boron caride Content

Product Details:
Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO
Model Number: Sand blasting
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: negotiable
Packaging Details: Each nozzle packed in a plastic tube, then in a carton
Delivery Time: 200 pieces: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 pieces per month

Detail Information

Product Name: Sand Blasting Gun For Sandblasting Machine,Cleaning Equipment Grade: China Standard
Application: Sandlbast Machine, Shot Gun,Sandblasting Gun,Spray Water, Cleaning Machine Shape: A Type, B Type,C Type
Content: Boron Caride Type: Doule Venturi,single Entrance
Other Name: Boron Cabide Nozzle Material: Aluminum Alloy

Product Description

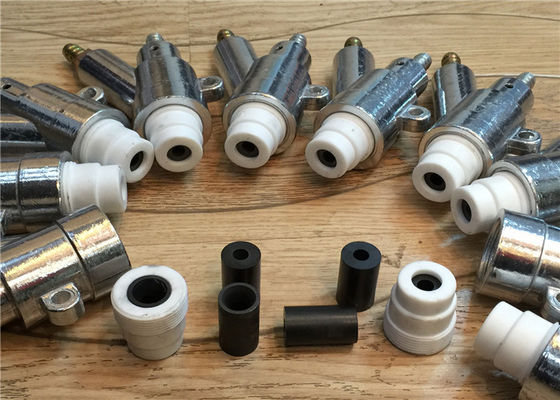

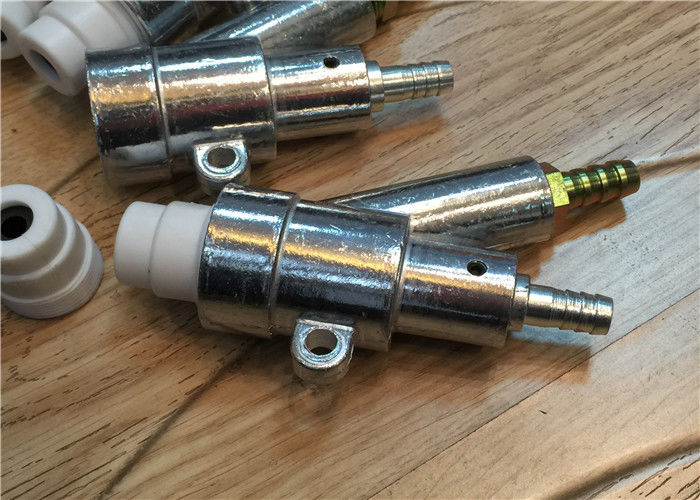

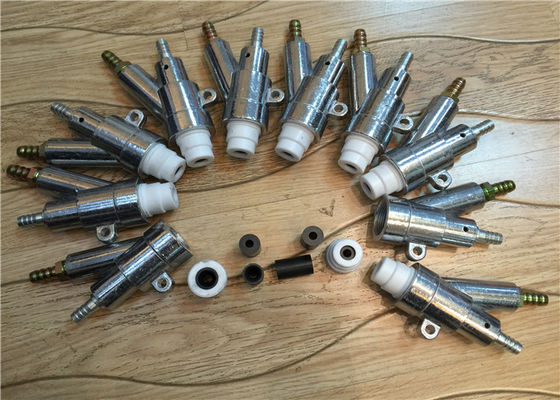

B type C type Sand Blast Gun Aluminum alloy Boron caride Content





Product Introduction:



     B type C type Sand Blast Gun Aluminum alloy Boron caride Content





Pressure sandblasting gun is the key parts of Sandblasting machine. Usually we have A/B/C type sand blast gun , which have a air pipe and a sand pipe. When high speed air flow enter into nozzles , the sandblasting gun will pressure the sand into the nozzles and then goes out, so we can cleaning the surface as we want.

Specifications:

M35 X Thread 2.0

Type

Sand pipe diameter (mm)

Air pipe   diameter (mm)

Install way

Normal nozzle O.D. 20 mm x Length (mm)

A

13

13

Ear or Inlay

35

B1

13

13

Ear or Inlay

35/45/60/80/82

B2

13

13

Ear or Inlay

35/45/60/80/82

C1

13

13

Ear or Inlay

35/45/60/80/82

C1

13

10

Ear or Inlay

35/45/60/80/82

Powder

13

13

Ear

35/45/55

Production application:

Sandblast gun:

A type: inside room is smaller than B/C type. Spray Sand speed is slower. It is usually used for spaying small particles.



B type: Thread type and Insert type

       It is usually used for spraying bigger particles.

C type:Pipe I.D. is thin, sand volume is bigger, it is also use for big particles.
