High Potential HP AZ63 Magnesium Sacrificial Anode Cathodic Protection ASTM
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad/OEM |
| Certification: | ASTM G-97, ISO, DNV |
| Model Number: | High Potential HP AZ63 Magnesium Sacrificial Anode magnesium anode manufacturer ASTM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1kg for High Potential HP AZ63 Magnesium Sacrificial Anode magnesium anode manufacturer ASTM |
|---|---|
| Price: | negotiable |
| Packaging Details: | On pallet with steel bundles for magensium anode |
| Delivery Time: | 1days for 10tons |
| Payment Terms: | D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc |
| Supply Ability: | 300mt per month |
|
Detail Information |
|||
| Product Name: | High Potential HP AZ63 Magnesium Sacrificial Anode Magnesium Anode Manufacturer ASTM | Name: | Magnesium Anode,Aluminum Anode,Zinc Anode |
|---|---|---|---|
| Type: | ASTM G-97, ISO, DNV Range From 3D3 To 48D5 And 60-pound Mg Anodes | Standard: | ASTM G-97 AZ63C Magnesium Anode |
| Material: | Zn Mg Mn Al | Usage: | Anti-corrosion/Cathodic Protection |
| Shape: | Cylinder, Square,D Shape Cast Magnesium Anodes For HP & AZ Type | Other Name: | ANTI-CORROSION/Cathodic Protection Mg Anode Al Anode Zn Anode |
| High Light: | sacrificial anode protection,magnesium sacrificial anode |
||
Product Description
High Potential HP AZ63 Magnesium Sacrificial Anode Cathodic Protection ASTM
High Potential HP AZ63 Magnesium Sacrificial Anode magnesium anode manufacturer ASTM
Standard : ASTM G-97
Specification
| Chemical compositions of cast magnesium anode (%) | ||||
| Element | High potential | AZ63B | AZ63C | AZ63D |
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance |
Balance |
| Electrochemical Properties of cast magnesium anodes | ||||
| Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) | |
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
|
Low Potential (AZ63) |
1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
|
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) |
||||
Product information

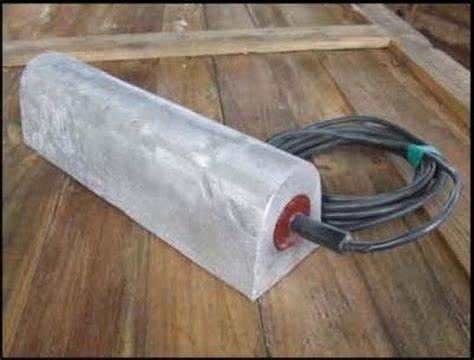

• Item name: Magnesium sacrificial anode
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.
When the anode's cable is attached to a pipeline or other underground structure, a galvanic cell is created in which electrons flow from the anode to the structure, thereby protecting the structure.The anode corrodes instead of the structure and must be replaced after a certain period of time that depends on the type of structure that is being protected, the size and grade of anodes that are used, and the corrosivity and resistivity of the surrounding soil.
In addition to pipelines, magnesium anodes are often used to protect propane, water and chemical storage tanks, areas of ships and port facilities that are not in direct contact with sea water, power plants and irrigation systems.
Application of sacrificial anode magnesium
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.

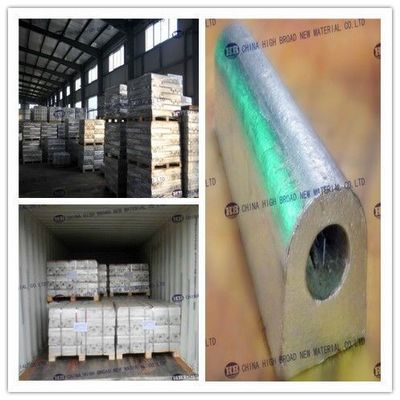

4 Anode detail image
We can surely produce anode as per your drawing !
Pls contact us for more details !
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Mobile/Whatsapp: +86-139-7515-2932
magnesium anode
Usage:
(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
We are dealing with Magnesium Anodes more than ten years. As a professional producer & supplier in the market, we have good relationship with various customers all over the world(North America,Europe,Korea,Middle East). Basis on our stable quality and good service, we have achieved good reputation among our customers for our good contractual reliability and delivery performance no matter the market is going up or down.
We can supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys.The size range from 3D3 to 48D5 and 60-pound anodes.Round High Potential one –pound Anodes are also available,as are all sizes of Extruded Anodes and Magnesium Ribbon.We can also produce the goods as per your requirement even such as the Large-tonnage Magnesium Sacrificial Anodes. The producing and testing process is strictly as per the DOW Chemical company(U.S.A.) and China SYJ19-86 standard.Capacity is 3000mt/year.
Besides,we also supply Aluminum/Zinc Anodes etc.which are widely used in Cathodic Protection.
