AZ31 Series Magnesium Anode Rod / Water Heater Anode Rod Standard NF EN 12438

AZ31 Series Magnesium Anode Rod / Water Heater Anode Rod Standard NF EN 12438

Product Details:

Place of Origin: China
Brand Name: High Broad/OEM
Certification: DNV ASTM ISO CE
Model Number: magnesium anode rod AZ31

Payment & Shipping Terms:

Minimum Order Quantity: 1kg for magnesium anode rod AZ31
Price: negotiable
Packaging Details: magensium rod be packaged in wood box then on pallet with steel bundles
Delivery Time: 1days for 20tons
Payment Terms: D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability: 500mt per month
Get Best Price Contact Now

Detail Information

Product Name: Magnesium Anode Rod AZ31 Application: Corrosion Protection,Electric Water Heater Etc
Chemical: Magnesium Rod Content: Magnesium Anode Rod
Commodity: Mg Alloy Ingot Shape: Rod Extruded AZ31B Magnesium Rod, AZ61 AZ91D Magnesium Anode Rod For Water Heater
Sacrificial Anode Rod: High-Performance Large-Diameter Cast Magnesium Alloy Rod AZ63B: Magnesium Anode Rod AZ31,AZ91
Chemical Content: Mg,Mn,Al,Zn,Cu ASTM B 843-1995: OEM Extruded/Cast Magnesium Anode Rod For Water Heaters
High Light:

sacrificial anode protection

,

mg anode

Product Description





AZ31 Series Magnesium Anode Rod / Water Heater Anode Rod Standard NF EN 12438



Extruded AZ31B magnesium rod  magnesium anode rod for water heater





1.Product information

Item name: Extruded AZ31B magnesium rod, AZ61 AZ91D magnesium anode rod for water heater
• The advantage: AZ31B,AZ63, High Potential (Mg-Mn) The best quality and best price.
Raw materials: AZ31 series,AZ63series and so on;

2.The characteristic of magnesium   rod
The magnesium  rod is designed to make a longer life for water heaters and boilers, it is the solution to smelly water and sediment control and other specific problems. We supply the water heater magnesium anode rod following the standard of NF EN 12438.

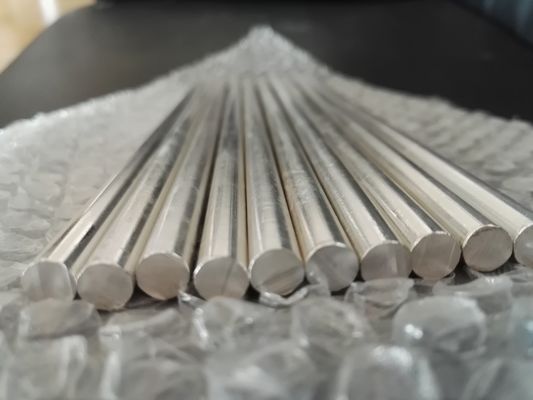

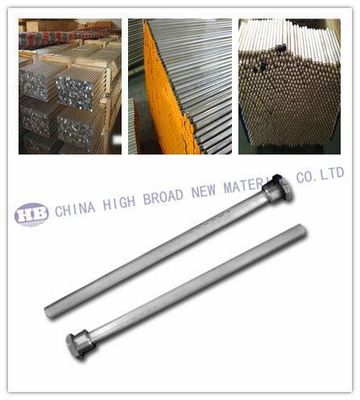

3.Anode detail image

AZ31 Series Magnesium Anode Rod / Water Heater Anode Rod Standard NF EN 12438 0


We can surely produce Magnesium Rod as per your drawing !

Pls contact us for more details !



4. Chemical Composition


TypeAlloy ElementImpurity Elements(Max)
AlZnMnMgFeCuNiSiOther
EachTotal
MGAZ63B5.3-6.72.5-3.50.15-0.60Balance0.0030.010.0010.08_0.30
MGAZ31B2.7-3.50.6-1.40.2-1.0Balance0.0030.010.0010.080.050.30


5. Dimensions


Anode Dia(mm)Core Dia(mm)ScrewUnit weight(g/cm)
φ13.97Φ2.0NPE-ASMT/BSP/G/R2.83
Φ19.05Φ3.4NPE-ASMT/BSP/G/R5.66
Φ21.34Φ3.4NPE-ASMT/BSP/G/R6.85
Φ26.67Φ3.4NPE-ASMT/BSP/G/R10.42
Φ33.40Φ3.4NPE-ASMT/BSP/G/R16.08
Φ39.65Φ4.8NPE-ASMT/BSP/G/R23.07
Φ51.40Φ4.8NPE-ASMT/BSP/G/R37.96
*Customized Size Available


6.magnesium anode

Usage:
(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)

We are dealing with Magnesium Anodes more than ten years. As a professional producer & supplier in the market, we have good relationship with various customers all over the world(North America,Europe,Korea,Middle East). Basis on our stable quality and good service, we have achieved good reputation among our customers for our good contractual reliability and delivery performance no matter the market is going up or down.

We can supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys.The size range from 3D3 to 48D5 and 60-pound anodes.Round High Potential one –pound Anodes are also available,as are all sizes of Extruded Anodes and Magnesium Ribbon.We can also produce the goods as per your requirement even such as the Large-tonnage Magnesium Sacrificial Anodes. The producing and testing process is strictly as per the DOW Chemical company(U.S.A.) and China SYJ19-86 standard.Capacity is 3000mt/year.

Besides,we also supply Aluminum/Zinc Anodes etc.which are widely used in Cathodic Protection.



Company Principle:

Our Belief: Continuous Innovation.
Our Spirit: Sincerity, Unity, Dedicated, Hardworking.
Our Mission: Provide most advanced products & most professional technical solution.
