China Magnesium Anode manufacturer

MMO/Ti flexible Anode , MMO Coated Titanium wire Flexible anode

Product Details:
Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO, DNV,BV
Model Number: ASTM B348 GRADE I/II
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: negotiable
Packaging Details: on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30000meters/month
Contact Now

Detail Information

Application: LMMO/Ti Linear Anode For Buried Pipelines Standard: ASTM
Shape: Mixed Metal Oxide Titanium Flexible Anode Content: Impressed Current Cathodic Protection
Type: Impressed Current C Anode ICCP

Product Description

MMO/Ti flexible anode



Linear anode also called flexible anode , it can be classified into two categories: linear anode based on the nano conductive Linear anode also called flexible anode , it can be classified into two categories: linear anode based on the nano conductive carbon black polymer composite technology and linear anode based on MMO/Ti coating. The former is the first generation and the latter are the second generation. Both of them are used for impressed current cathodic protection of buried structures, such as buried oil (gas) pipelines, underground tank, petrochemical container etc. in order to slow down corrosion. The linear anode is characterized by easy installation, completed supporting facilities and reasonable price.







  •
  •
Diameter of flexible anode 39+/-2 mm
Average Thickness of conductive polymer >= 4 mm
Volume Resistivity of conductive polymer 1.5 Ω˙cm
Take a 0.2meter sample and put it into 3% NACI solution with a constant current of 40mA for one month The consumption of carbon black is of the visible inlet ring radius
Output current 52 mA/m
Designed service life of anode >= 25 years
Carbon content of packing coke powder >= 98%
Resistivity of coke powder <= 0.55 Ω˙cm
Fabric Cladding Jacket of anode Resistant to acid/alkaline and chlorine; Permeable
External woven mesh Resistant to Abrasion and ambient temperature variation
Weight of anode >= 1.3 kgs/meter

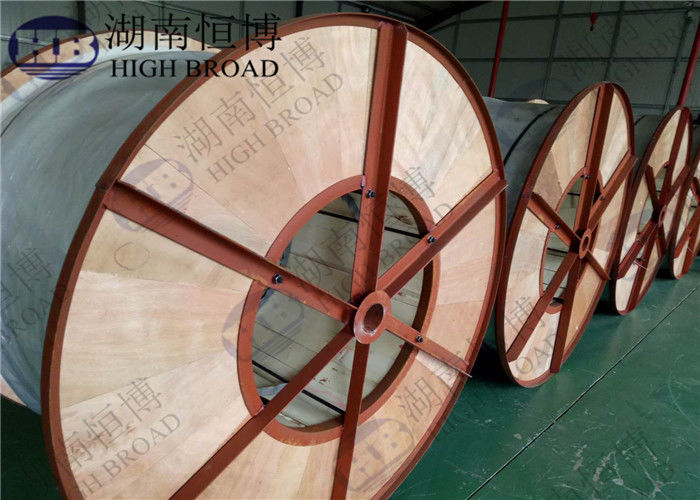

Length of each coil

700 meters or customized





MMO/Ti flexible Anode , MMO Coated Titanium wire Flexible anode

MMO/Ti flexible Anode , MMO Coated Titanium wire Flexible anode
