Product Details:

Place of Origin: China
Brand Name: OEM/High Broad
Certification: ISO
Model Number: Armor Ceramic

Payment & Shipping Terms:

Minimum Order Quantity: 10 kilograms
Price: negotiable
Packaging Details: Each nozzle packed in a plastic tube, then in a carton
Delivery Time: 10 tons:14Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 100 MT per month
Get Best Price Contact Now

Detail Information

Advantage: Modern Design Boron Carbide Ballistic Ceramic In Hexagonal Tiles Bulletproof Plate: Silicon Carbide Bulletproof Ceramic Body Armor Plate
Application: Boron Carbide Bulletproof Plate / Tiles B4C Bulletproof Ceramic: B4C Ceramic Platesf Ceramic/ballistic Plate/tile
Police And Military Use: Nij Level IV Lightweight Hard Armor Plate Silicon Carbide Particles: Independent Protection Weapon UHMWPE Hexagonal Silicon Carbide Particles Bulletproof Plate
High Light:

silicon carbide tiles

,

ceramic body armor plate

Product Description

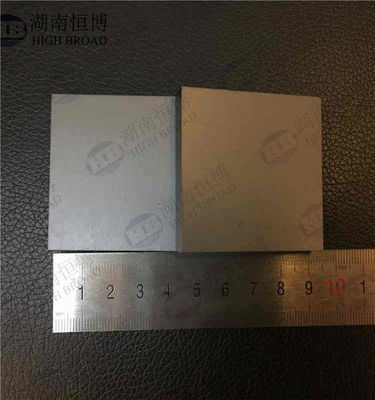

Bullet proof vest B4C ceramic tiles SIC armor ceramic tiles bulletproof insert plates



Bulletproof Plate Military Army Ceramic NIJ III IV Bullet proof Ballistic Plate



The silicon carbide ceramic plate has been inspected by the Quality Inspection Center for Special Protective Clothing of the People's Liberation Army. The test results show that the protective effect of the silicon carbide ceramic plate product is very good, and the protective performance reaches JXUB 3010-2010 "Wood Ceramics Meet the Specifications of Bulletproof Inserting Board" Type I bulletproof inserts are required.



Silicon carbide ceramics are widely used in bulletproof armor due to their high hardness, small specific gravity, good ballistic performance and low price, such as the protection of vehicles and ships, as well as the protection of civilian safes and cash trucks. The ballistic performance of SiC ceramics is better than that of alumina ceramics, which is about 70-80% of boron carbide ceramics. However, due to its low price, it is especially suitable for applications where the amount is large and the protective armor cannot be too thick or too heavy.
The bulletproof board also includes a silicon carbide bulletproof board and a composite bulletproof board.







Item Al2O3 SiC B4C
Density 3.5g/cm3 3.1g/cm3 2.4-2.65g/cm3
Hardness HV1650 HV2750 HV3300
Flexural strength 290 Mpa 380 Mpa 400-650 Mpa
Compressive strength 850 Mpa 3970 Mpa 4100 Mpa
Fracture toughness 4.8 Mpa.m1/2 4.0 Mpa.m1/2 4.5-7.0 Mpa.m1/2
Thermal Conductivity 20 m0k 120m0k 29 m0k
Coefficient of thermal expansion 7.2x106 4x106

4.5x106











SIC Armor Ceramic Tiles Bulletproof Vest B4C Ceramic Tiles Bulletproof Insert Plates 0
