Bar Shape Water Heater Anode Replacement , Gas Water Heater Rod Anode
Product Details:
Place of Origin: | China |
Brand Name: | High Broad |
Certification: | ISO |
Model Number: | az63 |
Payment & Shipping Terms:
Minimum Order Quantity: | discuss |
---|---|
Price: | discuss |
Packaging Details: | plywooden case for export |
Delivery Time: | basis on quantity |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000MT per year |
Detail Information |
|||
Thread: | 3/4''NPT | Name: | Mg Rod |
---|---|---|---|
Usage: | Protect Water Heater | Material: | Az63 |
Az63: | 3/4''NPT Magnesium Anode Rod For Water Heater Tanks | ||
High Light: | water heater rod anode,water heater anode rod replacement |
Product Description

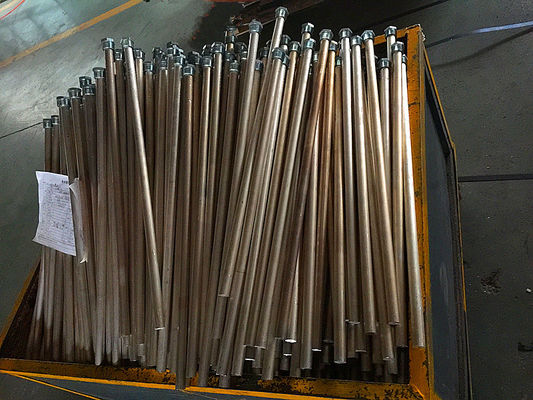

3/4''NPT Magnesium Anode Rod for Water Heater Tanks
Water heater anode rod or sacrificial anode is the important component part with only one purpose to protect metal tank from corrosion.Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.
High Broad supply extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31 alloy,AZ63 alloy) and Alumnium Alloy.Our extruded anodes are typically suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.
Diameter(inch) | Core eccentric(inch) | Core diameter(inch) | Straightness(inch/2 ft length) | Weight(lbs/inch) |
Magnesium Extruded rod | ||||
0.0675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
Aluminum Extruded rod | ||||
0.576-0.020 | 0.050 | 0.135 | 0.060 | 0.038 |
0.750-0.020 | 1/16 | 0.135 | 0.050 | 0.048 |
Because it is hand-cut, length maybe 1 cm error
