• Were Designed Linear Flexible Anodes For Cathodic Protection Of Pipelines Tanks
Were Designed Linear Flexible Anodes For Cathodic Protection Of Pipelines Tanks

Were Designed Linear Flexible Anodes For Cathodic Protection Of Pipelines Tanks

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ISO, DNV,BV
Model Number: ASTM B348 GRADE ONE

Payment & Shipping Terms:

Minimum Order Quantity: 1 meter
Price: negotiable
Packaging Details: on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30000meters/month
Get Best Price Contact Now

Detail Information

Application: Cathodic Protection Of Pipelines,tanks Standard: ASTM B348 GRADE I/II
Shape: Mixed Metal Oxide Coated Titanium Wire Flexible Anode Content: Impressed Current Cathodic Protection Oil Tank Pipelines
Type: Impressed Current C Anode ICCP
High Light:

sacrificial anode protection

,

magnesium sacrificial anode

Product Description

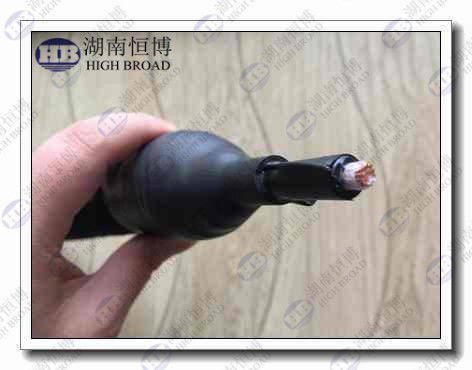

Linear flexible anodes were designed for the cathodic protection of pipelines,tanks



The flexible anode is also known as a cable anode. The anode is also a conductive polymer, wrapped on a copper core wire, and then subjected to a series of special processes to make it have heat and aging resistance, and its working life can be More than 40 years. Due to its special structure, its longitudinal resistance is low, and it can transmit current to a long distance. The lateral resistance is high, so that the current in the copper core can only slowly "drop" into the ground. Filling coke around it improves the working environment of the anode and enables it to extend its life.

For the new tank, the flexible anode can be evenly distributed in a serpentine shape under the tank base. The flexible anode is directly laid on the bottom of the tank, and the lead joint is placed outside the tank foundation, which can facilitate the maintenance of the anode because the anode is most faulty. That is, the joint is broken. The system has the characteristics of uniform current distribution and less corrosion interference.

In the old tank area, the flexible anode cathodic protection of the pipe network connected to the tank body can save the trouble of electrical insulation.



Linear Flexible anode

Linear flexible anodes were designed for the cathodic protection of pipelines,tanks(AST or Mounded LPG Storage bullets) in soil or sand and reinforced concrete structures.

Linear flexbile anode designed for close by cathodic protection in HDD applications.

This system is considered the ideal solution when the anode has to be installed very close to the strcuture to protect in confined spaces.

Were Designed Linear Flexible Anodes For Cathodic Protection Of Pipelines Tanks 0
