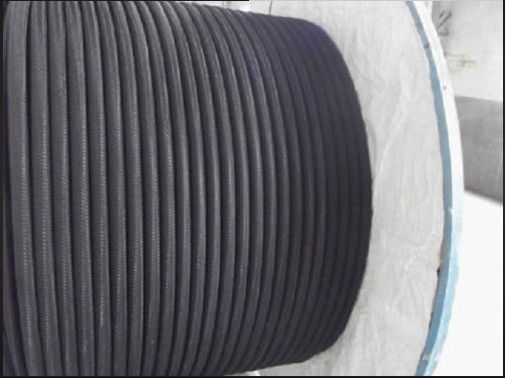

Conductive Polymer Flexible Anode With Coke Backfill Used For Underground Steel Structure

Product Details:
Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO, DNV,BV
Model Number: ASTM B348 GRADE I/II
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: negotiable
Packaging Details: on pallet
Delivery Time: 1FCL: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30000meters/month
Contact Now

Detail Information

Application: Linear Anode For Buried OIL / GAS Pipelines Standard: Splice Kits For AnodeFlex 1500 Linear Anode System
Shape: Conducting Polymer Content: Copper Core Linear Anode For Cathodic Protection System
Type: Grid Anodes

Product Description



Conductive polymer flexible anode

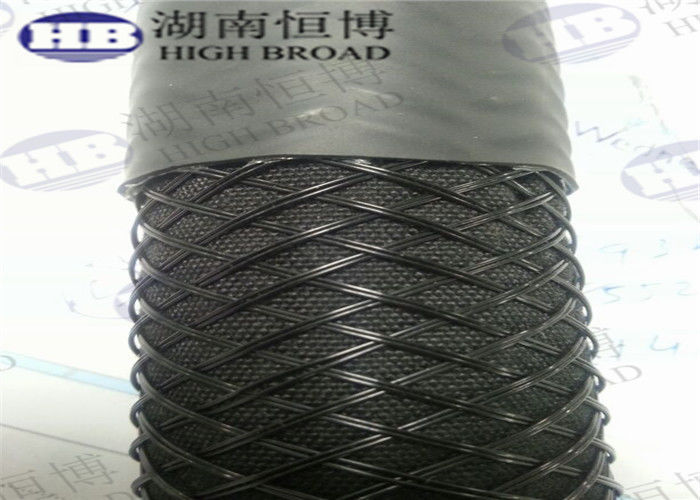

The conductive polymer type flexible anode is a uniform continuous structure auxiliary anode made of a conductive polymer as a substrate. The anode body is an integrated uniform continuous structure composed of a copper wire and a conductive polymer sheath. The outer structure is composed of a coke coating layer, an acid-resistant woven layer, and a wear-resistant woven mesh.



1, rated working current
Recommended maximum output current in soil: 52mA/m
2, the basic size of the anode
The nominal cross-sectional area of copper wire is ≥16.0mm2,
Sheath diameter (including copper wire) ≥13.0mm
Finished product diameter: 39.5±0.5mm
3, polymer conductive sheath volume resistivity
GB/T 3048-2007 "Wire and cable electrical performance test method"
Copper wire DC resistance (ply) ≤ 1.5 Ω / km
Conductive sheath volume resistivity: 1.1-1.9 Ω.cm

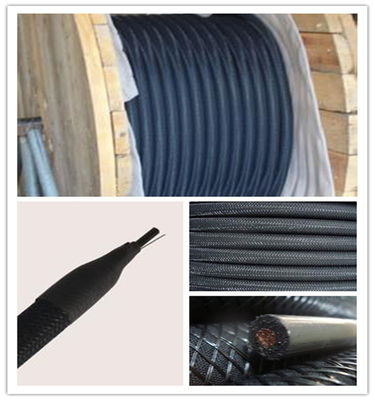

Conductive Polymer Flexible Anode With Coke Backfill Used For Underground Steel Structure
