High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3

Good quality Aluminum Anode for sales
Good quality Aluminum Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3

China High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3 supplier
High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3 supplier High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3 supplier

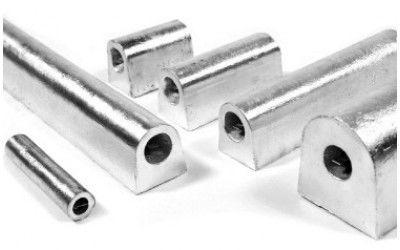

Large Image :  High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3

Product Details:

Place of Origin: China
Brand Name: High Broad/OEM
Certification: ASTM G-97, ISO, DNV
Model Number: High Potential Magnesium Anode/HP Mg Anode

Payment & Shipping Terms:

Minimum Order Quantity: 10kg for High Potential magnesium sacrificial anode Mg Alloy ASTM B843 M1C Casting 17d3 Magnesium Anodes
Price: negotiable
Packaging Details: On pallet with steel bundles for magensium anode
Delivery Time: 1days for 10tons
Payment Terms: D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability: 300mt per month
Contact Now
Detailed Product Description
Product Name: High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3 Magnesium Anodes Name: Magnesium Anode,Aluminum Anode,Zinc Anode
Type: ASTM G-97, ISO, DNV Range From 3D3 To 48D5 And 60-pound Mg Anodes Standard: ASTM G-97 AZ63C Magnesium Anode
Material: Mg Mn Al Usage: Anti-corrosion/Cathodic Protection
Shape: Cylinder, Square,D Shape Cast Magnesium Anodes For HP & AZ Type Other Name: ANTI-CORROSION/Cathodic Protection Mg Anode Al Anode Zn Anode



High Potential magnesium sacrificial anode Mg Alloy ASTM B843 M1C Casting

17d3 Magnesium Anodes



1.Product information



• Item name: 17d3 Magnesium sacrificial anode



High Potential Magnesium anode is used as a sacrificial anode in cathodic protection. Magnesium has the highest driving voltage of all the materials used for sacrificial anodes. if it is placed within a system that uses large amounts water, it attracts the corrosion away from other components.

Our magnesium anode all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97,It’s available from both M1C( high Potential)or AZ63B(standard Potential)magnesium anode.



High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3









2.Application of sacrificial anode magnesium



High Potential Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.



Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.



♦ Chemical compositions of High Potential Magnesium Anode :





* We can do according to customized size and requirements.

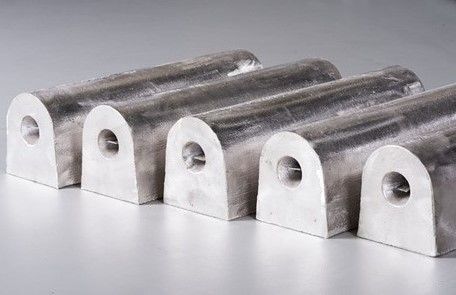

3.Anode detail image

High Potential Magnesium Sacrificial Anode Mg Alloy ASTM B843 M1C Casting 17d3



We can surely produce anode as per your drawing !



Pls contact us for more details !


Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email:
janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com





4. Specification



Standard : ASTM G-97



Chemical compositions of cast magnesium anode (%)
Element High potential AZ63B AZ63C AZ63D
Al <0.01 5.30-6.70 5.30-6.70 5.0-7.0
Zn --- 2.50-3.50 2.50-3.50 2.0-4.0
Mn 0.5-1.30 0.15-0.70 0.15-0.07 0.15-0.70
Si (max) 0.05 0.10 0.30 0.30
Cu (max) 0.02 0.02 0.05 0.10
Ni (max) 0.001 0.002 0.003 0.003
Fe (max) 0.03 0.005 0.005 0.005
Others each 0.05 --- -- ---
Others total 0.30 0.30 0.30 0.30
Mg Balance Balance Balance

Balance





Electrochemical Properties of cast magnesium anodes
Item Open-circuit Voltage Close-circuit Voltage Actual capacitance Current efficiency
  (-V) (-V) (A.h/g) (%)
High Potential 1.70-1.75 1.57-1.62 ≥ 1.100 ≥ 50

Low Potential

(AZ63)

1.50-1.55 1.45-1.50 ≥ 1.105 ≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)





5.magnesium anode



Usage:

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)





Company Principle:



Our Belief: Continuous Innovation.

Our Spirit: Sincerity, Unity, Dedicated, Hardworking.

Our Mission: Provide most advanced products & most professional technical solution.



6.Contact us for more information:


 Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email: janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com
