AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3

China AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3 supplier
AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3 supplier AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3 supplier

Large Image :  AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3

Product Details:

Place of Origin: China
Brand Name: High Broad/OEM
Certification: ASTM G-97, ISO, DNV
Model Number: AZ63 magnesium sacrificial anode Mg Alloy ASTM B843 Casting 17d3 Magnesium Anodes

Payment & Shipping Terms:

Minimum Order Quantity: 10kg for AZ63 magnesium sacrificial anode Mg Alloy ASTM B843 Casting 17d3 Magnesium Anodes
Price: negotiable
Packaging Details: On pallet with steel bundles for magensium anode
Delivery Time: 1days for 10tons
Payment Terms: D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability: 300mt per month
Contact Now
Detailed Product Description
Product Name: AZ63 Magnesium Sacrificial Anode Mg Alloy ASTM B843 Casting 17d3 Magnesium Anodes Name: Magnesium Anode,Aluminum Anode,Zinc Anode
Type: ASTM G-97, ISO, DNV Range From 3D3 To 48D5 And 60-pound Mg Anodes Standard: ASTM G-97 AZ63C Magnesium Anode
Material: Mg Mn Al Usage: Anti-corrosion/Cathodic Protection
Shape: Cylinder, Square,D Shape Cast Magnesium Anodes For HP & AZ Type Other Name: ANTI-CORROSION/Cathodic Protection Mg Anode Al Anode Zn Anode





AZ63 magnesium sacrificial anode Mg Alloy ASTM B843 Casting

32d5 17d3 9d3 Magnesium Anodes







1.Product information



• Item name: AZ63 or High Potential  Magnesium sacrificial anode 32d5 17d3 9d3



Extruded Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters, boilers, water storage tanks, heat plumbing, gas stations CP systems.

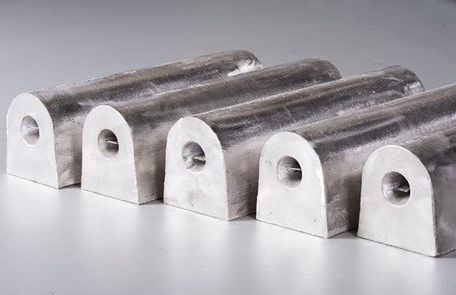

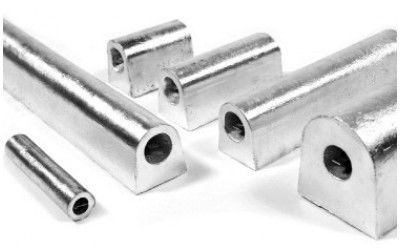

2.Anode detail image



AZ63 Magnesium Anodes Cathodic Protection Mg Alloy ASTM B843 Casting 32d5 17d3 9d3

We can surely produce anode as per your drawing !



Pls contact us for more details !


Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email:
janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com





3. Specification



Standard : ASTM G-97



Chemical compositions of cast magnesium anode (%)
Element High potential AZ63B AZ63C AZ63D
Al <0.01 5.30-6.70 5.30-6.70 5.0-7.0
Zn --- 2.50-3.50 2.50-3.50 2.0-4.0
Mn 0.5-1.30 0.15-0.70 0.15-0.07 0.15-0.70
Si (max) 0.05 0.10 0.30 0.30
Cu (max) 0.02 0.02 0.05 0.10
Ni (max) 0.001 0.002 0.003 0.003
Fe (max) 0.03 0.005 0.005 0.005
Others each 0.05 --- -- ---
Others total 0.30 0.30 0.30 0.30
Mg Balance Balance Balance

Balance





Electrochemical Properties of cast magnesium anodes
Item Open-circuit Voltage Close-circuit Voltage Actual capacitance Current efficiency
  (-V) (-V) (A.h/g) (%)
High Potential 1.70-1.75 1.57-1.62 ≥ 1.100 ≥ 50

Low Potential

(AZ63)

1.50-1.55 1.45-1.50 ≥ 1.105 ≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)





5.magnesium anode



Usage:

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)





Company Principle:



Our Belief: Continuous Innovation.

Our Spirit: Sincerity, Unity, Dedicated, Hardworking.

Our Mission: Provide most advanced products & most professional technical solution.



6.Contact us for more information:


 Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email: janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com
