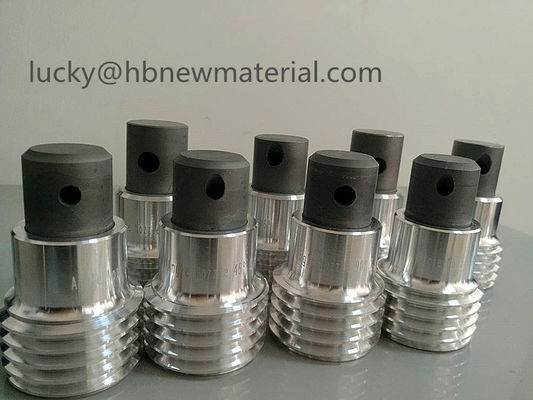

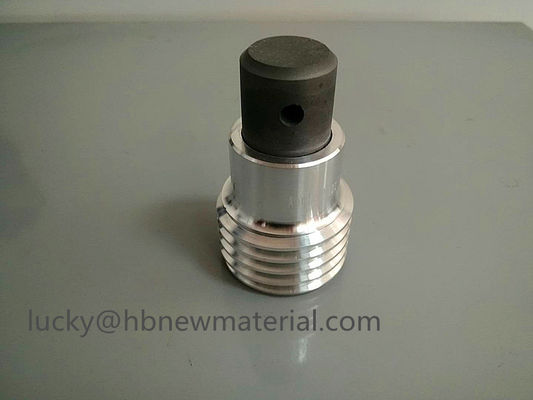

Hot Pressed Boron Carbide Nozzle B4C Angular Type Extremely Hard And Durable

Product Details:
Place of Origin: China
Brand Name: High Broad
Certification: ISO
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: discuss
Packaging Details: Export carton
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 200000 pcs each year
Contact Now

Detail Information

Material: Boron Carbide Service: Customized
Chemical: B4C Type: Angular Nozzle

Product Description



Boron carbide nozzle
Boron carbide ceramic is extremely hard and durable. It is a covalent material commonly used in tank armor, bulletproof vests and engine sabotage powders, as well as numerous industrial applications. Our boron carbide nozzles and inserts will stand up to the test of time because they have a longer life and lower cost per use. We have products available that can outlast tungsten carbide by 3-10 times.With our boron carbide nozzle, you can reduce downtime and maintain efficiency.

Angular nozzle

he angular nozzle is commonly used in the truss and flange back when constructing bridges and towers, as well as in the inner pipeline wall where standard nozzle couldn’t reach. This kind of angle helps lead the abrasive flow and change its direction to clean up the shadow areas. Based on the number of holes, there are three different types: one-hole type, two-hole type and three-hole type. It can also be divided into 45°,90°,and 135°nozzles according to the angles, which is very suitable for sandblasting cleaning in various constructions and different types of machines.



Threaded end connection:



HB-DVA Series 1-1/4″ ,11-1/2 N.P.S.M.



HB-ANGB Series 2″ ,4-1/2 U.N.C.

Series Aperture Length Angle
HB-ANGA/B-3 4.8mm 80mm

45 degree


90 degree


135 degree

HB-ANGA/B-4 6.5mm 80mm
HB-ANGA/B-5 7.9mm 80mm

Hot Pressed Boron Carbide Nozzle B4C Angular Type Extremely Hard And Durable

Sandblasting Nozzles


Estimated Service Life in Hours -Values for comparison only. Actual may vary.
Nozzle Material Steel/Grit Shot Sand Aluminum Oxide
Boron Carbide 1500-2500 750-1500 200-1000
Silicon Carbide 600-1000 400-600 50-100
Tungsten Carbide 500-800 300-400 20-40
Alumina 20-40 10-30 1-4
