Hex Plug 44 " Magnesium Anode , Flexible Anode Rods For Water Heaters

China Hex Plug 44 " Magnesium Anode , Flexible Anode Rods For Water Heaters supplier

Large Image :  Hex Plug 44 " Magnesium Anode , Flexible Anode Rods For Water Heaters

Product Details:

Place of Origin: China
Brand Name: HB
Certification: ISO ASTM
Model Number: Flex 44"

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: depends on order quantity
Packaging Details: in wood case on pallet
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs 15 days
Contact Now
Detailed Product Description
44%22: Magnesium Anode FLEX Npt: NPT 3/4" NPT 1/2 "



Magnesium Flexible anode rod Hex plug 44 " , water heater anode rod



Residental Magnesium Flexible Anode Rod, Hex Plug, 44-Inch



Ultra Flexible segmented sacrificial magnesium anode rodaluminum zinc anode rod



Specification : :

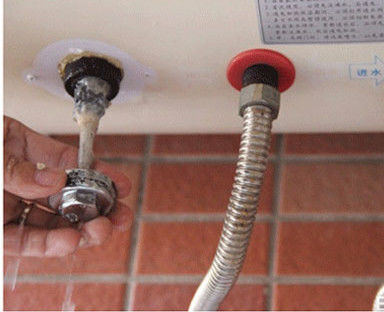

Flexible Magnesium anode / aluminum anode rods are designed for those limited spaces where a straight anode rod will be unable to be inserted into the water heater due to limited access directly above, such as low ceilings, closets, attics, under stairwells or in basements. Just bend the anode rod at its flexible section return it back to straight once inserted into your water heater, boiler, etc.

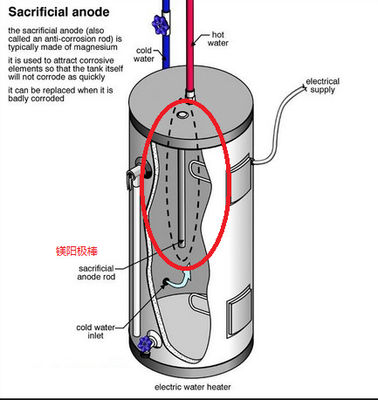

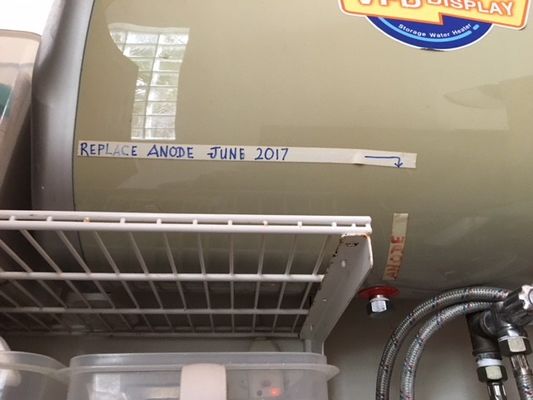

Anode rods are the most important line of defense in preventing corrosion and leaks in your water heater. These devices work because the metal in the rod is sacrificed so the tank does not corrode. As the anode works, the life of the water heater is increased. The anode should be checked and replaced every couple of years.

Application :

Segmented Flexible Magnesium /Aluminum Anodes are usually used in a small diameter anodes requirement,such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. This anode is of the highest quality and will fit most Haier, Rheem, Vulcan, Dux, Rinnai and many others.

Chemical compositions Flexible Aluminum Anode Rods :

Type Al Zn Silicon Fe Sn Others Mg
Aluminum anode Balance 4.0-5.0 0.25 0.25 0.05-0.25 0.15 -

* We can do according to customized size and requirements.



Electrochemical properties of Flexible Aluminum Anode Rods:

Type Open-circuit voltage (-V) Close-circuit voltage (-V)Zn Actual capacitance (A·h/kg) Current efficiency (%)
Aluminum anode 1.10-1.18 1.05-1.12 2400 85

* We can do according to customized size and requirements.





Chemical compositions Flexible Magnesium Anode Rods :

Type Al Zn Mn Fe Cu Ni Si Others Mg
AZ31B 2.5-3.5 0.6-1.4 0.2-1.0 0.005 0.01 0.001 0.1 0.3 Balance
Mg-Mn 0.01 - 0.5-1.3 0.03 0.02 0.001 0.05 0.3 Balance



Electrochemical properties of Flexible Magnesium Rod Anodes:

Type Open-circuit voltage (-V) Close-circuit voltage (-V)Zn Actual capacitance (A·h/g) Current efficiency (%)
AZ31B 1.50-1.55 1.45-1.50 ≥1.105 ≥50
Mg-Mn 1.70-1.75 1.57-1.62 ≥1.100 ≥50

* We can do according to customized size and requirements.
