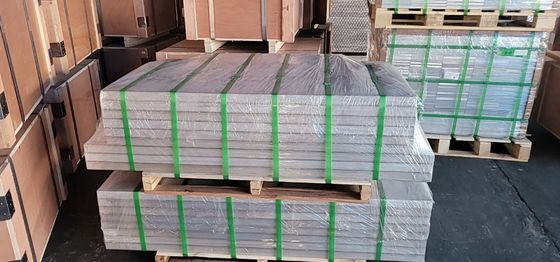

0.020″ To 3″ Thickness Magnesium Alloy Sheet For Shearing / Stamping / Punching / Drilling
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO |
| Model Number: | AZ31B,AZ91D,ZK60,WE43 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 kgs |
|---|---|
| Price: | negotiable |
| Packaging Details: | In carton, on pallet |
| Delivery Time: | 100 kgs: 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100mt/month |
|
Detail Information |
|||
| Product Name: | Magnesium Alloy Plate For CNC Engraving,Embossing,Etching,Stamping | Other Name: | Magnesium Alloy Plate |
|---|---|---|---|
| Material: | Magnesium Alloy Pure Magnesium | Application: | CNC Engraving,Embossing,Etching,Stamping |
| Type: | Hot Roll, Extruded, Cast | Surface: | Without Coating |
| Industrial: | Computer,Printing,Camera,Cellphone | ||
| High Light: | metal sheet plate,magnesium etching plate |
||
Product Description
AZ31B-O Sheet & Plate From 0.020″ to 3″ thickness magnesium alloy plate
Used for:
shearing, stamping, punching, drilling, bending, flame cutting, expanding, swedging, perforating, welding, saw cutting, roll forming, grinding, coating, assembly, packaging, labeling, blanchard grinding, sonic testing & trepanning
Specifications:
Type : AZ31B , AZ91 , Mg 99.9%
Sheet Size Range:
Thickness : 0.05mm, 0.1mm 0.3mm , 0.5 mm, 0.7mm, 1.0mm, 1.5mm , 1.75mm , 2mm
Width x Length: can be anysize.
MECHANICAL PROPERTIES
| Alloy and Temper | Thickness (mm) |
Yield Strength 0.2% offset (MPa) |
Tensile strength (MPa) |
Elongation In 5.65 √A (%) |
| AZ31B O | 0.5 – 1.5 | 125 | 221 | 10 |
| 1.5 – 6.3 | 105 | 221 | 9 | |
| 6.3 - 75 | 105 | 221 | 8 | |
| AZ31B H24 | 0.5 – 6.3 | 200 | 269 | 5 |
| 6.3 -9.5 | 179 | 262 | 7 | |
| 9.5 – 12.7 | 165 | 255 | 8 | |
| 12.7 - 25 | 152 | 248 | 8 | |
| 25- 50 | 138 | 234 | 6 | |
| 50 - 80 | 124 | 234 | 7 | |
| AZ31B H26 | 6.3 - 10 | 186 | 269 | 6 |
| 10 – 12.5 | 179 | 262 | 6 | |
| 12.5 - 20 | 172 | 255 | 5 | |
| 20 – 25 | 159 | 255 | 5 | |
| 25 - 40 | 152 | 241 | 5 | |
| 40 - 50 | 148 | 241 |
5 |
Chemical :
Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance
PHYSICAL PROPERTIES:
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
Applications:
Where is Magnesium used?
- Aerospace, defense and satellite applications where weight reduction is critical
- Electronic components where shock absorbing qualities are crucial
- Automotive/Motor sports applications where weight reduction and strength are required
- Mechanical vibration shakers for test fixtures
Why Magnesium?
- Magnesium is the lightest industrial metal in the world
- One third lighter than aluminum
- Magnesium is as strong as aluminum
- Magnesium is shock absorbing and dampens vibrations
- Magnesium is very machinable
- We supply AZ31, AZ61, AZ80, and ZK60 Alloys, among others
Magnesium is the third-most-commonly-used structural metal, following iron and aluminum.
The main applications of magnesium are, in order: component of aluminum alloys, in die-casting (alloyed with zinc), to remove sulfur in the production of iron and steel, the production of titanium in the Kroll process.
Magnesium, in its purest form, can be compared with aluminum, and is strong and light, so it is used in several high-volume part manufacturing applications, including automotive and truck components.
Magnesium sheet and plate find application in medium strength service at temperatures below 150C. Diverse uses including aircraft fuselage, concrete tools, cell phone, camera, notebook computer cases and textile machinery.
