Continuous Impressed Current Cathodic protection MMO/Ti Linear anodes
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO, DNV,BV |
| Model Number: | ASTM B348 GRADE I/II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 meter |
|---|---|
| Price: | negotiable |
| Packaging Details: | on pallet |
| Delivery Time: | 1FCL: 14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 30000meters/month |
|
Detail Information |
|||
| Application: | LMMO/Ti Linear Anode For Buried Pipelines | Standard: | Continuous MMO Ti Wire Coated Flexible Linear Anodes For Underground Pipeline Cathodic Protection |
|---|---|---|---|
| Shape: | Mixed Metal Oxide Titanium Flexible Anode | Content: | Copper Core MMO/Ti Linear Anode For Cathodic Protection System |
| Type: | Impressed Current C Anode ICCP | ||
| High Light: | sacrificial zinc anodes,aluminum zinc anode |
||
Product Description

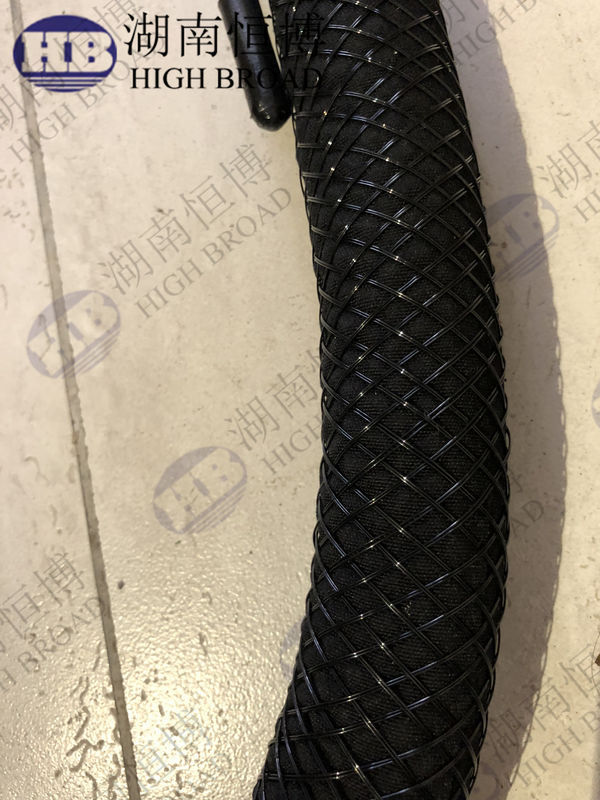

Continuous Linear anodes,Impressed Current Cathodic protection MMO/Ti Linear anodes
Mixed Metal Oxide (MMO) and linear anode systems for storage tank soil side corrosion prevention, have long been established as the go-to anode system for corrosion prevention systems. However, the effectiveness of these anodes
|
|
|
| Diameter of flexible anode | 39+/-2 mm |
| Diameter of MMO/Ti anode wire | >= 1.0 mm |
| Designed service life of anode | >= 25 years |
| Consumption rate of MMO/Ti anode wire ( with backfill materials) | <= 6 mg/A.a |
| Output current |
|
| Thickness of metallic oxide coating | >= 6 g/m2 |
| Resistivity of mixed metallic oxides(Ω/cm) | 10 -5Ω˙cm |
| Contact Resistance at the joints between andoe and cable | <= 1mΩ |
| Resistance of anode | <= 0.007 Ω/m |
| Carbon content of backfill coke powder | >= 98% |
| Resistivity of coke powder | <= 0.55 Ω˙cm |
| Fabric cladding jacket of anode | Resistant to acid/alkaline and chlorine; Permeable |
| External woven mesh | Resistant to abrasion and ambient temperature variation |
| Weight of anode | >= 1.3 kgs/meter |
| Length of each coil | 700 meters or customized |
