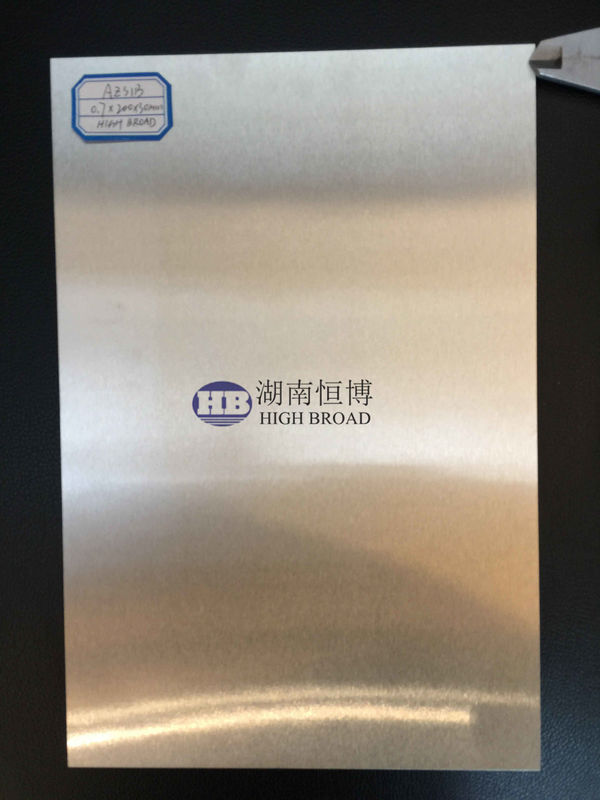

Hot roll Magnesium Etching plate / Magnesium Carving sheet for Cellphone

Hot roll Magnesium Etching plate / Magnesium Carving sheet for Cellphone

Product Details:

Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO
Model Number: AZ31B,AZ91D,ZK60,WE43

Payment & Shipping Terms:

Minimum Order Quantity: 1 kgs
Price: negotiable
Packaging Details: In carton, on pallet
Delivery Time: 100 kgs: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100mt/month
Get Best Price Contact Now

Detail Information

Product Name: High Quality Magnesium Etching Plate/Magnesium Carving Sheet Other Name: Magnesium Alloy Sheet
Material: Magnesium Alloy Application: CNC Engraving,Embossing,Etching,Stamping
Plate Type: Hot Roll, Extruded,Cast Surface: Bare
Industrial Plate: Computer, Printing, Camera, Cellphone
Highlight:

metal sheet plate

,

magnesium etching plate

Product Description

Hot roll Magnesium Etching plate / Magnesium Carving sheet for Cellphone

Specifications

Sheet: Tks: 1 - 6mm; Max. width: 600mm;
Plate: Tks: 6 - 200mm; Max. width: 2500mm;
Max. length: 6000mm

AZ31B Sheet, Plate, Block and coil



AZ31B is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).



SIZE RANGE:

Sheet: thickness from 1mm to 6mm; Max. width is 600mm; Max. length is 6000mm;

Plate: thickness from 6 mm to 200mm; Max. width is 2500mm; Max. length is 6000mm;

Block: We can supply cut-to-size blocks according to customer's requirements.

Coil: thickness from 0.5 to 2.7mm, max. width 240mm;



APPLICATIONS

Sheet and plate in AZ31B find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.

AZ31B is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.

Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.



SPECIFICATIONS

ASTM B90/B90M-07; AMS 4375; AMS 4376; AMS 4377



CHEMICAL COMPOSITION

Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance



PHYSICAL PROPERTIES

Density: 1.78;

Coefficient of thermal expansion: 26.8 x 10-6K-1

Specific heat: 1040 Jkg-1k-1

Thermal conductivity: 76.9Wm-1k-1

Electrical resistivity: 92nΩm

Modulus of elasticity: 45 x 109Pa;

Poissons ratio: 0.35;

Melting range: 566 - 632°C



HEAT TREATMENT

No thermal treatment is available for increasing the strength of this alloy after fabrication.



MECHANICAL PROPERTIES

Alloy and Temper Thickness (mm)

Yield Strength

0.2% offset (MPa)

Tensile strength

(MPa)

Elongation

In 5.65 √A (%)

AZ31B-O 0.5 – 1.5 125 221 10
1.5 – 6.3 105 221 9
6.3 - 75 105 221 8
AZ31B-H24 0.5 – 6.3 200 269 5
6.3 -9.5 179 262 7
9.5 – 12.7 165 255 8
12.7 - 25 152 248 8
25- 50 138 234 6
50 - 80 124 234 7
AZ31B-H26 6.3 - 10 186 269 6
10 – 12.5 179 262 6
12.5 - 20 172 255 5
20 – 25 159 255 5
25 - 40 152 241 5
40 - 50 148 241 5

The sheet and plate shall conform to the tensile requirements in above Table unless other agreement is made between seller and purchaser. Mechanical Properties for sizes and tempers not shown in above Table shall be as agreed upon by seller and purchaser.



OTHER PROPERTIES

Typical Hadness

O temper: 67 Rockwell E;

H24 temper: 83 Rockwell E



WELDABILITY

Excellent weldability with gas shielded arc using AZ61A (preferred) or AZ92A filler rod; post weld stress relief is required to prevent stress corrosion cracking. Resistance welding is excellent.



MACHINING

AZ31B, like all magnesium alloy sheet and plate, machines faster than any other metal. Providing the geometry of the part allows, the limiting factor is the power and speed of the machine rather than the quality of the tool material. The power required per cubic centimeter of metal removed varies from 9 to 14 watts per minute depending on machining operation.



DENT RESISTANCE

Weight for weight, AZ31B-H24 has proven to be superior to competitive materials in its resistance to denting at moderate energy levels.Dent Resistance of 1mm Gauge Sheet (Dent depth in mm from 25mm spherical redius indentor on 350mm span)

  Impact Energy 0.34 J Impact Energy 0.62 J Impact Energy 1.25 J

AZ21B-H24

6061 – T6

3003 – H14

5052 – H34

2024 – T6

SAE 1010 Mild Steel

0.66

0.94

2.24

1.55

0.99

1.09

1.42

1.52

3.23

2.41

1.52

1.70

2.34

2.46

4.90

3.35

2.29

2.67



SURFACE TREATMENT

All the normal chromating, anodizing, plating, and finishing treatment are readily applicable. AZ31B also responds well to plasma electrolytic oxidation finishing
