China Magnesium Anode manufacturer

Aluminium Hull Anodes Sacrificial Anode

Product Details:
Place of Origin: China Aluminum Bracelet Anode for Ballast Tank protect
Brand Name: Magnesium anode , Zinc anode, Aluminum anode for anti-corrosion(engineering project)
Certification: ISO, DNV,GB 4948 , ASTM Aluminum Hull Anode
Model Number: Aluminum Bracelet Anode for Ballast Tank protect
Payment & Shipping Terms:
Minimum Order Quantity: 10 Kilograms
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month

Detail Information

Name: American Standard Aluminium Anode/Al Anode For Sacrificial Anode Material: Anti-corrosion/Cathodic Protection Al-Zn-In Alloy
Type: Magnesium Anode Aluminum Anode Zinc Anode For Ships Usage: Cathodic Protection For Offshore Project, Bridge,, Anti Corrosion
Shape: Aluminum Anodes For Seawater And Offshore Structures Application: Aluminum Anode For Harbour And Offshore Application
Category: Sacrificial Aluminium Anode For Corrosion Control Standard: Aluminum Hull Anode For Ships
Aluminum Hull Anodes: For Use On Hulls Of Ships, Tugs, Barges, Etc., Operating In Seawater

Product Description

Aluminium Hull Anodes / Sacrificial Aluminium Anode For Corrosion Control

Sacrificial Aluminium Anodes are simple and economical that it could be performance under a variety of environmental conditions, after proper installation that Aluminium anodes will performance efficiently and continuously without any attention for CP systems.

With its perfect performances, it could be widely used for the cathodic protection systems of seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, etc.



Aluminum Bracelet Anode

Anode

Weight

Kg/pair

Diameter

mm

Width

mm

Thickness

mm

Steel Core

mm

HM-13

13

819

60

30

5x25

HM-17

17

624

80

30

5x50

HM-26

26

252

250

45

5x50

HM-32

32

385

150

59

5x50

HM-50

50

470

480

25

5x50

HM-68

68

1020

200

35

5x50





Aluminium Hull Anodes Sacrificial Anode

Application:

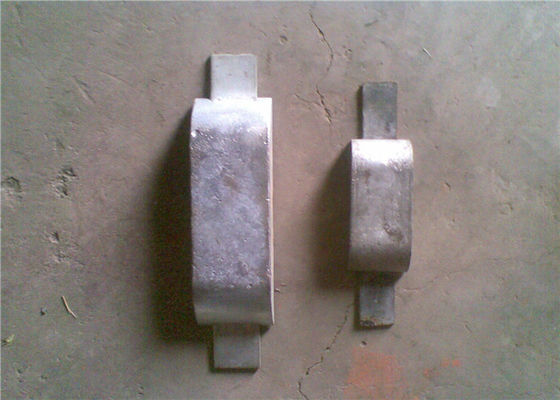

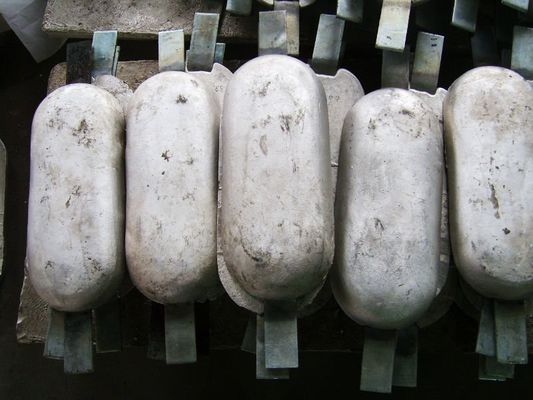

Aluminum Hull Anodes



For use on hulls of ships, tugs, barges, etc., operating in seawater. All anodes are faired or tapered to minimize turbulence. Anodes are produced with mild steel core straps.



Aluminum Ballast Tank Anodes



Anode and core arrangements approved by the American Bureau of Shipping, and Lloyd's Register. Special anode sizes available on request.



Aluminum Pier & Piling Anodes



anodes for seawater applications can be furnished with a wide variety of steel cores



Aluminum Heater Treater Anodes



Special anode sizes available on request

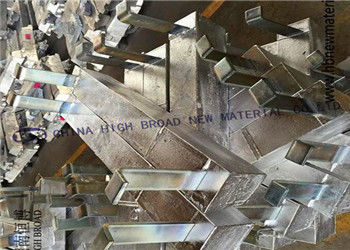

Aluminum Bracelet Anodes



HighBroad has produced all sizes of aluminum bracelets ranging from 11/2" O.D. to 48" O.D. including cast-on bracelet sizes with great success. HighBroad's accomplishment regarding on time deliveries and quality workmanship is due to our competent staff with many years of experience in manufacturing anodes of all types. HighBroad's laboratory is fully equipped with state-of-the-art equipment. All products are tested and inspected prior to shipping. Chemical analyses are run on each heat prior to casting.

Company Brief Introduction:



We are a professional anode supplier over 16 years ,mainly supply:

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* Magnesium anodes ( ASTM-G97)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

     Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

     We can also accept customized anodes with your logo according to your drawing !

Company Principle:



Our Belief:    Continuous Innovation.

Our Spirit:     Sincerity, Unity, Dedicated, Hardworking.

Our Mission: Provide most advanced products & most professional technical solution.
