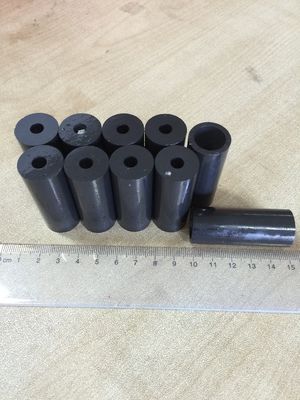

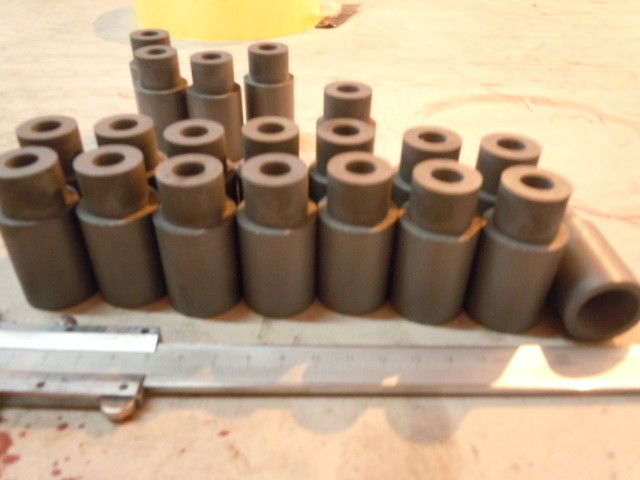

    Hand Tool Parts Type boron carbide nozzle with aluminium jacket

    Product Details:

    Place of Origin: China
    Brand Name: High Broad or OEM
    Certification: ISO
    Model Number: Sand blasting Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiable
    Packaging Details: Each nozzle packed in a plastic tube, then in a carton
    Delivery Time: 200 pieces: 20 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1000 pieces per month
    Get Best Price Contact Now

    Detail Information

    Application: Sandlbast Machine, Shot Gun,Sandblasting Gun,Spray Water, Cleaning Machine Shape: Straight Core,Ventui Type
    Content: Boron Caride,B4C Type: Doule Venturi,single Entrance
    Other Name: Boron Cabide Nozzle Material: Aluminum Alloy
    High Light:

    sandblaster nozzle

    ,

    sand blast nozzle

    Product Description

    Hand Tool Parts Type boron carbide nozzle with aluminium jacket

    Hand Tool Parts Type boron carbide nozzle with aluminium jacket



    Product Introduction:



        High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.





    Material Comparation Chart:

    Item

    Al2O3

    SiC

    B4C

    Density

    3.5g/cm3

    3.1g/cm3

    2.4-2.65g/cm3

    Hardness

    HV1650

    HV2750

    HV3300

    Flexural strength

    290 Mpa

    380 Mpa

    400-650 Mpa

    Compressive strength

    850 Mpa

    3970 Mpa

    4100 Mpa

    Fracture toughness

    4.8 Mpa.m1/2

    4.0 Mpa.m1/2

    4.5-7.0 Mpa.m1/2

    Thermal Conductivity

    20 m0k

    120m0k

    29 m0k



    Specifications:

    Density:          2.40-2.65 g/cm3

    Elastic modulus:   510 Gpa

    Knoop Hardness:  3300

    Flexural strength:  400-650 Mpa

    Compressive strength: 4100 Mpa

    Fracture toughness:   4.5-7.0 Mpa.m1/2

    Coefficient of thermal expansion: 4.5x106

    Thermal Conductivity: 29 m0k

    Maximum permissible service temperature in air: 1500℃





    Regular size list for straight core

    Diameter(mm)

    Diameter (mm)

    Length(mm)

    20

    4

    45

    20

    6

    45

    20

    8

    45

    20

    10

    45



    Diameter(mm)

    Diameter (mm)

    Length(mm)

    20

    6

    60

    20

    8

    60

    20

    10

    60



    Diameter(mm)

    Diameter (mm)

    Length(mm)

    20

    6

    80

    20

    8

    80

    20

    10

    80



    Diameter(mm)

    Diameter (mm)

    Length(mm)

    21

    8

    82

    21

    10

    82

    21

    12

    82



    Other sizes:



    Diameter(mm)

    Diameter (mm)

    Length(mm)

    15

    6

    55

    15

    8

    55

    25

    8

    60

    25

    10

    60

    25

    12

    60

    30

    8

    40

    30

    10

    40

    30

    12

    40

    30

    14

    40



    Venturi type:

    Coarse thread and Fine thread

    Boron carbide nozzle insert with Aluminum or stainless steel jacket

    Entrance width

    Entrance depth

    Bore

    Exit

    Length

    32

    40

    6.5

    10.5

    135

    32

    45

    8.0

    12.0

    150

    32

    48

    95.

    14.0

    165

    32

    52

    11.0

    15.5

    190

    32

    58

    12.5

    17.0

    215

    Entrance width

    Entrance depth

    Bore

    Exit

    Length

    25

    28

    6.5

    10.5

    135

    25

    35

    8.0

    12.0

    150

    25

    38

    95.

    14.0

    165

    25

    42

    11.0

    15.5

    190

    25

    42

    12.5

    17.0

    215

     (mm)









    Benefits Of Using Boron Carbide:

    • Longer Life = Reduces Down Time
    • Lightweight, Reduces User Fatigue (Once you use B4C Nozzles, you won't go back)
    • Made in the China
    • Custom Nozzle & Hot Pressing Boron Carbide Manufacturing Available
