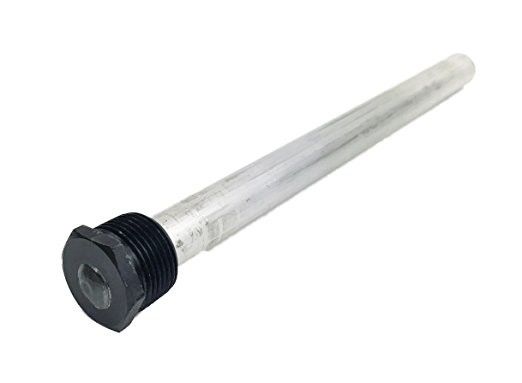

ASTM B 843-1995 az31b 3/4" NPT thread water heater anode rod

Product Details:
Place of Origin: CHINA
Brand Name: HIGH BROAD
Certification: ISO
Model Number: AZ31 WATER HEATER ROD
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Price: to be determined
Packaging Details: mg rod In plywooden case
Delivery Time: 1-14 days
Payment Terms: T/T, Western Union, L/C, D/P
Supply Ability: 5000 tons per year
Contact Now

Detail Information

Material: AZ31 Standard: ASTM B 843-1995 Water Heater Anode Rod
Thread: 3/4'' NPT Thread Usage: Suburban Water Heater

Product Description

ASTM water heater anode rod



Role of the sacrificial anode rod



The anode rod is the most important factor in determining the working life of your water heater.

An anode rod is a steel core wire surrounded with one of three different metals.

These metals include aluminum, magnesium, and zinc.

The rod is screwed into the top of your water heater and protects your water heater from rusting.

When the tank is filled with water the anode rod sacrifices itself to protect the exposed steel of the water heater, through a method called electrolysis. Electrolysis happens when there are two pieces of metal connected inside of water, the process makes the anode rod corrode in place of the exposed steel in your water heater. During this process the more noble (less reactive) metal will corrode over the less (more reactive) noble metal. Aluminum, magnesium, and zinc are all much less noble than steel, meaning they will corrode before the steel, which is why they are used for anode rods.



Application of our magmesium anode rod:



Water Heater,Water container,Pre-polarization of steel structure in seawater,Gas pipe,Anticorrosion of steel and iron structure where high resistant and electrolyte(soil and water) existed.

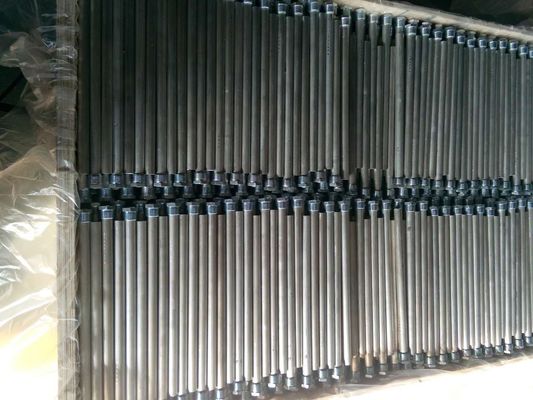

ASTM B 843-1995 az31b 3/4" NPT thread water heater anode rod

Standard of Our water heater anode rod:



High Pure Magnesium
For Suburban Water Heater
9 1/4'' Overall Length
Saves Water Heaters From Harmful Water Contaminants
3/4'' NPT Thread


Type of Our water heater anode rod:



Extruded Magnesium Anode



Chemical composition %

Alloy Al Mn Zn
(max)
Ca
(max)
Si
(max)
Cu
(max)
Ni
(max)
Fe
(max)
Other Imp.
each total
AZ31B 2.5-3.5 0.2-1.0 0.6-1.4 0.04 0.10 0.01 0.001 0.005 --- 0.30
Mg-Mn 0.01 max 0.5-1.3 --- --- --- 0.02 0.001 0.03 0.05 0.30



Specification and Dimension

Diameter(inch) Core eccentric(inch) Core diameter(inch) Straightness(inch/ 2 ft length) Weight(lbs/inch)
0.675-0.020 0.050 0.135 0.060 0.025
0.750-0.020 1/16 0.135 0.040 0.031
0.800-0.020 1/16 0.135 0.040 0.035
0.840-0.020 1/16 0.135 0.040 0.038
0.900-0.020 1/16 0.135 0.040 0.043
1.050-0.020 1/16 0.135 0.040 0.057
1.315-0.020 1/16 0.135 0.040 0.089



Electrochemical Performance

Type

Electrode Potential

-V(vs Cu/CuSO4)

Current Efficiency

%(vs Cu/CuSO4)

Generating Current

(A.h)/kg(vs Cu/CuSO4)

HB- I 1.57 85 1150
HB- I 1.15 85 1150

* We also take customers’ requirements order.

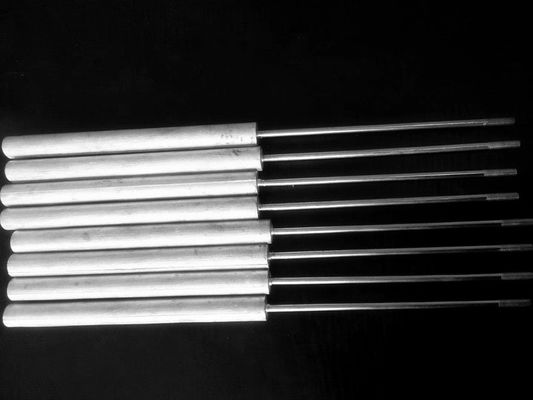

ASTM B 843-1995 az31b 3/4" NPT thread water heater anode rod
