BSPT 1-1,4”,11-1,2NPSM Single Inlet Venturi Nozzle Sand Blasting Nozzle

Product Details:
Place of Origin: China
Brand Name: High Broad
Certification: ISO
Model Number: Straight Bore
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: to be negotiated
Packaging Details: nozzle first in plastic tube then in export carton
Delivery Time: 5-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pieces per month
Contact Now

Detail Information

Material: BC Type: Venturi Nozzle
NPS: 1-1,4”,11-1,2NPSM Single Inlet Venturi Nozzle Sand Blasting Nozzle Jacket: Aluminum Jacket
Process: Hot Press Service: Customized

Product Description

Long venturi nozzle has the structure with the converging section, straight section and diffuser

section. Compared with the straight hole nozzle, it has better function of gas dynamics, strong

improvement in vortex, less pressure loss. Under same pressure, the exit velocity of sandblasting

meterials almost doubles as the speed of voice, resulting in higher momentum of the abrasives,

increased impact energy and added effectiveness of cleaning



Approximate Nozzle Service Life in Hours:

Nozzle material Steel Shot and Grit Expendable Abrasives Alu-oxide Abrasives
Ceramic 20 - 40 10 - 30 1-4
Tungsten Carbide 500 - 800 300 - 400 20-40
Silicon Carbide / Nitride 600 - 1000 400 - 600 50-100
Boron Carbide 1500 - 2500 750 - 1500 200 – 1000



* Estimated values for comparison. Actual service life will vary depending upon
blast pressure, media size and particle shape.

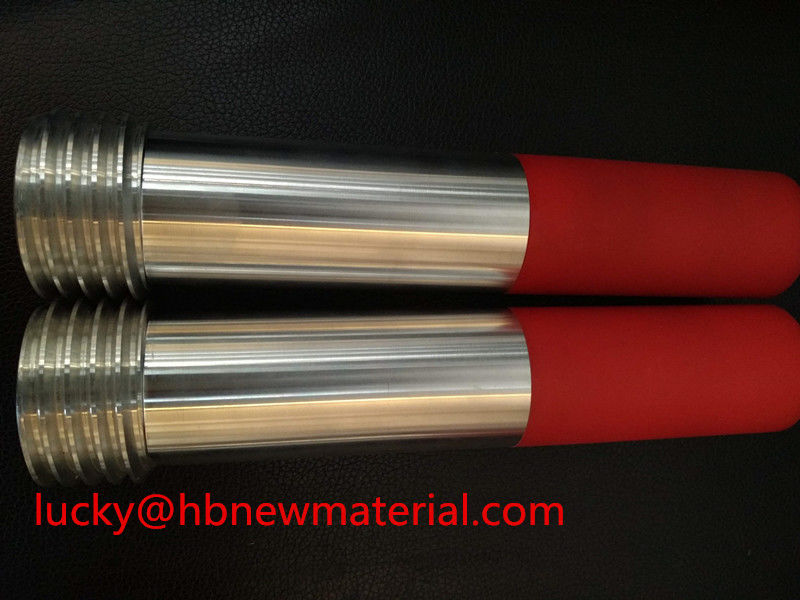

BSPT 1-1,4”,11-1,2NPSM Single Inlet Venturi Nozzle Sand Blasting Nozzle

Size chart as following:

Item I.D(mm) O.D(mm) Length(mm)
HB-WSN-3 3/16"(4.8mm) 1-1/2"(38mm) 140mm
HB-WSN-4 1/4"(6.4mm) 1-1/2"(38mm) 150mm
HB-WSN-5 5/16"(7.9mm) 1-1/2"(38mm) 160mm
HB-WSN-6 3/8"(9.5mm) 1-1/2"(38mm) 175mm
HB-WSN-7 7/16"(11.1mm) 1-1/2"(38mm) 200mm
HB-WSN-8 1/2"(12.7mm) 1-1/2"(38mm) 220mm

Remark: Any other specification may available upon requirement.

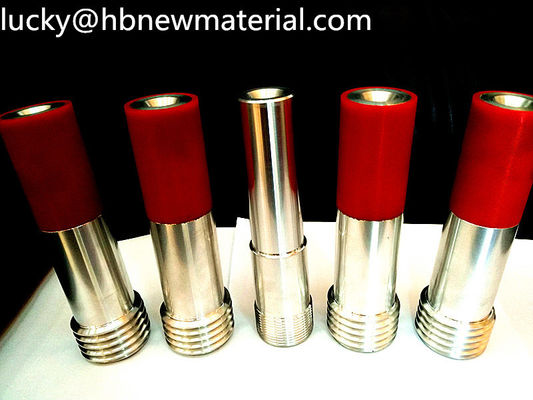

BSPT 1-1,4”,11-1,2NPSM Single Inlet Venturi Nozzle Sand Blasting Nozzle
