TC StickUp Tungsten Carbide Nozzle Aluminum Jacket Steel Jackets Available

Product Details:
Place of Origin: China
Brand Name: High Broad
Certification: ISO
Model Number: StickUp Nozzles
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: To be negotiated
Packaging Details: nozzle first in plastic tube then in export carton
Delivery Time: 5-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 10000 pieces per month
Contact Now

Detail Information

Material: Tungsten Carbide Type: StickUp Nozzles
Jacket: Aluminum Jacket Steel Jackets Available Matching Service: Custom Nozzle
Keyword: Tungsten Carbide (TC) Stick Up Nozzle Density: 14g/cm^3
High Light:

ceramic sandblast nozzle


carbide sandblast nozzle

Product Description

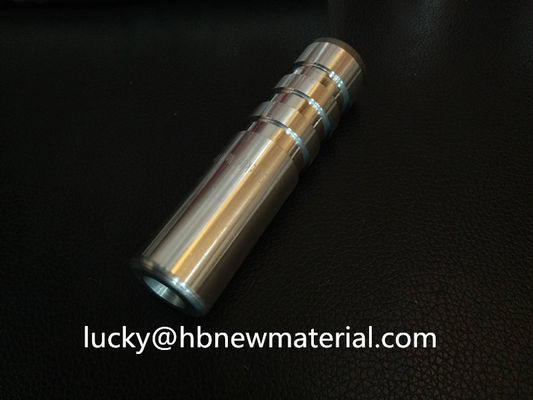

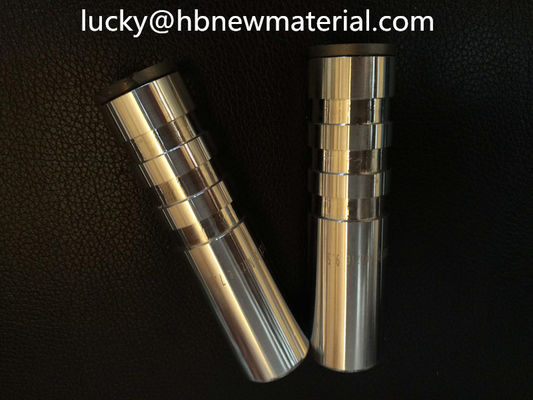

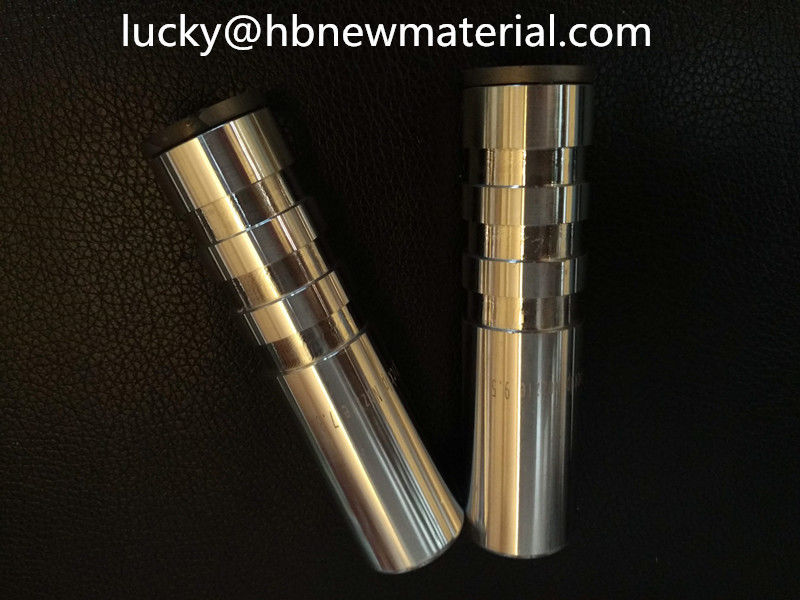

TC StickUp Tungsten Carbide Nozzle Aluminum Jacket Steel Jackets Available


Tungsten Carbide (TC) Stick Up Nozzle
The robust construction and the one-piece liner leads to a longer nozzle life. Furthermore, the stick up system enables an easy installation of the nozzle. Due to the not needed coupling, the nozzle is specialized for hard to reach areas like constructions.



Approximate Nozzle Service Life in Hours:

Nozzle material Steel Shot and Grit Expendable Abrasives Alu-oxide Abrasives
Ceramic 20 - 40 10 - 30 1-4
Tungsten Carbide 500 - 800 300 - 400 20-40
Silicon Carbide / Nitride 600 - 1000 400 - 600 50-100
Boron Carbide 1500 - 2500 750 - 1500 200 – 1000


* Estimated values for comparison. Actual service life will vary depending upon
blast pressure, media size and particle shape.


Size chart as following:

TC-01 Dia.7.8MM Length 100MM
TC-02 Dia.9.5MM Length 100MM

Remark: Any other specification may available upon requirement.
