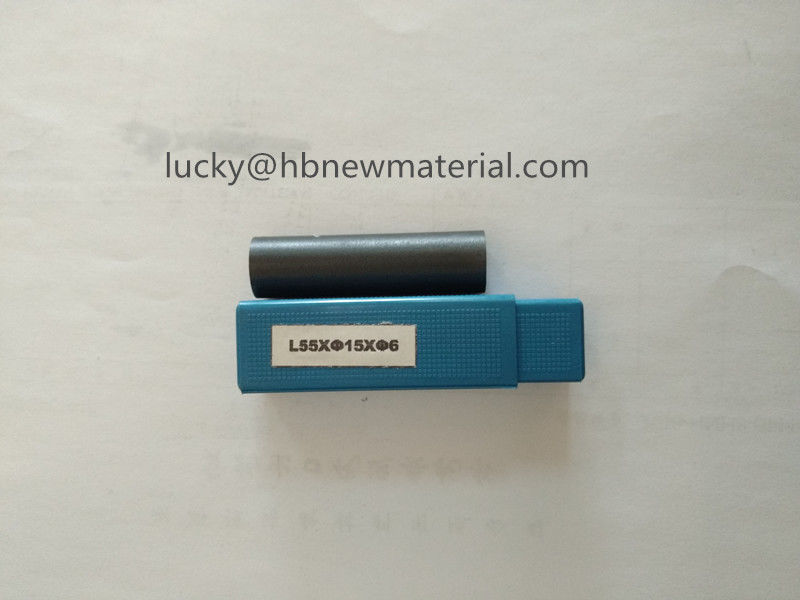

B4c Boron Carbide Nozzle Core Widely Use In Industrial Production Machines

Product Details:
Place of Origin: CHINA
Brand Name: HIGH BROAD
Certification: ISO
Model Number: Straight blasting nozzle
Payment & Shipping Terms:
Minimum Order Quantity: 40 PIECES
Packaging Details: nozzle in plastic tube then in export carton
Payment Terms: T/T, Western Union, PayPal
Contact Now

Detail Information

Material: Boron Carbide Type: Straight Blasting Nozzle
Common Sizes: 35mm, 45mm, 55mm, 60mm, 80mm,82mm Density: 2.48g/cm3
Technology: Hot Pressed Service Life: Working Life Much Longer Than Tradition Material
Inner Dia.: 3.2mm,6mm,8mm,10mm

Product Description

B4c Boron Carbide Nozzle Core Widely Use In Industrial Production Machines



Nozzle Core is widely used in Industrial production machines such as Sandblasting machines, hydraulic cutters, power plant boilers etc.

Advantage:

High temperature resistance, Abrasion-resistance,
light unit weight, working life much longer than tradition material.


Nozzle core is the key consumables of sandblasting industry. According to the different purpose of sand blasting, there are several materials can achieve the best cost-effective, such as boron carbide, silicon carbide, tungsten caibide nozzle core as wear-resistant parts.



Boron Carbide Nozzles and Inserts

1.Density:2.48g/cm3
2.Outter dia:6-110mm inner dia:3.2-90mm
3.Length:5-330mm


Boron carbide nozzle is the best material of the nozzle, high durability, is six times more. we produced tungsten boron carbide raw material, high purity boron carbide nozzle and the product quality is good, low price, complete specifications, including 35mm, 45mm, 55mm, 60mm, 80mm,82mm etc specifications.



Regular size list

Diameter(mm) Diameter (mm) Length(mm)
20 4 35
20 6 35
20 8 35
20 10

35





Diameter(mm)

Diameter (mm) Length(mm)
20 4 45
20 6 45
20 8 45
20 10 45
Diameter(mm) Diameter (mm) Length(mm)
20 6 60
20 8 60
20 10 60
Diameter(mm) Diameter (mm) Length(mm)
20 6 80
20 8 80
20 10 80
Diameter(mm) Diameter (mm) Length(mm)
21 8 82
21 10 82
21 12 82



Other sizes:

Diameter(mm) Diameter (mm) Length(mm)
15 6 55
15 8 55
25 8 60
25 10 60
25 12 60
30 8 40
30 10 40
30 12 40
30 14 40

B4c Boron Carbide Nozzle Core Widely Use In Industrial Production Machines



other hot type:

B4c Boron Carbide Nozzle Core Widely Use In Industrial Production Machines

We can design and produce various shapes and sizes of boron carbide nozzles,contatct email: lucky@hbenwmaterial.com
