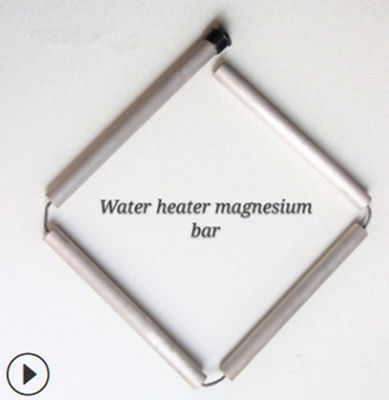

Boiler And Water Heater Anode Rod , Flexible Type Aluminum Zinc Anode Rod

Product Details:
Place of Origin: China
Brand Name: High Broad/OEM
Certification: DNV ASTM ISO CE
Model Number: Magnesium anode rod
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs for Boiler and water heater flexible magnesium anode rod aluminum rod zinc rod magnesium rod
Price: negotiable
Packaging Details: magensium anode rod be packaged in wood box then on pallet with steel bundles
Delivery Time: 1days for 20tons
Payment Terms: D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability: 500mt per month
Contact Now

Detail Information

Product Name: Boiler And Water Heater Flexible Magnesium Anode Rod Aluminum Rod Zinc Rod Magnesium Rod Application: Corrosion Protection,Electric Water Heater Etc
Chemical: Magnesium Rod Content: Magnesium Anode Rod
Commodity: Mg Alloy Ingot Shape: Rod
Sacrificial Anode Rod: High-Performance Large-Diameter Cast Magnesium Alloy Rod AZ63B: Magnesium Anode Rod AZ31,AZ91
Chemical Content: Mg,Mn,Al,Zn,Cu ASTM B 843-1995: OEM Extruded/Cast Magnesium Anode Rod For Water Heaters

Product Description





Boiler and water heater flexible magnesium anode rod aluminum rod zinc rod magnesium rod

Different Types of Anode Rods
Magnesium anode rods are the most common type of anode rod. They are used in places where water is softer. They do not last very long when you have hard water, a couple years at best. This is the main reason water heaters don't last long after the anode rod is eaten up.
Aluminum anode rods are best for places with hard water. The aluminum rod will withstand harder water than any other type. Aluminum may be a health problem, so to be safe you may not want to drink hot water and make sure to run some cold water through the faucet spout before drinking the water. Keep in mind, our sodas come in aluminum cans too.
Zinc anode rods are really just aluminum anode rods with a small portion being zinc. The ratio of zinc to aluminum is 1:10. The reason zinc is added is to combat any sulfur smell coming from the water. A new water heater is never installed with a zinc anode rod already in it, but it is a good upgrade if you experience rotten egg smell coming from your hot water.
The role of the sacrificial anode rod
The anode rod is the most important factor in determining the life of your water heater. An anode rod is a steel core wire surrounded with one of three different metals. These metals include aluminum, magnesium, and zinc. The rod is screwed into the top of your water heater and protects your water heater from rusting. When the tank is filled with water the anode rod sacrifices itself to protect the exposed steel of the water heater, through a method called electrolysis. Electrolysis happens when there are two pieces of metal connected inside of water, the process makes the anode rod corrode in place of the exposed steel in your water heater. During this process the more noble (less reactive) metal will corrode over the less (more reactive) noble metal. Aluminum, magnesium, and zinc are all much less noble than steel, meaning they will corrode before the steel, which is why they are used for anode rods.
Magnesium Rod Anode are produced in a variety of shapes and sizes for use in water ,water container,boiler ,pre-polarization of steel structure in seawater.Gas pipe,Anti-corrosion of steel and iron structure where high resistant and electrolyte existed.

Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Mobile/Whatsapp: +86-139-7515-2932

1.Technology :
Extruded Magnesium Anode
Cast Magnesium Anode
2.Standard: ASTM B 843-1995
3.Features :
Magnesium anode is used in technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial anode materials.


 Chemical Composition

TypeAlloy ElementImpurity Elements(Max)


Anode Dia(mm)Core Dia(mm)ScrewUnit weight(g/cm)
*Customized Size Available
