Magnesium / Aluminum / Zinc Sacrificial Anode For Isolated Installations
Product Details:
| Place of Origin: | China,Hunan |
| Brand Name: | print your logo |
| Certification: | ASTM G-97, ISO, |
| Model Number: | OEM Custom-made |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece if we have stoc, 100 kgs if no stock |
|---|---|
| Price: | negotiable |
| Packaging Details: | On pallet with steel bundles |
| Delivery Time: | 1 FCL:14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 300 Metric Ton/Metric Tons per Month |
|
Detail Information |
|||
| Anode: | Cathodic Protection Sacrificial Aluminum Or Magnesium | AZ63: | AZ63 Casting Anode 17D3 Sacrificial Magnesium Anode For Onshore Platforms |
|---|---|---|---|
| Sacrificial Anode: | Anti-corrosion Sacrificial Packaged Magnesium Anode | Mg Anode: | H1 Magnesium Sacrificial Anodes For Cathodic Protection (CP) System |
| High Light: | ASTM Zinc Sacrificial Anode,Isolated Installations Zinc Sacrificial Anode,H1 Magnesium Sacrificial Anode |
||
Product Description

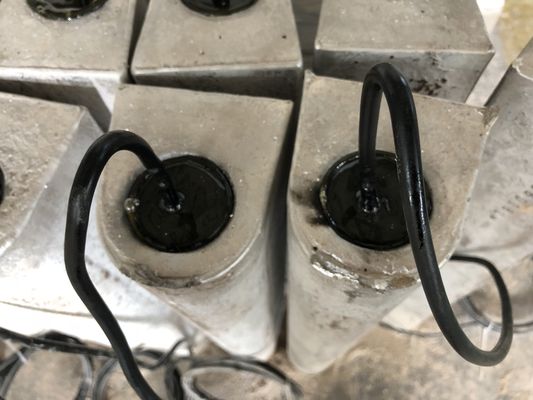

Sacrificial Magnesium Anode/Sacrificial Aluminum Anode / Sacrificial Zinc Anodes For Isolated Installations

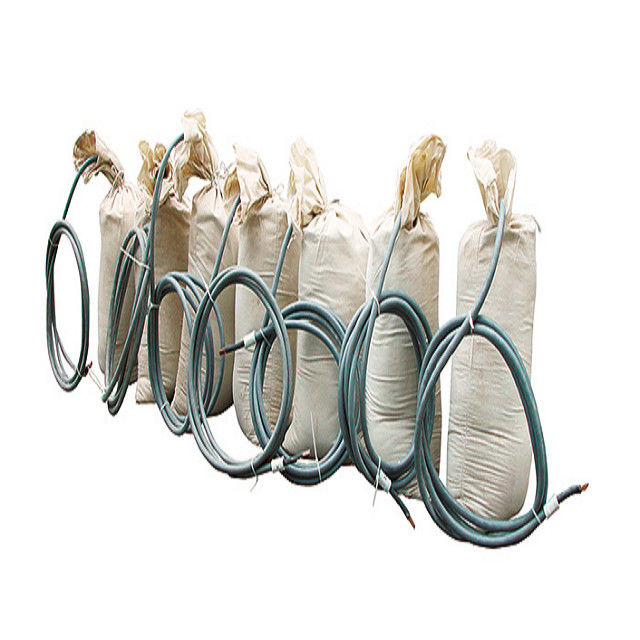

| Pre-packed high potential Magnesium Anode | |
| Material | Magnesium Anode |
| Technology | Casting |
| Dimension & Shape | Different dimension and shape are available, process according to customized design/ drawing |
| Standard | ASTM G-97 SGS |
| Backfill Mixture Composition | Ground Hydrant Gypsum 75%, Powdered Bentonite 20%, Hydratate Sodium Sulphate 5% |
| Price | According to size and quantity |
| Applications | Cathode protection |
| Delivery time | 10-15days |
| Packing | Plastic or paper as inside,plywood case or carton as outside, or according to client's demand |
| MOQ |
MOQ flexible,small sample will be acceptable
|
Applications of Magnesium Anodes for Cathodic Protection (CP) Magnesium has the highest driving voltage of the materials used for sacrificial anodes and is most commonly used onshore (in higher resistivity electrolytes) where the use of zinc and aluminium would be uneconomical. The most common applications are: Temporary CP Systems The high current output of magnesium in seawater assists in the rapid achievement of polarization potential. This approach has been used where the zinc or aluminium system originally installed has failed to provide sufficient current to achieve polarization. Recent system have included magnesium to provide the initial polarization as part of the system design. Temporary protection of land and other pipelines during construction and before the energizing of the impressed current system. The anodes are easily installed within pipe trench as construction proceeds; additional excavation is not required. De‐scaling of tanks. The high potential and consequent hydrogen evolution at the cathode leads to rapid removal or surface scale. External protection of ships; hulls whilst is fresh or brackish water. This often consists of anodes suspended over the vessels’ sides. Permanent CP Systems Land pipelines. Magnesium anodes have a particular effective role in urban areas or where there are other buried services in the immediate vicinity. Service pipes to domestic and commercial premises. For small diameter and short length pipes, the current required is very low and the anode mass is usually between 0.3 and 1.0kg. Two types of anode are in common use. The first type consists of an insert that screws directly into a "blind tee" that is fitted into the service pipe. This is cheap and easy to install but does not allow the performance to be monitored. The second type consists of a small cast or extruded anode that is packaged in the same way as the larger anode types. Connecting the cable via a test point allows for monitoring. · Short pipelines including river crossings. · External surfaces of buried storage tanks, particularly oil tanks in hazardous areas. · External surfaces of caissons in fresh or brackish waters. The higher resistivity of these electrolytes prevents a cost effective protection system using zinc or aluminium anodes. · Internal surfaces of water storage tanks and treatment plants. The deposits are non toxic and magnesium anodes may be used in potable water systems. · Internal surfaces of calorifiers, heat exchangers and condensers. · Protection of "hot spots" on otherwise unprotected pipelines. "Hot Spots" are areas where soil conditions are highly aggressive. · Supplementary protection on pipelines with impressed current CP systems in poorly protected areas, often due to coating
Q.Can I make the Magnesium Alloy Anode sample orders for testing?
A: Yes. It can be ready by one or several items union from us. T/T transfer money for big orders. Samples payment made by West Union or Paypal.
Q.What information will be needed if I want a quotation?
A: Materials contents(Chemical Compositions) and the size of models. Special structures with drawing. Qty and delivery trade items.
Q. Can we visit your company/factory before place the order?
A: Welcome to visit us in China. Hopefully it will be a happy journey here.
Q: How does your factory do regarding quality control?
A: Quality is base of the company life. We working on new materials industrial for more than 20 years.
Q. What do Magnesium sacrificial anodes do?
A. Magnesium anode is used in the technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial materials.
