ASTM Sacrificial High Potential Magnesium Anode Pre Packaged
Product Details:
| Brand Name: | High Broad |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD 5~10/kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000t/month |
|
Detail Information |
|||
| High Light: | ASTM Sacrificial Magnesium Anode,Pre Packaged Magnesium Anode,High Potential Magnesium Anode |
||
|---|---|---|---|
Product Description

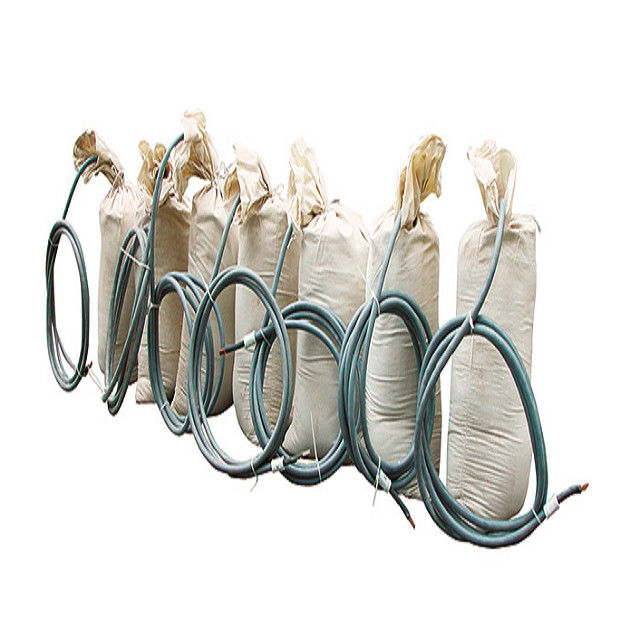

Pre Packaged ASTM Sacrificial High Potential Magnesium Anode
♦ Specifications
High Potential HP Magnesium anode are made from high-purity magnesium, they could produce a higher driving voltage than conventional magnesium anodes, so high potential magnesium anodes are suited for structures buried in soils with resistivities in excess of 2,000 ohm/cm.
We adopt special technology, the anodes have superior electrochemical properties, in practical experience, the actual measured driving potential is between -1.8V to -1.85V, thus provide most powerful protection to the targeted structure. The anodes are consumpted uniformly, thereof the anodes have a longer working life.
Our magnesium anode all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97,It’s available from both M1C( high Potential)or AZ63B(standard Potential)magnesium anode.
♦ Application :
High Potential HP Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.
Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.
♦ Chemical compositions of High Potential HP Casting Magnesium Anode :
| Type |
Al (Max) |
Mn |
Cu (Max) |
Ni (Max) |
Si (Max) |
Fe (Max) |
Single impurity (Max) |
Total Impurity (Max) |
Mg |
| M1C | 0.01 | 0.5-1.3 | 0.005 | 0.001 | 0.05 | 0.01 | 0.05 | 0.3 | Remaining |
♦ Electrochemical properties of High Potential HP Casting Magnesium Anode:
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
| M1C | 1.70-1.75 | 1.58-1.62 | ≥1100 | ≥50 |
* We can do according to customized size and requirements.
♦ Structure & Dimension
* The above specification only are small part of our products list, we have much more specification size, and also special shape, size and chemical composition anodes can be manufactured according request, please contact us for more information.
