Cast Magnesium Anode 32D5 17D3 for Cathodic Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | High Broad |
| Certification: | ISO |
| Model Number: | Magnesium anode |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1MT |
|---|---|
| Price: | TBA |

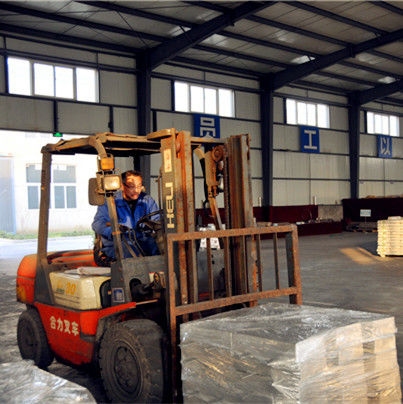

| Packaging Details: | Magnesium anode on pallet with steel bundles |
| Delivery Time: | 1FCL: 10 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000MT each year |
|
Detail Information |
|||
| Material: | Magnesium Anode | Type: | MgMn |
|---|---|---|---|
| Size 1: | 32D5 | Size 2: | 17D3 |
| Other: | Sacrificial Anode | Usage: | Cathodic Protection |
| High Light: | Cast Magnesium Anode 32D5,Cast Magnesium Anode 17D3,Cathodic Protection MgMn Anode |
||
Product Description
Magnesium anodes
Magnesium Anodes are used in the Corrosion Control industry. In a process known as Cathodic Protection, Sacrificial Anodes are connected by a cable to an underground natural gas pipe, an oil or water pipe, a propane tank or other such structure. The anode acts like a battery, giving off a low-voltage electrical current so that, over time, the anode corrodes but the structure that is being protected remains like new. Cathodic Protection using magnesium and other types of anodes prevents costly repairs and leaks. Extruded Magnesium Anodes are used to extend the life of home and commercial water heaters.

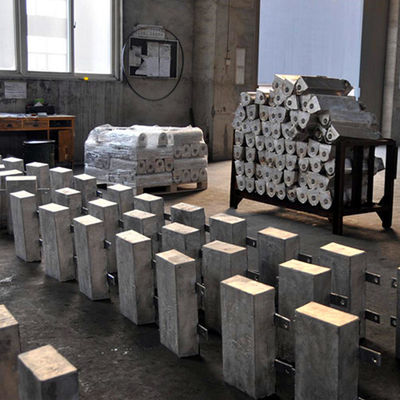

We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.
Specifications
Standard : ASTM G-97
| Chemical compositions of cast magnesium anode (%) | ||||
| Element | High potential | AZ63B | AZ63C | AZ63D |
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
| Electrochemical Properties of cast magnesium anodes | ||||
| Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) | |
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
|
Low Potential (AZ63) |
1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
| Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) | ||||
Application:
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.
