China Magnesium Anode manufacturer

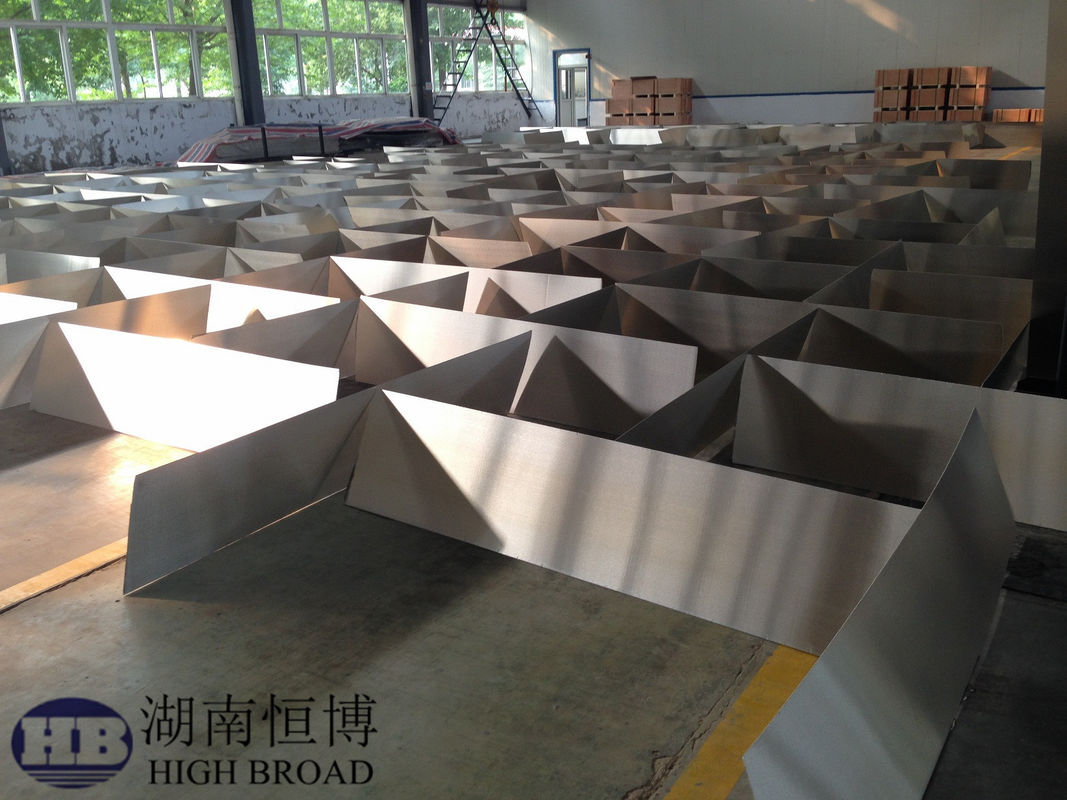

AZ31B H24 Hot rolled / Extruded Magnesium alloy plate for CNC engraving machining

Product Details:
Place of Origin: China
Brand Name: High Broad or OEM
Certification: ISO
Model Number: AZ31B,AZ91D,ZK60,WE43
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: In carton, on pallet
Delivery Time: 100 kgs: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100mt/month
Contact Now

Detail Information

Product Name: Magnesium Alloy Plate For CNC Engraving,Embossing,Etching,Stamping Other Name: Magnesium Alloy Sheet
Material: Magnesium Alloy Application: CNC Engraving,Embossing,Etching,Stamping
Type: Hot Roll, Extruded,Cast Surface: Without Coating
Industrial: Computer,Printing,Camera,Cellphone

Product Description

AZ31B H24 Hot rolled / Extruded Magnesium alloy plate for CNC engraving machining





Specifications:



Commodity :   Magnesium alloy plate/Magnesium alloy Sheet

Type          :     AZ31B

Sheet Size  Range:

Thickness :  0.04mm , 0.05mm, 0.1mm, 0.3mm , 0.5 mm, 0.7mm, 1.0mm, 1.5mm
                     2mm, 3mm, 4mm , 5mm, 6mm, 7mm, 10mm,
                     and more

Width x Length:  can be anysize.
Regular size:      610 x 914mm


MECHANICAL PROPERTIES

Alloy and Temper Thickness (mm)

Yield Strength

0.2% offset (MPa)

Tensile strength

(MPa)

Elongation

In 5.65 √A (%)

AZ31B O 0.5 – 1.5 125 221 10
1.5 – 6.3 105 221 9
6.3 - 75 105 221 8
AZ31B H24 0.5 – 6.3 200 269 5
6.3 -9.5 179 262 7
9.5 – 12.7 165 255 8
12.7 - 25 152 248 8
25- 50 138 234 6
50 - 80 124 234 7
AZ31B H26 6.3 - 10 186 269 6
10 – 12.5 179 262 6
12.5 - 20 172 255 5
20 – 25 159 255 5
25 - 40 152 241 5
40 - 50 148 241

5





Chemical :



Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance

PHYSICAL PROPERTIES:

Density: 1.78

Coefficient of thermal expansion: 26.8 x 10-6K-1

Specific heat: 1040 Jkg-1k-1

Thermal conductivity: 76.9Wm-1k-1

Electrical resistivity: 92nΩm

Modulus of elasticity: 45 x 109Pa

Poissons ratio: 0.35

Melting range: 566 - 632°C




Applications:





Magnesium Sheet / plate in AZ31B find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C products (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.



AZ31B is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.

Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.





(1) The plate is rolled out by flat rolls, so it is simple and easy to change the product specifications, and the adjustment operation is convenient, and it is easy to realize full computer control and automatic production.

(2) The shape of the plate is simple, it can be produced in rolls, and it is the largest in the national economy, so it is necessary and can achieve high-speed continuous rolling production.

(3) Due to the large aspect ratio and surface area, the rolling pressure in production is very large, reaching millions to tens of millions of Newtons. Therefore, the rolling mill equipment is complicated and large, and the product has wide and thick dimensional accuracy and shape and The control of surface quality has also become very difficult and complicated.
