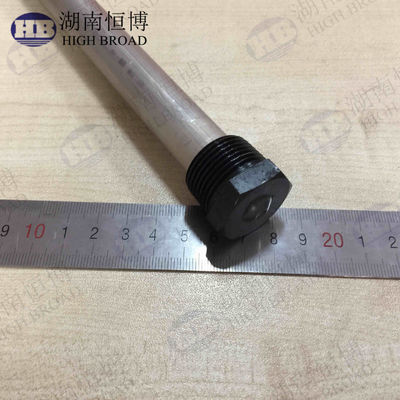

• AZ31B AZ63C Magnesium Alloy electric anode for a water heaters
AZ31B AZ63C Magnesium Alloy electric anode for a water heaters

AZ31B AZ63C Magnesium Alloy electric anode for a water heaters

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ASTM G-97, ISO, DNV
Model Number: OEM Custom-made high quality

Payment & Shipping Terms:

Minimum Order Quantity: 1 PIECE
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Get Best Price Contact Now

Detail Information

Name: Cast Magnesium Anode Rod For Heater Treater AZ63C Material: AZ63C AZ63
Application: Solar Water Tank Oil Tank Storage Tank Condenser Shape: M6/M8
Ability: Available In Several Configurations, With Welded Or Unwelded Hex-Head And Anode Outlet Devices Certificate: ISO9001:2008 Magnesium Anode Rod For Water Heater
High Light:

water heater anode replacement

,

water heater anode rod replacement

Product Description

 AZ31B AZ63C Magnesium Alloy electric anode for a water heaters



Casting Magnesium Anode Specification and Dimension (All the dimensions in mm)

Type ΦD1 ΦD2 Lg Lg1 Lg dme
A-1 M8 26 120 10 90
A-2 M8 26 160 10 90
A-3 M8 26 186 10 90
A-4 M8 26 252 10 90
A-5 M8 26 322 10 90
B-1 M6 26 130 6.5 100
B-2 M6 26 250 6.5 100
B-3 M6 16 200 6.5 100
B-4 M6 16 250 6.5 100
B-5 M6 16 400 6.5 100
C-1 M8 33 500 10 90
C-2 M8 33 286 10 90



Type Length Dia Insert Type Length Dia Insert
13-115 115 13 M4 18-100 100 18 M4
14-150 150 14 M6 18-140 140 18 M6
14-180 180 14 M6 18-200 200 18 M6
14-215 215 14 M6 18-300 300 18 M6
14-275 275 14 M6 18-400 400 18 M6
16--90 90 16 M4 20-130 130 20 M6
16-100 100 16 M6 20-200 200 20 M6
16-155 155 16 M6 25-150 150 25 M6
16-165 165 16 M6 25-180 180 25 M6
16-210 210 16 M6 25-300 300 25 M8
16-250 250 16 M6 28-110 110 28 M6
16-340 340 16 M6 28-150 150 28 M6
16-400 400 16 M6 28-200 200 28 M8



Notes:

- Magnesium density around 1.74g /cm³;

- Contact Resistance between core and magnesium <0.1Ω;

- Galvanized steel core;

- Norm EN NF 12438/Norm RoHS

- We can also customize anodes according to client’s requirements.
