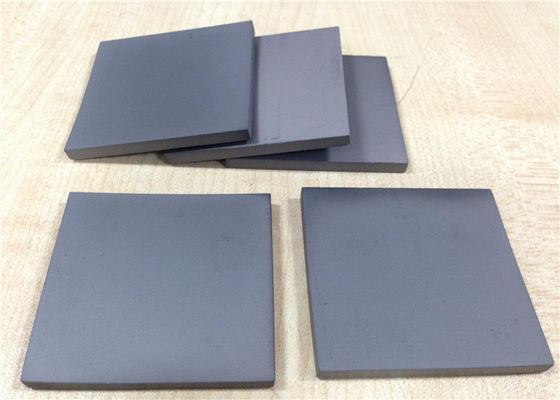

E1012-305 Military Security Bulletproof Ceramic Plates
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO |
| Model Number: | Silicon Carbide |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 kgs |
|---|---|
| Price: | negotiable |
| Packaging Details: | in carton |
| Delivery Time: | 10 mt: 14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100mt per month |
|
Detail Information |
|||
| Product Name: | E1012-305 Military Security Bulletproof Plate | Grade: | NIJ III, NIJ IV,Bulletproof Ceramic Plates/SIC Bulletproof Ceramic Plates |
|---|---|---|---|
| Application: | Bulletproof, Ballastic | Shape: | Squre,hexongal,rectangular, Round Bulletproof Sic |
| Content: | Silicon Carbide | Other Name: | Bulletproof Ceramic Tiles |
| Material: | SIC Silicon Carbide Bulletproof Plate | ||
| Highlight: | silicon carbide tiles,bulletproof ceramic plates |
||
Product Description
E1012-305 Military Security Bulletproof Plates , Bulletproof Ceramic Plates
Bulletproof Sic /B4C Widely used in heavy armored protection in planes/vehicles/ships, and high-class physical protection.
Material Comparation Chart:
|
Item |
Al2O3 |
SiC |
B4C |
|
Density |
3.5g/cm3 |
3.1g/cm3 |
2.4-2.65g/cm3 |
|
Hardness |
HV1650 |
HV2750 |
HV3300 |
|
Flexural strength |
290 Mpa |
380 Mpa |
400-650 Mpa |
|
Compressive strength |
850 Mpa |
3970 Mpa |
4100 Mpa |
|
Fracture toughness |
4.8 Mpa.m1/2 |
4.0 Mpa.m1/2 |
4.5-7.0 Mpa.m1/2 |
|
Thermal Conductivity |
20 m0k |
120m0k |
29 m0k |
Specifications:
|
Density: 2.40-2.65 g/cm3 Elastic modulus: 510 Gpa Knoop Hardness: 3300 Flexural strength: 400-650 Mpa Compressive strength: 4100 Mpa Fracture toughness: 4.5-7.0 Mpa.m1/2 Coefficient of thermal expansion: 4.5x106 Thermal Conductivity: 29 m0k Maximum permissible service temperature in air: 1500℃ |
E1012-305 Military Security Bulletproof Plate
