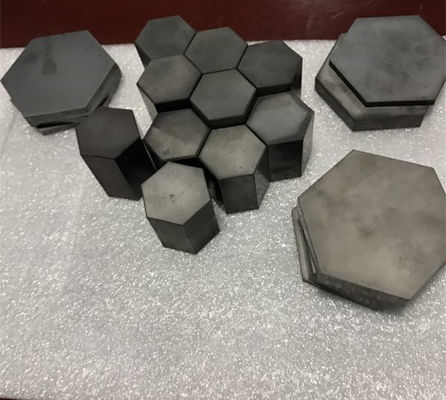

Silicon Carbide Bulletproof Plate with High Bending Strength and Corrosion Resistance for NIJ IV Standard Body Armor
Product Details:
| Place of Origin: | China |
| Brand Name: | high broad |
| Certification: | ISO |
| Model Number: | silicon carbide SiC bulletproof ceramic body armor plate,silicon carbide bulletproof plate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 kilograms of silicon carbide SiC bulletproof ceramic body armor plate,silicon carbide bulletproof plate |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed in cartons |
| Delivery Time: | 10 tons:14Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability: | 100 MT per month |
|
Detail Information |
|||
| Density: | 3.1g/cm3 | Hardness: | HV2750 |
|---|---|---|---|
| Flexural Strength: | 380 Mpa | Compressive Strength: | 3970 Mpa |
| Fracture Toughness: | 4.0 Mpa.m1/2 | Thermal Conductivity: | 120m0k |
| Highlight: | silicon carbide tiles,ceramic body armor plate |
||
Product Description
Silicon Carbide SiC Bulletproof Ceramic Body Armor Plate High Bending Strength
Silicon Carbide SiC Bulletproof Ceramic Body Armor Plate
- High temperature tolerance
- Wear resistance
- Corrosion resistance
- High bending strength
Silicon Carbide Bulletproof Plate Features
Silicon Carbide Plate has superior characteristics such as wear resistance, corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing, and long service life.
Material Properties Comparison
| Item | Al2O3 | SiC | B4C |
|---|---|---|---|
| Density | 3.5g/cm³ | 3.1g/cm³ | 2.4-2.65g/cm³ |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture toughness | 4.8 Mpa.m¹/² | 4.0 Mpa.m¹/² | 4.5-7.0 Mpa.m¹/² |
| Thermal Conductivity | 20 m0k | 120 m0k | 29 m0k |
| Coefficient of thermal expansion | 7.2x10⁶ | 4x10⁶ | 4.5x10⁶ |
Available Sizes - Hexagon Shape
| SW (mm) | T (mm) |
|---|---|
| 20 | 2 |
| 20 | 3 |
| 20 | 4 |
| 20 | 5 |
| 20 | 6 |
| 20 | 7 |
| 20 | 8 |
| 20 | 9 |
| 20 | 10 |
| 30 | 2 |
| 30 | 3 |
| 30 | 4 |
| 30 | 5 |
| 30 | 6 |
| 30 | 7 |
| 30 | 8 |
| 30 | 9 |
| 30 | 10 |
| 40 | 2 |
| 40 | 3 |
| 40 | 4 |
| 40 | 5 |
| 40 | 6 |
| 40 | 7 |
| 40 | 8 |
| 40 | 9 |
| 40 | 10 |
| 40 | 20 |
| 40 | 30 |
| 40 | 40 |
| 40 | 50 |
| 40 | 60 |
Available Sizes - Square or Rectangular Shape
| Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|
| 50 | 50 | 2 |
| 50 | 50 | 3 |
| 50 | 50 | 4 |
| 50 | 50 | 5 |
| 50 | 50 | 6 |
| 50 | 50 | 7 |
| 50 | 50 | 8 |
| 50 | 50 | 9 |
| 50 | 50 | 10 |
| 50 | 50 | 20 |
