NIJ IV Standard Silicon Carbide Body Armor Plate with High Temperature Tolerance and Wear Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | high broad |
| Certification: | ISO |
| Model Number: | silicon carbide bulletproof plate |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 kilograms of High-grade protective Army use silicon carbide SiC bulletproof ceramic body armor plate |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed in cartons |
| Delivery Time: | 10 tons:14Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability: | 100 MT per month |
|
Detail Information |
|||
| Density: | 3.1g/cm3 | Hardness: | HV2750 |
|---|---|---|---|
| Flexural Strength: | 380 Mpa | Compressive Strength: | 3970 Mpa |
| Fracture Toughness: | 4.0 Mpa.m1/2 | Thermal Conductivity: | 120m0k |
| Highlight: | ballistic ceramic tile,Ballistic Armour Plates |
||
Product Description
Silicon Carbide Sic Bulletproof Ceramic Body Armor Plate Security Army Use
Product Overview
Silicon Carbide Sic Bulletproof Ceramic Body Armor Plate - High-grade protective solution for army and security applications.
- High temperature tolerance
- Wear resistance
- Corrosion resistance
- High bending strength
Key Features
Silicon Carbide Plate offers superior characteristics including wear resistance, corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing, and long service life.
Material Comparison
| Item | Al2O3 | SiC | B4C |
|---|---|---|---|
| Density | 3.5g/cm3 | 3.1g/cm3 | 2.4-2.65g/cm3 |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture toughness | 4.8 Mpa.m1/2 | 4.0 Mpa.m1/2 | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity | 20 m0k | 120 m0k | 29 m0k |
| Coefficient of thermal expansion | 7.2x106 | 4x106 | 4.5x106 |
Available Sizes - Hexagon Shape
| SW (mm) | T (mm) |
|---|---|
| 20 | 2 |
| 20 | 3 |
| 20 | 4 |
| 20 | 5 |
| 20 | 6 |
| 20 | 7 |
| 20 | 8 |
| 20 | 9 |
| 20 | 10 |
| 30 | 2 |
| 30 | 3 |
| 30 | 4 |
| 30 | 5 |
| 30 | 6 |
| 30 | 7 |
| 30 | 8 |
| 30 | 9 |
| 30 | 10 |
| 40 | 2 |
| 40 | 3 |
| 40 | 4 |
| 40 | 5 |
| 40 | 6 |
| 40 | 7 |
| 40 | 8 |
| 40 | 9 |
| 40 | 10 |
| 40 | 20 |
| 40 | 30 |
| 40 | 40 |
| 40 | 50 |
| 40 | 60 |
Available Sizes - Square/Rectangular Shape
| Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|
| 50 | 50 | 2 |
| 50 | 50 | 3 |
| 50 | 50 | 4 |
| 50 | 50 | 5 |
| 50 | 50 | 6 |
| 50 | 50 | 7 |
| 50 | 50 | 8 |
| 50 | 50 | 9 |
| 50 | 50 | 10 |
| 50 | 50 | 20 |

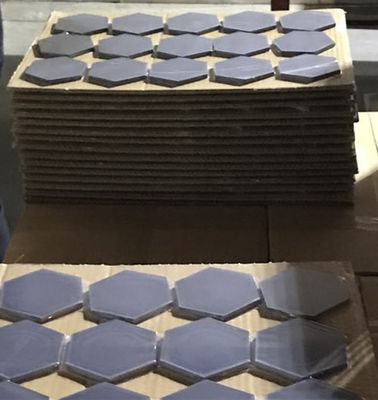

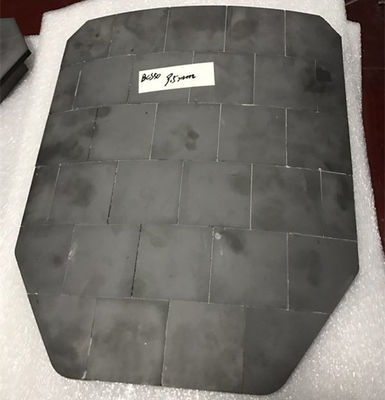

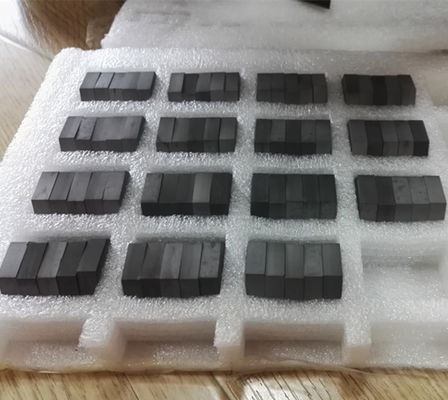

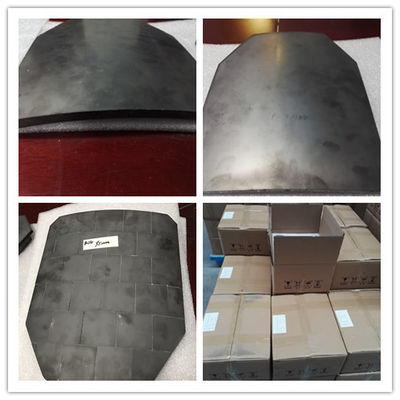

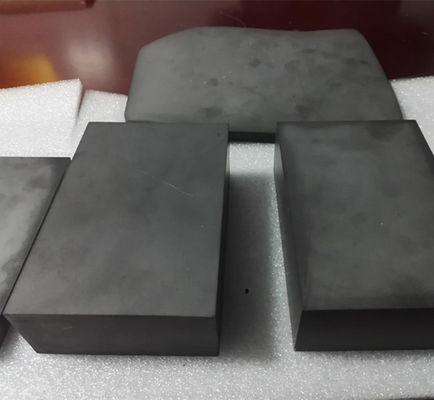

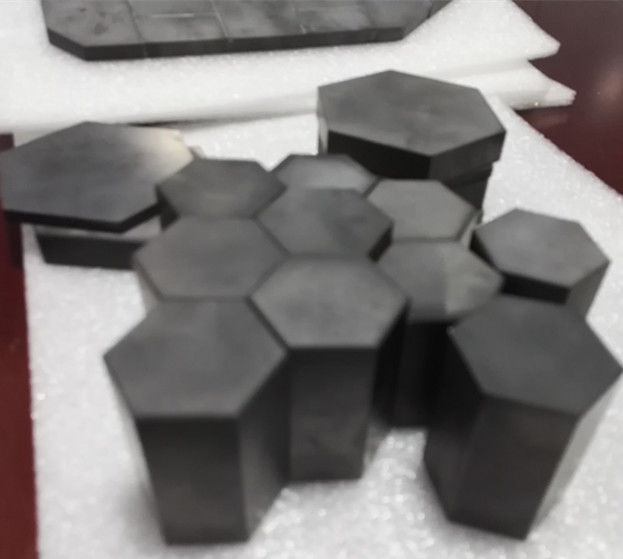

Product Images
