Silicon Carbide Body Armor Plate with NIJ IV Standard High Temperature Tolerance and Wear Resistance

Product Details:

Place of Origin: China
Brand Name: high broad
Certification: ISO
Model Number: silicon carbide bulletproof plate
Document: SIC Ballistic Armor Tiles-P...ad.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 10 kilograms of High-grade protective Army use silicon carbide SiC bulletproof ceramic body armor plate
Price: negotiable
Packaging Details: Packed in cartons
Delivery Time: 10 tons:14Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100 MT per month
Get Best Price Contact Now

Detail Information
Density: 3.1g/cm3 Hardness: HV2750
Flexural Strength: 380 Mpa Compressive Strength: 3970 Mpa
Fracture Toughness: 4.0 Mpa.m1/2 Thermal Conductivity: 120m0k
Highlight:

ballistic ceramic tile

,

Ballistic Armour Plates

Product Description


Silicon Carbide Sic Bulletproof Ceramic Body Armor Plate High-grade protective Army Use


silicon carbide

1. High temperature tolerance

2. Wear risistance

3. Corrosion resistance

4. High bending strength

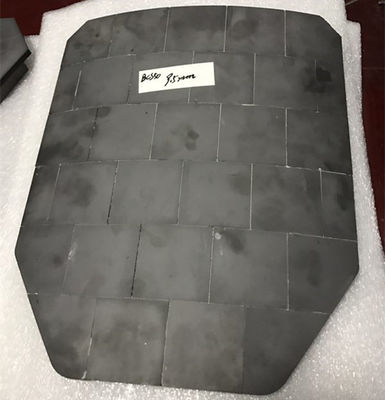

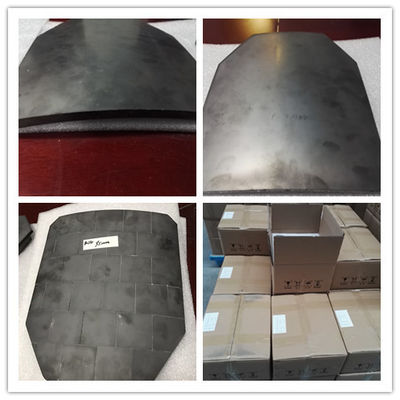

Silicon Carbide Bulletproof PLATE, bulletproof ceramic plates features:

Silicon Carbide Plate has superior characteristic such as wear resistance, corrosion resistance,

high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time service life.



Item Al2O3 SiC B4C
Density 3.5g/cm3 3.1g/cm3 2.4-2.65g/cm3
Hardness HV1650 HV2750 HV3300
Flexural strength 290 Mpa 380 Mpa 400-650 Mpa
Compressive strength 850 Mpa 3970 Mpa 4100 Mpa
Fracture toughness 4.8 Mpa.m1/2 4.0 Mpa.m1/2 4.5-7.0 Mpa.m1/2
Thermal Conductivity 20 m0k 120m0k 29 m0k
Coefficient of thermal expansion 7.2x106 4x106 4.5x106

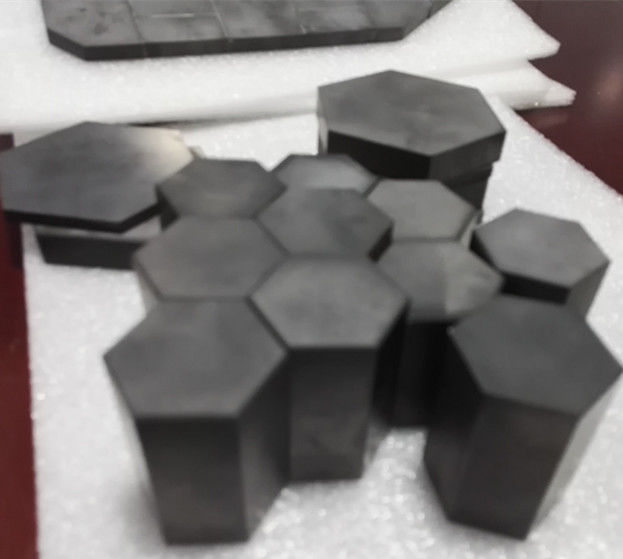

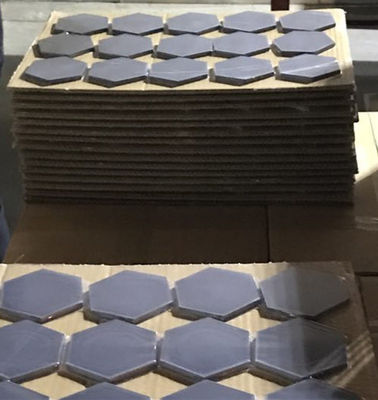

Hexagon shape

 SW(mm) T (mm)
20 2
20 3
20 4
20 5
20 6
20 7
20 8
20 9
20 10






Hexagon shape

 SW(mm) T (mm)
30 2
30 3
30 4
30 5
30 6
20 7
30 8
30 9
30 10








Hexagon shape

 SW(mm) T (mm)
40 2
40 3
40 4
40 5
40 6
40 7
40 8
40 9
40 10
40 20
40 30
40 40
40 50
40 60

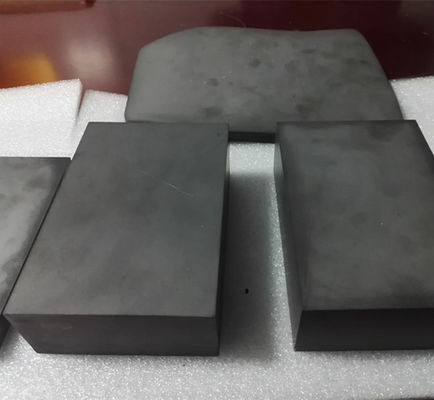

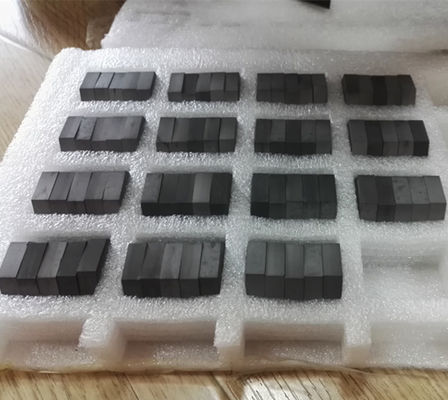

Square or Rectangular shape

 Width (mm) Length (mm) Thickness (mm)
50 50 2
50 50 3
50 50 4
50 50 5
50 50 6
50 50 7
50 50 8
50 50 9
50 50 10
50 50 20




Sic bulletproof plate.jpgSIC bulletproof plate5.jpg


sic plate factory.jpgsic bulletproof plate54.jpg
