Durable MMO Coated Titanium Flexible Anode for Cathodic Protection with Corrosion Resistance and Customized Size
Product Details:
| Place of Origin: | China |
| Brand Name: | print buyer logo |
| Certification: | ISO, DNV,BV |
| Model Number: | ASTM B348 GRADE I/II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 meters |
|---|---|
| Price: | negotiable |
| Packaging Details: | on pallet |
| Delivery Time: | 1FCL: 14 days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,,Paypal |
| Supply Ability: | 30000meters/month |
|
Detail Information |
|||
| Material: | Titanium Grade 1; Mixed Metal Oxide Coating | Outer Dia.: | 38-40mm |
|---|---|---|---|
| MMO/Ti Wire Dia: | 1.5mm | 3mm | Current Output Max: | 300-1500mA/m |
| Current Density: | 8A/m2 | Anode Weight: | 1.3-1.6Kg/m |
| Highlight: | mg anode,magnesium sacrificial anode |
||
Product Description

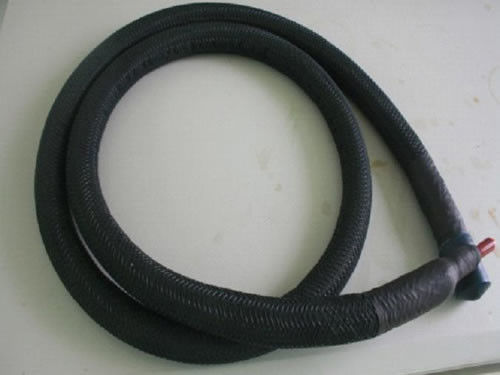

- Product: MMO Flexible Anode for Cathodic Protection
- Material: Titanium Grade 1; Mixed Metal Oxide coating
- Finish: Rolling, Thermal treatment, Electro-deposition
- Size: Customized size
- Standard: NACE Standard
- Characteristics: Strong, stylish, durable, corrosion-resistant
| Property | Specification 1 | Specification 2 |
|---|---|---|
| Outer Dia. | 38-40mm | 38-40mm |
| MMO /Ti wire Dia | 1.5mm | 3mm |
| Current output max | 300-1500mA/m | 300-1500mA/m |
| Current density | 8A/m² | 8A/m² |
| Designed life | 40 year | 40 year |
| Contact resistance | ≤0.0009Ω | ≤0.0009Ω |
| Anode weight | 1.3-1.6Kg/m | 1.3-1.6Kg/m |
| Length per roll | 500M, 1000M | 500M, 1000M |
We are a professional anode supplier with over 16 years of experience, specializing in:
- Zinc anodes (ASTM B418-95 US MILL 18001K)
- Al-Zn-In anodes (GAIII)
- Magnesium anodes (ASTM-G97)
- High silicon cast iron anodes (ASTM-A518-3, BS1591)
Our anodes are shipped worldwide, with approximately 5000 metric tons supplied annually to North America, Asia, and other regions. Our products undergo regular independent third-party testing in the USA to maintain continuous high quality. Our plant owns raw material resources, enabling us to offer competitive pricing and excellent service.
We also accept customized anode orders with your logo according to your specifications.
