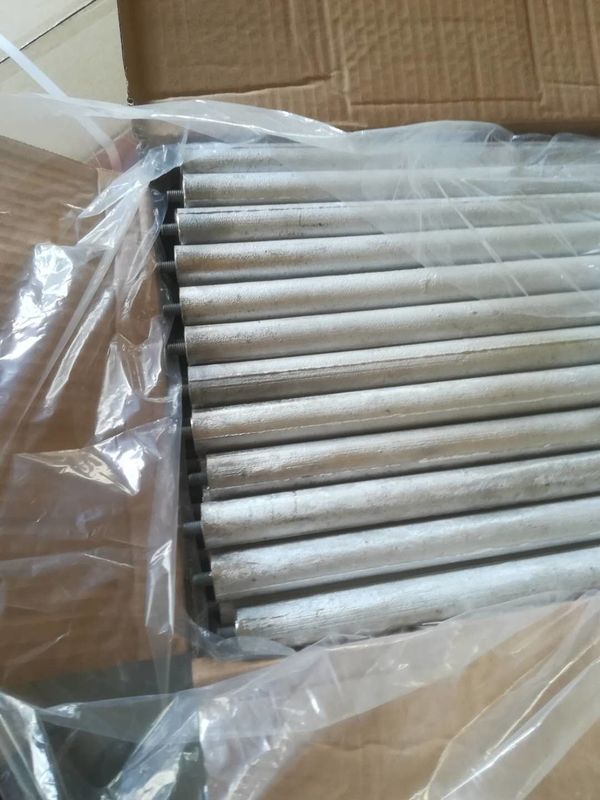

Casting AZ63 Magnesium Anode Rod For Water Heater , Hot Water Heater Anode Dia 26*365mm
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad/OEM |
| Certification: | DNV ASTM ISO CE |
| Model Number: | Magnesium anode rod |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1kg for Casting AZ63 Magnesium Anode Rod for Water Heater Dia 26*365mm |
|---|---|
| Price: | negotiable |
| Packaging Details: | magensium anode rod be packaged in wood box then on pallet with steel bundles |
| Delivery Time: | 1days for 20tons |
| Payment Terms: | D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc |
| Supply Ability: | 500mt per month |
|
Detail Information |
|||
| Product Name: | Casting AZ63 Magnesium Anode Rod For Water Heater Dia 26*365mm | Application: | Corrosion Protection,Electric Water Heater Etc |
|---|---|---|---|
| Chemical: | Magnesium Rod | Content: | Magnesium Anode Rod |
| Commodity: | Mg Alloy Ingot | Shape: | Rod |
| Sacrificial Anode Rod: | High-Performance Large-Diameter Cast Magnesium Alloy Rod | AZ63B: | Magnesium Anode Rod AZ31,AZ91 |
| Chemical Content: | Mg,Mn,Al,Zn,Cu | ASTM B 843-1995: | OEM Extruded/Cast Magnesium Anode Rod For Water Heaters |
| High Light: | water heater anode replacement,water heater anode rod replacement |
||
Product Description
Casting AZ63 Magnesium Anode Rod for Water Heater Dia 26*365mm
China Magnesium anode manufacturer
AZ63 Casting Magnesium anode rod with M8 or M6 steel core
Magnesium Rod Anode are produced in a variety of shapes and sizes for use in water ,water container,boiler ,pre-polarization of steel structure in seawater.Gas pipe,Anti-corrosion of steel and iron structure where high resistant and electrolyte existed.
♦ Application
Casting Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. It has properties of softing water, de-dirt residual ,en-longing the working life of container.
♦ Specifications
Casting Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters, boilers, water storage tanks, heat plumbing, gas stations CP systems. It is the important component part with only one purpose to protect metal tank from corrosion.We can supply the the casting Magnesium anode rod with different diameter and length.
Most popular and standard diameter in 14mm, 16mm, 18mm, 20mm, 21mm, 22mm, 24mm, 26mm, 28mm, 30mm,33mm, etc.
The inside screw can be in M4, M5, M6, M8, M10,M12,etc.
Jane Hu(Ms)
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Mobile/Whatsapp: +86-139-7515-2932
1.Technology :
Extruded Magnesium Anode
Cast Magnesium Anode
2.Standard: ASTM B 843-1995
3.Features :
Magnesium anode is used in technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial anode materials.
Chemical Composition
| Type | Alloy Element | Impurity Elements(Max) | ||||||||
| Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
| Each | Total | |||||||||
| MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
| MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
Dimensions
| Anode Dia(mm) | Core Dia(mm) | Screw | Unit weight(g/cm) |
| φ13.97 | Φ2.0 | NPT-ASMT/BSP/G/R | 2.83 |
| Φ19.05 | Φ3.4 | NPTASMT/BSP/G/R | 5.66 |
| Φ21.34 | Φ3.4 | NPT-ASMT/BSP/G/R | 6.85 |
| Φ26.67 | Φ3.4 | NPT-ASMT/BSP/G/R | 10.42 |
| Φ33.40 | Φ3.4 | NPT-ASMT/BSP/G/R | 16.08 |
| Φ39.65 | Φ4.8 | NPT-ASMT/BSP/G/R | 23.07 |
| Φ51.40 | Φ4.8 | NPT-ASMT/BSP/G/R | 37.96 |
| *Customized Size Available | |||
magnesium anode
Usage:
(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
We are dealing with Magnesium Anodes more than ten years. As a professional producer & supplier in the market, we have good relationship with various customers all over the world(North America,Europe,Korea,Middle East). Basis on our stable quality and good service, we have achieved good reputation among our customers for our good contractual reliability and delivery performance no matter the market is going up or down.
We can supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys.The size range from 3D3 to 48D5 and 60-pound anodes.Round High Potential one –pound Anodes are also available,as are all sizes of Extruded Anodes and Magnesium Ribbon.We can also produce the goods as per your requirement even such as the Large-tonnage Magnesium Sacrificial Anodes. The producing and testing process is strictly as per the DOW Chemical company(U.S.A.) and China SYJ19-86 standard.Capacity is 3000mt/year.
Besides,we also supply Aluminum/Zinc Anodes etc.which are widely used in Cathodic Protection.
