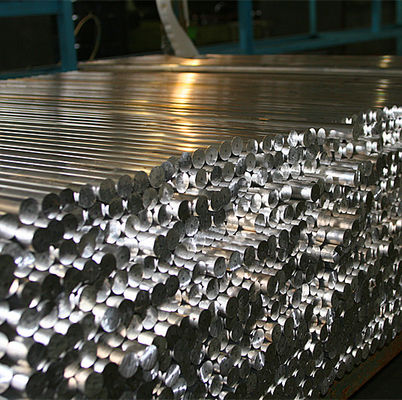

America Standard Extruded Magnesium Anodes for Home And Commercial Water Heaters
Product Details:
Place of Origin: | China |
Brand Name: | HIGH BROAD |
Certification: | ISO |
Model Number: | Magnesium anode rod |
Payment & Shipping Terms:
Minimum Order Quantity: | 100kgs |
---|---|
Price: | TBA |
Packaging Details: | Magnesium anode rod in plywooden case for export |
Delivery Time: | 1 FCL: 14 Days |
Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Supply Ability: | 5000mt / Year |
Detail Information |
|||
Material: | Magnesium | Standard: | America Standard |
---|---|---|---|
Name: | Magnesium Anode Rods | Usage: | For Use In RV Water Heaters |
Application: | Corrosion Protection | Keywords: | Water Heater Anode Rod |
Screw Cap: | Galvanized Or Stainless,copper,etc.or Without Caps | ||
High Light: | America Standard Extruded Magnesium Anodes,Home Extruded Magnesium Anodes,Rv Water Heater Magnesium Anode Rods |
Product Description
America Standard Extruded Magnesium Anodes Are Used To Extend The Life Of Home And Commercial Water Heaters

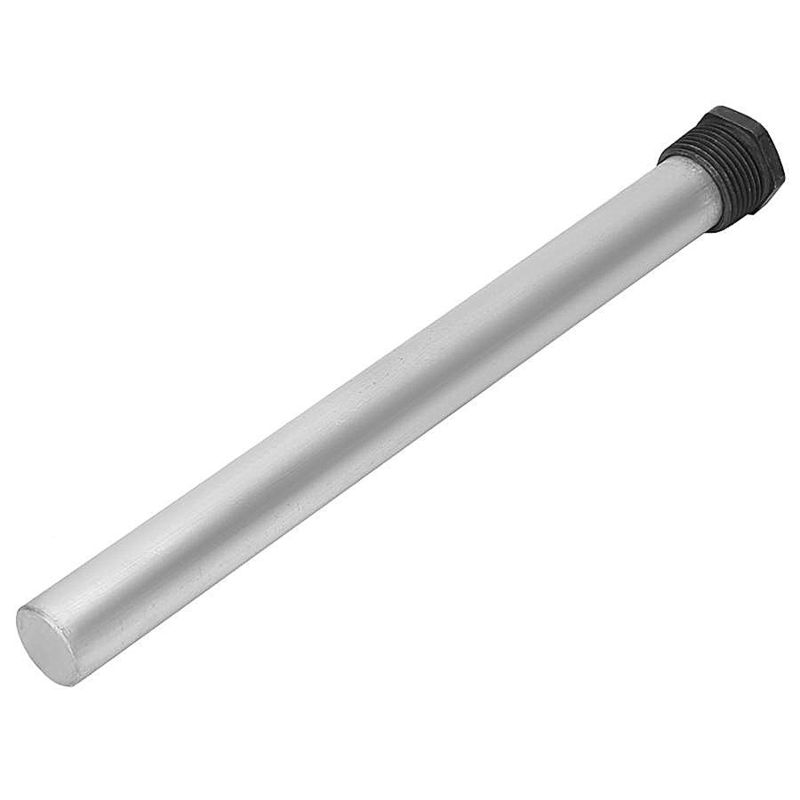

Cathodic Protection Magnesium Anode Rod for Solar or Electric Water Heater
Specifications
Casting Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters, boilers, water storage tanks, heat plumbing, gas stations CP systems. It is the important component part with only one purpose to protect metal tank from corrosion.We can supply the the casting Magnesium anode rod with different diameter and length.
Most popular and standard diameter in 14mm, 16mm, 18mm, 20mm, 21mm, 22mm, 24mm, 26mm, 28mm, 30mm,33mm, etc.
The inside screw can be in M4, M5, M6, M8, M10,M12,etc.
Application
Casting Magnesium Anodes are usually used in a small diameter anodes requirement, such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. It has properties of softing water, de-dirt residual ,en-longing the working life of container.
Chemical compositions Casting Magnesium Rod Anodes
Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
AZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | 0.003 | 0.02 | 0.001 | 0.08 | 0.3 | Balance |
MgAlZn | 5.0-7.0 | 2.0-4.0 | 0.2-1.0 | 0.02 | 0.05 | 0.002 | 0.3 | 0.3 | Balance |
Electrochemical properties of Casting Magnesium Rod Anodes
Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
AZ63 | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
*We can do according to customized size and requirements.
