Extruded Magnesium Rod AZ31B Magnesium Sacrificial Alloys Round Anode Rod
Product Details:
Place of Origin: | CHINA |
Brand Name: | HIGH BROAD |
Certification: | ISO |
Model Number: | water heater anode rods |
Payment & Shipping Terms:
Minimum Order Quantity: | 500 kg |
---|---|
Price: | TBA |
Packaging Details: | Mg rod in plywooden case for export |
Delivery Time: | 1 FCL: 14 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000MT/Year |
Detail Information |
|||
Material: | Water Heater Anode Rods | Type: | AZ31B |
---|---|---|---|
Keywords: | Factory Direct Supply AZ31B Magnesium Sacrificial Alloys Round Anode Rod | Other Name: | Magnesium Anode Rods |
Other Type 1: | AZ63 | Other Type 2: | MgMn |
High Light: | Extruded Magnesium Rod,Alloys Magnesium Rod,AZ31B Magnesium |
Product Description

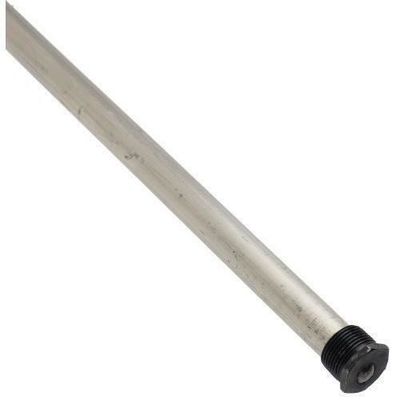

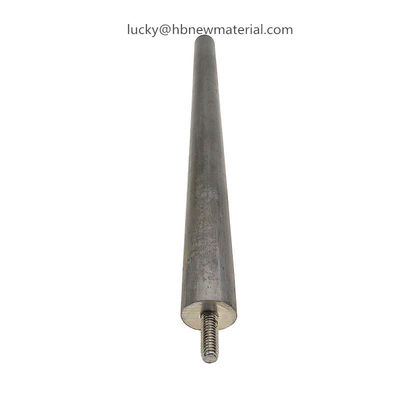

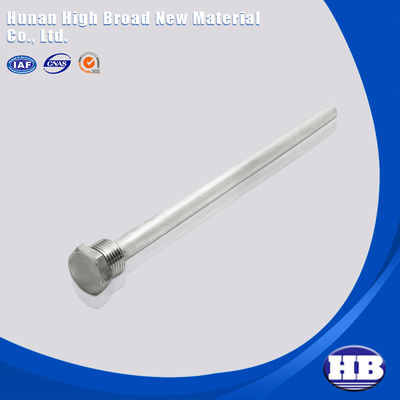

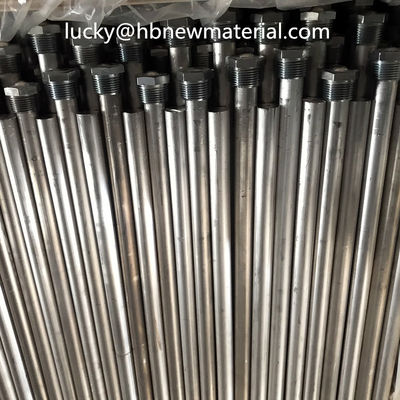

Magnesium anode rod for water heater, or sacrificial anode is the important component part, for protect metal tank from corrosion. Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.
We can supply various extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31,AZ63 alloy) and Alumnium Alloy. Our extruded anodes are widely suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.
Specification:
Alloy | AZ31B | Mg-Mn | Aluminum | |
Chemical Composition |
Aluminum | 2.50-3.50% | 0.01% Max | Balance |
Manganese | 0.20-1.00% | 0.50-1.30% | - - | |
Zinc | 0.60-1.40% | - - | 4.00-5.00% Max | |
Calcium | 0.04% Max | - - | - - | |
Silicon | 0.10% Max | - - | 0.25% Max | |
Copper | 0.01% Max | 0.02% Max | - - | |
Nickel | 0.001% Max | 0.001% Max | - - | |
Fe | 0.005% Max | 0.03% Max | 0.25% Max | |
Sn | -- | - - | 0.05-0.25% Max | |
Other purity(each) | -- | 0.05% max | - - | |
Total purity | 0.30% Max | 0.30% Max | 0.15% Max | |
Remaining | Magnesium | Magnesium |
Dimension and Weight
Diameter(inch) | Core eccentric(inch) | Core diameter(inch) |
Straightness (inch/2 ft length) |
Weight(lbs/inch) |
Magnesium Extruded rod | ||||
0.0675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
Aluminum Extruded rod | ||||
0.576-0.020 | 0.050 | 0.135 | 0.060 | 0.038 |
0.750-0.020 | 1/16 | 0.135 | 0.050 | 0.048 |
Remark: Above size is common, customized service available !
