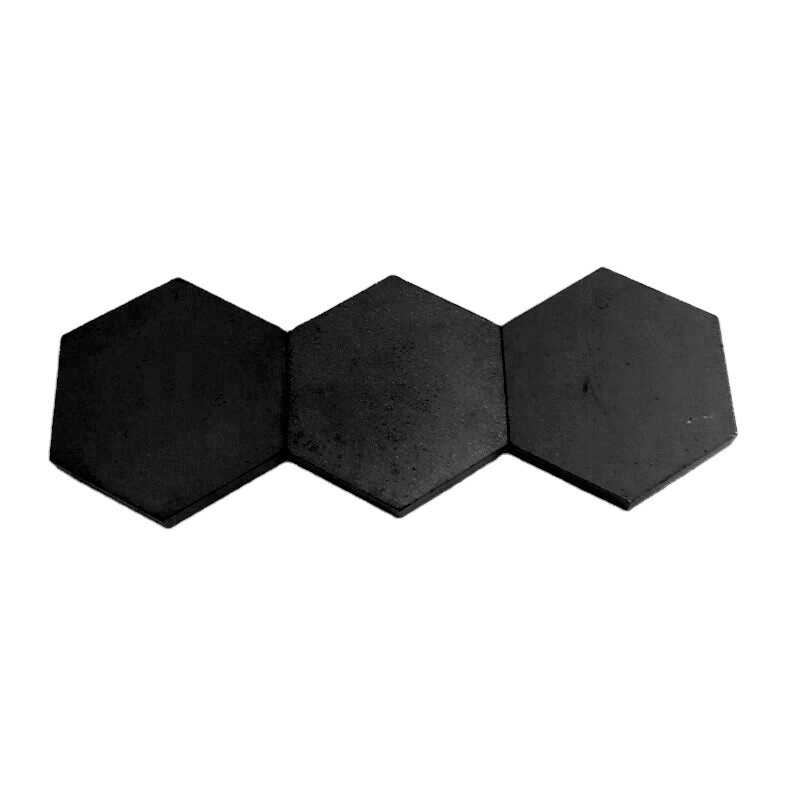

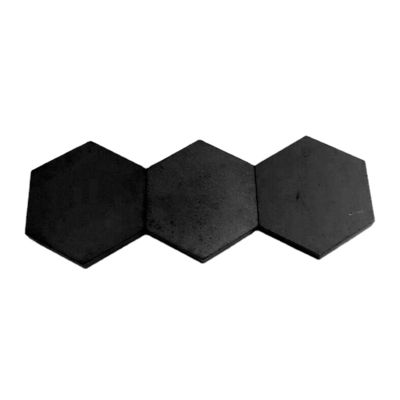

Corrosion Resistant Silicon Carbide Tiles with High Thermal Conductivity and Customizable Thickness for Industrial Ceramics
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | high broad |
| Model Number: | sic tiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $35-40 |
|
Detail Information |
|||
| Chemical Composition: | Si C | Material: | SiC |
|---|---|---|---|
| Shape: | Hexagon Tiles | Density: | 2.46g/cm3 |
| Size: | 50x50 Or Others | Thickness: | 3mm,4mm,5mm,6mm,7mm,8mm |
| Grade: | Boron Carbide, Silicon Carbide | Hardness: | HV2750 |
| Flexural Strength: | 380 Mpa | Compressive Strength: | 3970 Mpa |
| Fracture Toughness: | 4.0 Mpa.m1/2 | Thermal Conductivity: | 120m0k |
| Thermal Expansion: | 4x10 6 | Hexagon SW: | 20mm,30mm,40mm |
| Square Dimensions: | 50x50mm | ||
| Highlight: | Corrosion Resistant Silicon Carbide Tiles,High Thermal Conductivity SIC Tiles,Customizable Thickness Ceramic Armor Plates |
||
Product Description
Silicon Carbide Tiles SIC
Product Description
Commodity: Silicon carbide plate
Main application: Industrial Ceramics
| Item | Al2O3 | SiC | B4C |
|---|---|---|---|
| Density | 3.5g/cm3 | 3.1g/cm3 | 2.4-2.65g/cm3 |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture toughness | 4.8 Mpa.m1/2 | 4.0 Mpa.m1/2 | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity | 20 m0k | 120m0k | 29 m0k |
| Coefficient of thermal expansion | 7.2x10 6 | 4x10 6 | 4.5x10 6 |
Hexagon Shape Specifications
| SW (mm) | T (mm) |
|---|---|
| 20 | 2 |
| 20 | 3 |
| 20 | 4 |
| 20 | 5 |
| 20 | 6 |
| 20 | 7 |
| 20 | 8 |
| 20 | 9 |
| 20 | 10 |
| SW (mm) | T (mm) |
|---|---|
| 30 | 2 |
| 30 | 3 |
| 30 | 4 |
| 30 | 5 |
| 30 | 6 |
| 30 | 7 |
| 30 | 8 |
| 30 | 9 |
| 30 | 10 |
| SW (mm) | T (mm) |
|---|---|
| 40 | 2 |
| 40 | 3 |
| 40 | 4 |
| 40 | 5 |
| 40 | 6 |
| 40 | 7 |
| 40 | 8 |
| 40 | 9 |
| 40 | 10 |
| 40 | 20 |
| 40 | 30 |
| 40 | 40 |
| 40 | 50 |
| 40 | 60 |
Square/Rectangular Shape Specifications
| Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|
| 50 | 50 | 2 |
| 50 | 50 | 3 |
| 50 | 50 | 4 |
| 50 | 50 | 5 |
| 50 | 50 | 6 |
| 50 | 50 | 7 |
| 50 | 50 | 8 |
| 50 | 50 | 9 |
| 50 | 50 | 10 |
| 50 | 50 | 20 |
Company Introduction
China Hunan High Broad was established in year 2006. We devote ourselves to researching, developing, producing and selling of New Materials. The sales office is located in Changsha, China. Our goods are widely applied in high-tech field such as aerospace, machine manufacturing, electrommunication, etc. Our products are accepted and recognized by clients worldwide including Europe, America, East Asia etc.
Our technical team have leading design and R&D ability, we can supply high quality & stable products, and also provide the technical solution during your producing and processing.
We took a part in many R&D projects in colleges and universities, and started strategic cooperation with many companies in China and overseas.
Believe we are the top choose to become your best partner.
Sales Office
Company Culture
Our Belief: Continuous Innovation
Our Spirit: Sincerity, Unity, Dedicated, Hardworking
Our Mission: Provide most advanced products & most professional technical solution.
Certification
We also produce B4C boron carbide ceramic plates
Want to Know more details about this product
