High Strength Boron Carbide Ceramic Tiles B4C Tiles Square 100x100mm with 3-8mm Thickness and 2.4-2.65g/cm3 Density
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | high broad |
| Model Number: | b4c |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | US$125-150 |
|
Detail Information |
|||
| Chemical Composition: | B4C | Material: | Boron Carbide Ceramic |
|---|---|---|---|
| Shape: | Square 100x100mm | Density: | 2.4-2.65g/cm3 |
| Hardness: | HV3300 | Flexural Strength: | 400-650 Mpa |
| Compressive Strength: | 4100 Mpa | Fracture Toughness: | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity: | 29 M0k | Thermal Expansion: | 4.5x10 6 |
| Size: | 50x50 Or 100x100 Mm | Thickness: | 3mm,4mm,5mm,6mm,7mm,8mm |
| Grade: | Pure Carbide | Hexagon SW: | 20mm,30mm,40mm |
| Hexagon T: | 2mm To 60mm | ||
| Highlight: | Square 100x100mm Boron Carbide Ceramic Tiles,3-8mm Thickness B4C Tiles,2.4-2.65g/cm3 Density Hexagonal Boron Carbide Tiles |
||
Product Description

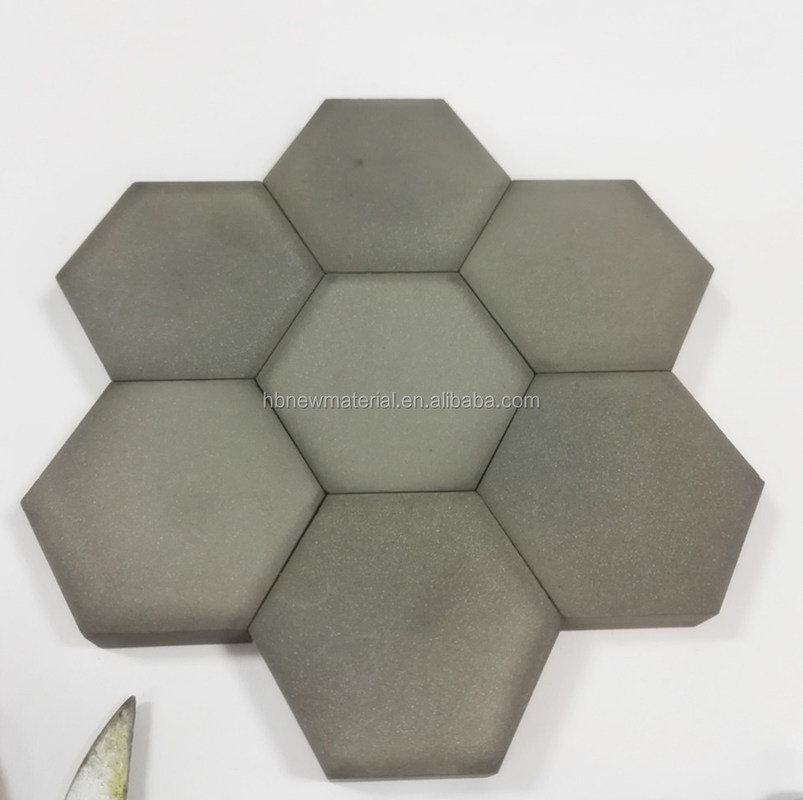

Commodity: Hexagonal Boron Carbide Ceramic Tiles
Main Application: Industrial Use
| Item | Al2O3 | SiC | B4C |
|---|---|---|---|
| Density | 3.5g/cm3 | 3.1g/cm3 | 2.4-2.65g/cm3 |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural Strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive Strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture Toughness | 4.8 Mpa.m1/2 | 4.0 Mpa.m1/2 | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity | 20 m0k | 120 m0k | 29 m0k |
| Coefficient of Thermal Expansion | 7.2x106 | 4x106 | 4.5x106 |
In vacuum plastic bag, in carton and then in wood case.
| SW (mm) | T (mm) |
|---|---|
| 20 | 2 |
| 20 | 3 |
| 20 | 4 |
| 20 | 5 |
| 20 | 6 |
| 20 | 7 |
| 20 | 8 |
| 20 | 9 |
| 20 | 10 |
| 30 | 2 |
| 30 | 3 |
| 30 | 4 |
| 30 | 5 |
| 30 | 6 |
| 30 | 7 |
| 30 | 8 |
| 30 | 9 |
| 30 | 10 |
| 40 | 2 |
| 40 | 3 |
| 40 | 4 |
| 40 | 5 |
| 40 | 6 |
| 40 | 7 |
| 40 | 8 |
| 40 | 9 |
| 40 | 10 |
| 40 | 20 |
| 40 | 30 |
| 40 | 40 |
| 40 | 50 |
| 40 | 60 |
China Hunan High Broad was established in year 2006. We devote ourselves to researching, developing, producing and selling of New Materials. The sales office is located in Changsha, China. Our goods are widely applied in high-tech field such as aerospace, machine manufacturing, electrommunication, etc. Our products are accepted and recognized by clients worldwide including Europe, America, East Asia etc.
Our technical team have leading design and R&D ability, we can supply high quality & stable products, and also provide the technical solution during your producing and processing.
We took a part in many R&D projects in colleges and universities, and started strategic cooperation with many companies in China and overseas.
Believe we are the top choose to become your best partner.
Our Belief: Continuous Innovation
Our Spirit: Sincerity, Unity, Dedicated, Hardworking
Our Mission: Provide most advanced products & most professional technical solution.

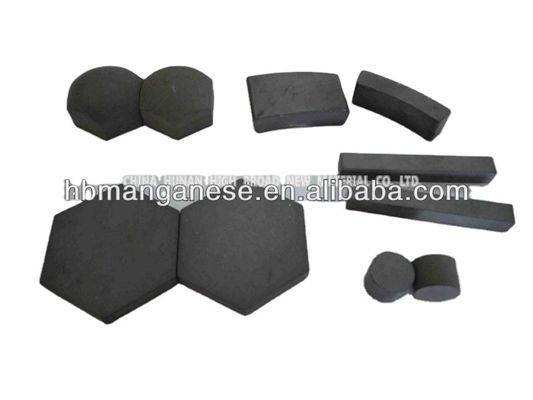

We also have many other shape silicon carbide plates: Square, Rectangular, Round, Cylinder
