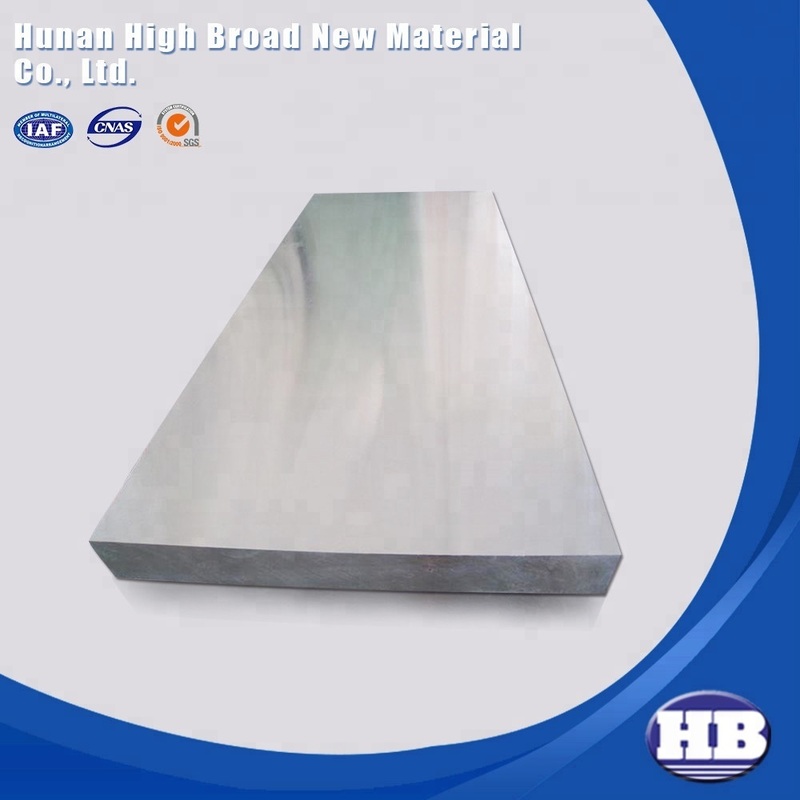

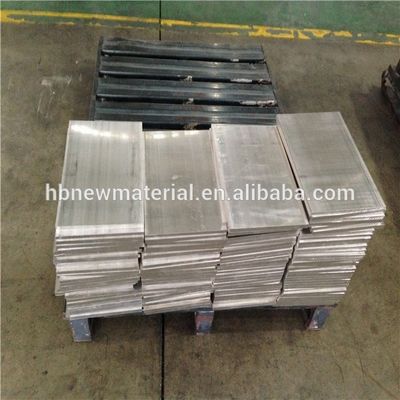

High Purity AZ31B AZ61 Magnesium Alloy Plate Extruded/Casting for CNC Engraving 0.5-7mm Thickness
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO9001,ISO14001,EJ/T9001-2005 |
| Model Number: | AZ31 AZ61 AZ91 WE43 ZK60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Chemical Composition: | AI:2.5-3.5%;Zn:0.7-1.3%;Mn:0.20-1.0%;Mg:Balance | Material: | Magnesium Alloy |
|---|---|---|---|
| Shape: | Sheet/plate/board | Process: | Extruded/Casting |
| Thickness Range: | 0.5 To 7mm | Max Width: | 600mm |
| Max Length: | 1200mm | Tensile Strength: | 35 Ksi |
| Yield Strength: | 19 Ksi | Elongation: | 10% |
| Compressive Yield: | 10 Ksi | Thickness Tolerance: | ±0.010 To ±0.135 Inches |
| Width Tolerance: | +3/16 To +5/8 Inches | Length Tolerance: | +3/16 To +5/8 Inches |
| Flatness Tolerance: | 0.005 To 0.020 Inches | ||
| Highlight: | Extruded/Casting Magnesium Alloy Plate,Corrosion Resistant Magnesium Sheet,Lightweight Magnesium Tooling Plate |
||

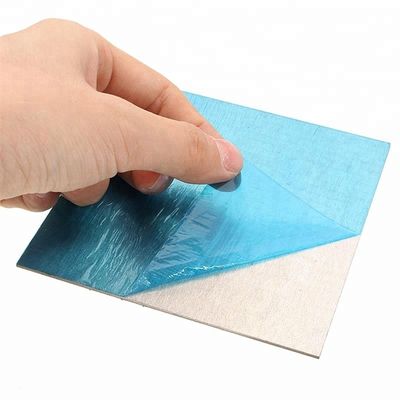

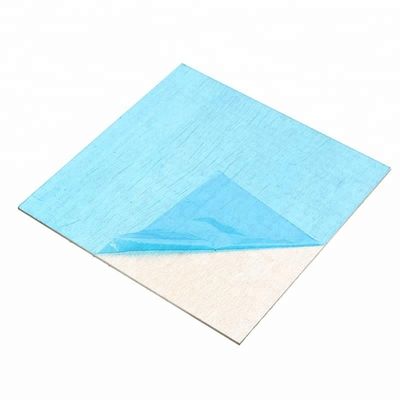

Product Description
This standard covers magnesium tooling plate of one grade and quality offered for sale for use in jigs, fixtures, gauges and other applications.
Magnesium tooling plate is made to AZ31 composition shown in the Chemical Composition table below. Tooling plate can be supplied to MIL-T-38749 on inquiry.
| Alloy | Mg | Al | Ca | Mn | Ih | Zn | Zr | Cu max. | Fe max. | Ni max. | Si max. | Other imp. max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AZ31 | Bal. | 2.5-3.5 | 0.04 max | 0.20 min. | - | 0.7-1.3 | - | 0.05 | 0.005 | 0.005 | 0.05 | 0.30 |
Typical mechanical properties of AZ31 tooling plate are shown in the table below. Minimum properties are not guaranteed.
| Thickness, inches | TS, ksi | TYS, ksi | Elong. in 2″, % | CYS, ksi |
|---|---|---|---|---|
| 0.250-6.000 | 35 | 19 | 10 | 10 |
| Thickness | Size |
|---|---|
| .250, .375 | 48″x 96″ | 48″x 144″ |
| .500, .625, .750, 1.000 | 48″x 96″ | 48″x 144″ | 60″x 144″ |
| 1.250, 1.500, 1.750 | 48″x 96″ | 48″x 144″ | 60″x 144″ |
| 2.000, 2.500, 3.000 | 48″x 96″ | 48″x 144″ | 60″x 144″ |
| 3.500 | 48″x 96″ |
| 4.000 | 49″x 84″ |
| 5.000 | 49″x 72″ |
| 6.000 | 49″x 60″ |
Special Inquiries: For thicknesses over 6 inches, widths over 60 inches, and non-standard lengths.
Thickness - maximum variation in gauge within a plate ± 0.010 plate to plate variation
| Specified thickness, inches | Tolerance ±, inches |
|---|---|
| 0.250-0.750 | 0.010 |
| 0.751-1.250 | 0.017 |
| 1.251-2.000 | 0.025 |
| 2.001-3.000 | 0.050 |
| 3.001-3.250 | 0.065 |
| 3.251-3.500 | 0.080 |
| 3.701-4.000 | 0.110 |
| 4.001-5.000 | 0.125 |
| 5.001-6.000 | 0.135 |
| Specified thickness, inches | Up thru 10 | Over 10 thru 48 | Over 48 thru 72 | Over 72 |
|---|---|---|---|---|
| 0.250-6.000 | 3/16 | 3/8 | 1/2 | 5/8 |
| Specified thickness, inches | In any 1 foot | In any 6 feet |
|---|---|---|
| 0.250-1.000 | 0.005 (Guaranteed) / 0.003 (Typical) | 0.015 (Guaranteed) / 0.007 (Typical) |
| 1.001 | 0.010 (Guaranteed) / 0.005 (Typical) | 0.020 (Guaranteed) / 0.010 (Typical) |
* Deviations from flat are measured from a straight edge placed on the surface of the plate.
The side suitable for tooling uses is stencilled. The opposite side is equal or superior to a mill finish.
Conforms to requirements of carrier through which shipment is made. Both domestic and export packing available.
- AZ31 / AZ31B - Rod, Tooling Plate
- AZ31B-H24 - Spec Grade - Sheet & Plate Sheet, Plate
- AZ91C - As cast or heat treated - Castings
- AZ91E - As cast or heat treated - Castings
- AZ80 - Bar
- EV31A - As cast or heat treated - Castings
- ZE41A - As cast or heat treated - Castings
- ZK60A - Bar, Sheet, Plate
| Magnesium Plates OEM | High Purity AZ31B AZ91 WE43 Magnesium Plates, magnesium sheet |
| Application | CNC engraving |
| Shape | sheet/plate/board |
| Chemical Composition | AI:2.5-3.5%;Zn:0.7-1.3%;Mn:0.20-1.0%;Mg:Balance |
| Process | Extruded/Casting |
| Size | thickness from 0.5 to 7mm; Max width is 600mm; Max. length is 1200mm |
| Other name | Magnesium Alloy Rod Bar |
| Type | MIC, High potential, AZ63C, AZ31 |
| Certification | ISO9001, ISO14001, EJ/T9001-2005 |
| Packaging | In Carton /wood crate/on pallet |
