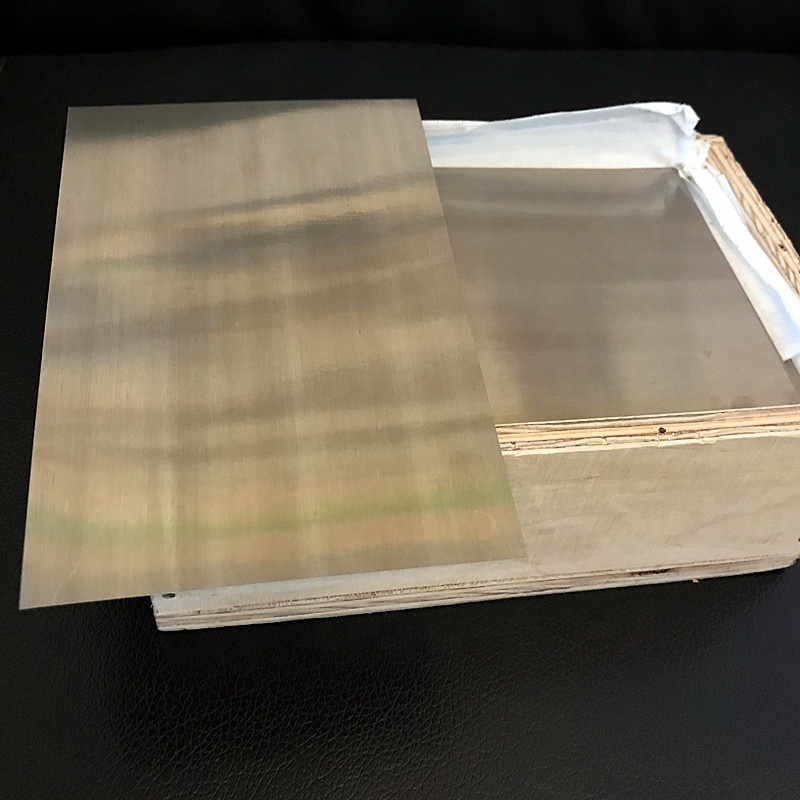

High Purity Magnesium Foil and Alloy Plate in 0.1 mm 0.2 mm 0.3 mm Thick for Laboratory Chemicals
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO9001,ISO14001,EJ/T9001-2005 |
| Model Number: | AZ31 AZ61 AZ91 WE43 ZK60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|
|
Detail Information |
|||
| Thickness Range: | 0.02-100 Mm | Alloy Composition: | AI:2.5-3.5%;Zn:0.7-1.3%;Mn:0.20-1.0% |
|---|---|---|---|
| Material Type: | Magnesium Alloy | Max Roll Weight: | 80kg |
| Plate Width: | 280mm Max | Density: | 1.78 G/cm3 |
| Yield Strength: | >180 Mpa | Tensile Strength: | >200 Mpa |
| Elongation Percentage: | >7% | Available Grades: | AZ31, AZ61, AZ91, AP65, MnE21, WE43, WE54, WE94 |
| Processing Method: | Hot Rolling | Form Options: | Sheet, Plate, Bar, Castings, Forgings, Extrusions |
| Thickness Options: | 0.04-1.0mm | Shape Options: | Rod, Tooling Plate, Sheet, Plate, Castings, Bar |
| Standard Thickness: | 0.1mm, 0.2mm, 0.3mm | ||
| Highlight: | 0.1 mm Thick Magnesium Foil,0.2 mm Thick Magnesium Alloy Plate,0.3 mm Thick Magnesium Sheet |
||
Product Description
Magnesium Foils Laboratory Chemicals 0.1 mm 0.2 mm 0.3 mm Thick
Magnesium Foil - Laboratory Chemicals
Hot roll magnesium alloy foil with grades including AZ31, AZ61, AZ91, AP65, MnE21, etc. Maximum roll weight: 80kg, maximum plate width: 280mm, thickness range: 0.05-1mm.
Magnesium alloy features small density, high specific strength, large elastic modulus, excellent electromagnetic shielding, easy recovery, and environmental friendliness. As an outstanding light structural material, magnesium alloys are widely used in automotive, computer, communications, and aerospace industries. Many countries consider it a strategic material for the 21st century.
While the Chinese market primarily offers magnesium alloy strips with thicknesses above 0.5mm, our company specializes in producing thinner gauges from 0.05-1mm, offering significant industry development potential.
Technical Specifications
| Grade | Thickness (mm) | Width (mm) | Length (mm) | Density (g/cm3) | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
|---|---|---|---|---|---|---|---|
| AZ31 AZ61 AZ91 Pure Magnesium Mne21 WE43 | 0.2 | 100 | As per request or by coil | 1.78 | >180 | >200 | >7 |
| 0.17 | 190 | ||||||
| 0.14 | 100 | ||||||
| 0.12 | 241 | ||||||
| 0.08 | 265 | ||||||
| 0.08 | 231 | ||||||
| 0.06 | 100 | ||||||
| 0.06 | 258 | ||||||
| 0.04 | 216 | ||||||
| 0.04 | 220 |
Available Alloys and Forms
- WE43/WE54/WE94 - Rod, Tooling Plate
- AZ31B-H24 - Spec Grade - Sheet & Plate Sheet, Plate
- AZ91C - As cast or heat treated - Castings
- AZ91E - As cast or heat treated - Castings
- AZ80 - Bar
- EV31A - As cast or heat treated - Castings
- ZE41A - As cast or heat treated - Castings
- ZK60A - Bar, Sheet, Plate
Extruded Magnesium Alloys and Forms Available: Thickness 0.04-1.0mm
Additional Product Forms
Sheet, Plate, Bar, Castings, Forgings, Extrusions
- AZ31-TP Tooling Plate From .250″ to 14″ thickness
- AZ31B-H24 Sheet & Plate From .020″ to 3″ thickness
- AZ31B-O Sheet & Plate From .020″ to 3″ thickness
- AZ31B-F Round Bar From .250″ to 14″ diameter
- ZK60A-T5 Flat Bar Many sizes
- ZK60A-F Flat Bar Many sizes
- ZK60A-T5 Round Bar From 1″ to 15″ diameter
- ZK60A-F Round Bar From 1″ to 15″ diameter
- AZ61A-F Round Bar From 1″ to 3.125″ diameter
- Forgings, Castings, and Special Extruded Shapes
Other Available Grades
- WE43
- WE54
- WE94
- AZ91D
