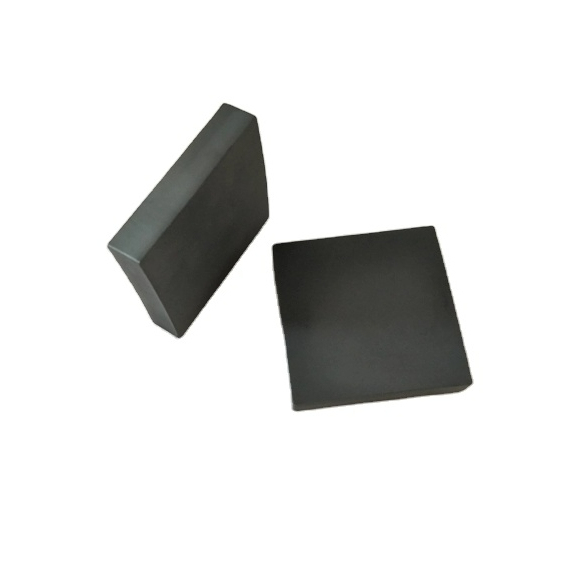

Hexagonal Silicon Carbide Ceramic Tiles with High Hardness for Industrial Applications
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Model Number: | SIC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $40-50 |
|
Detail Information |
|||
| Chemical Composition: | Silicon | Material: | Sic / B4c |
|---|---|---|---|
| Shape: | SQUARE / HEXAGON | Density: | 3.1g/cm3 (SiC), 2.4-2.65g/cm3 (B4C) |
| Hardness: | HV2750 (SiC), HV3300 (B4C) | Flexural Strength: | 380 Mpa (SiC), 400-650 Mpa (B4C) |
| Compressive Strength: | 3970 Mpa (SiC), 4100 Mpa (B4C) | Fracture Toughness: | 4.0 Mpa.m1/2 (SiC), 4.5-7.0 Mpa.m1/2 (B4C) |
| Thermal Conductivity: | 120m0k (SiC), 29 M0k (B4C) | Thermal Expansion: | 4x10 6 (SiC), 4.5x10 6 (B4C) |
| Thickness: | 3mm,4mm,5mm,6mm,7mm,8mm | Size: | 50x50 Or Others |
| Hexagon SW: | 20mm,30mm,40mm | Hexagon T: | 2mm-10mm,20mm-60mm |
| Grade: | Pure B4C | ||
| Highlight: | Hexagonal Silicon Carbide Ceramic Tiles,High Hardness Ceramic Tiles,Industrial Application Ceramic Tiles |
||
Product Description
Silicon Carbide / Boron Carbide Ceramics
Hexagonal Silicon Carbide Ceramic Tiles
Main application: Structural components
Material Properties Comparison
| Item | Al2O3 | SiC | B4C |
|---|---|---|---|
| Density | 3.5g/cm3 | 3.1g/cm3 | 2.4-2.65g/cm3 |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture toughness | 4.8 Mpa.m1/2 | 4.0 Mpa.m1/2 | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity | 20 m0k | 120m0k | 29 m0k |
| Coefficient of thermal expansion | 7.2x10 6 | 4x10 6 | 4.5x10 6 |
Packaging
Packaged in vacuum plastic bag, carton, and wood case.
Available Sizes (Hexagonal Shape)
| SW (mm) | T (mm) |
|---|---|
| 20 | 2 |
| 20 | 3 |
| 20 | 4 |
| 20 | 5 |
| 20 | 6 |
| 20 | 7 |
| 20 | 8 |
| 20 | 9 |
| 20 | 10 |
| SW (mm) | T (mm) |
|---|---|
| 30 | 2 |
| 30 | 3 |
| 30 | 4 |
| 30 | 5 |
| 30 | 6 |
| 30 | 7 |
| 30 | 8 |
| 30 | 9 |
| 30 | 10 |
| SW (mm) | T (mm) |
|---|---|
| 40 | 2 |
| 40 | 3 |
| 40 | 4 |
| 40 | 5 |
| 40 | 6 |
| 40 | 7 |
| 40 | 8 |
| 40 | 9 |
| 40 | 10 |
| 40 | 20 |
| 40 | 30 |
| 40 | 40 |
| 40 | 50 |
| 40 | 60 |
Other Available Shapes
Square, Rectangular, Round, Cylinder
Company Introduction
China Hunan High Broad was established in 2006. We specialize in researching, developing, producing and selling advanced materials. Our sales office is located in Changsha, China.
Our products are widely applied in high-tech fields including aerospace, machine manufacturing, and telecommunications, and are recognized by clients worldwide including Europe, America, and East Asia.
Our technical team possesses leading design and R&D capabilities, enabling us to provide high-quality, stable products along with technical solutions for your production and processing needs.
We collaborate on R&D projects with colleges and universities, and maintain strategic partnerships with companies both in China and overseas.
We are confident in being your ideal partner for advanced material solutions.
Company Culture
Our Belief: Continuous Innovation
Our Spirit: Sincerity, Unity, Dedicated, Hardworking
Our Mission: Provide most advanced products & most professional technical solutions.
Certifications
Want to Know more details about this product
