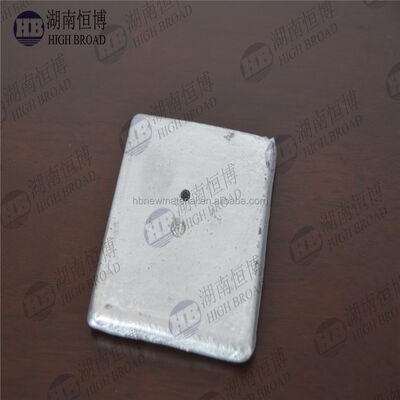

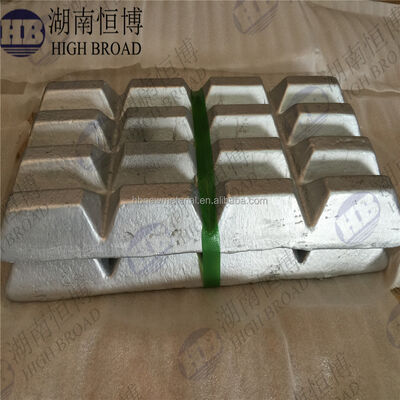

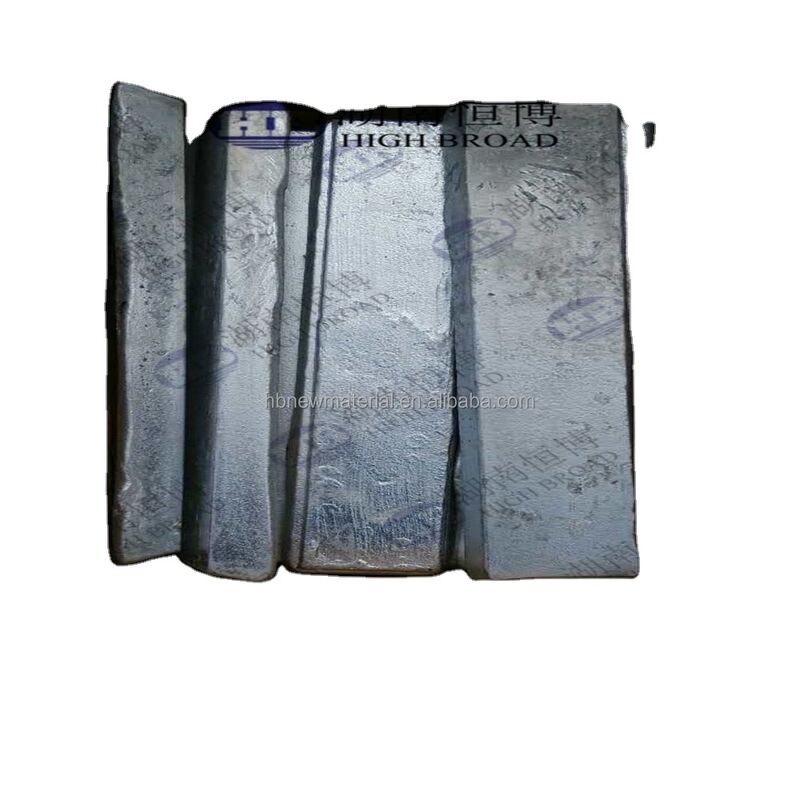

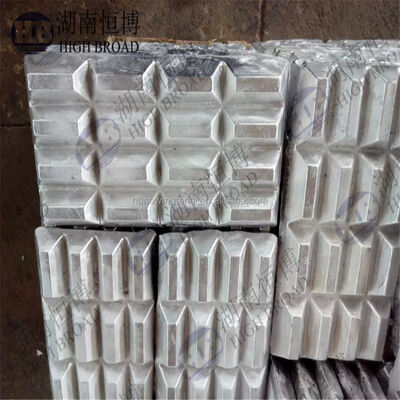

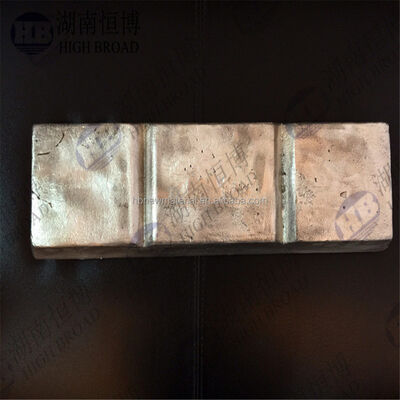

Aluminum Beryllium Master Alloy AlBe Ingot with Be 3-5% for Grain Refinement and Improved Mechanical Properties
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Model Number: | BE 3-5% |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $45-50 |
|
Detail Information |
|||
| Chemical Composition: | AlBe | Material: | AlBe3, AlBe5 |
|---|---|---|---|
| Shape: | Ingot | Weight: | 6-8kgs |
| Process: | Cast | Alloy Content: | Be 3-5% |
| Be Content: | 3.0-4.0% (AlBe3), 4.8-5.5% (AlBe5) | Fe Content: | 0.05% Max. (AlBe3), 0.12% Max. (AlBe5) |
| Si Content: | 0.02% Max. (AlBe3), 0.08% Max. (AlBe5) | Mg Content: | 0.05% Max. |
| Cr Content: | 0.03% Max. (AlBe3), 0.05% Max. (AlBe5) | Ti Content: | 0.01% Max. |
| Pb Content: | 0.005% Max. | Ingot Weight: | 3-5kgs |
| Packing: | Plywood Cases Wrapped With Iron Belt | ||
| Highlight: | Be 3-5% Aluminum Beryllium Master Alloy,Refine Grain AlBe Master Alloy,Improve Mechanical Property AlBe Alloy Ingot |
||
Product Description
Aluminum Beryllium Master Alloy
High-quality AlBe master alloys available in various grades including AlBe3.5% and AlBe5.0% beryllium content, supplied as ingots for aerospace and industrial applications.
Product Specifications
AlBe3.50% Aluminum Beryllium Master Alloy
| Element | Content (%) |
|---|---|
| Beryllium (Be) | 3.0-4.0 |
| Iron (Fe) | 0.05 Max |
| Silicon (Si) | 0.02 Max |
| Magnesium (Mg) | 0.05 Max |
| Chromium (Cr) | 0.03 Max |
| Titanium (Ti) | 0.01 Max |
| Lead (Pb) | 0.005 Max |
| Aluminum (Al) | Balance |
AlBe5.0% Aluminum Beryllium Master Alloy
| Element | Content (%) |
|---|---|
| Beryllium (Be) | 4.8-5.5 |
| Iron (Fe) | 0.12 Max |
| Silicon (Si) | 0.08 Max |
| Magnesium (Mg) | 0.05 Max |
| Chromium (Cr) | 0.05 Max |
| Titanium (Ti) | 0.01 Max |
| Zinc (Zn) | 0.02 Max |
| Copper (Cu) | 0.05 Max |
| Nickel (Ni) | 0.05 Max |
| Manganese (Mn) | 0.05 Max |
| Lead (Pb) | 0.005 Max |
| Aluminum (Al) | Balance |
Ingot Weight: 3-5 kgs each
Packaging: Plywood cases wrapped with iron belt
Applications & Benefits
- Refine cast structure for improved metallurgical properties
- Modify second phase grain formation for enhanced performance
- Increase recrystallization temperature when used with manganese
- Improve alloy impact strength and solderability
Technical Overview
Aluminum-beryllium alloys represent a family of low-density, high-elastic modulus materials developed for advanced aerospace applications. These alloys combine the high specific stiffness of beryllium with the ductility and fabrication ease of aluminum, achieving densities from 2.0 to 2.58 g/cc with excellent strength and ductility characteristics.
Manufacturing & Quality
Place of Origin: Hunan, China
Packaging: Vacuum plastic bags in steel drums or on pallets
Product Images
Frequently Asked Questions
What is Master Alloy?
- Grain Refiners: Control crystal structure and dispersion for improved mechanical strength
- Modifiers: Enhance micro-structural properties to increase strength, toughness, and ductility
- Hardeners: Modify composition of metal alloys for specific properties
Technical Support
Our professional technical engineers provide detailed guidance on product selection and usage. We offer customized alloy solutions based on your specific material performance requirements.
Quality Certifications
Additional Product Range
We also supply magnesium alloys, aluminum alloys, rare earth alloys, and various copper master alloys including CuBe, CuCr, CuZr, and CuTi compositions.
