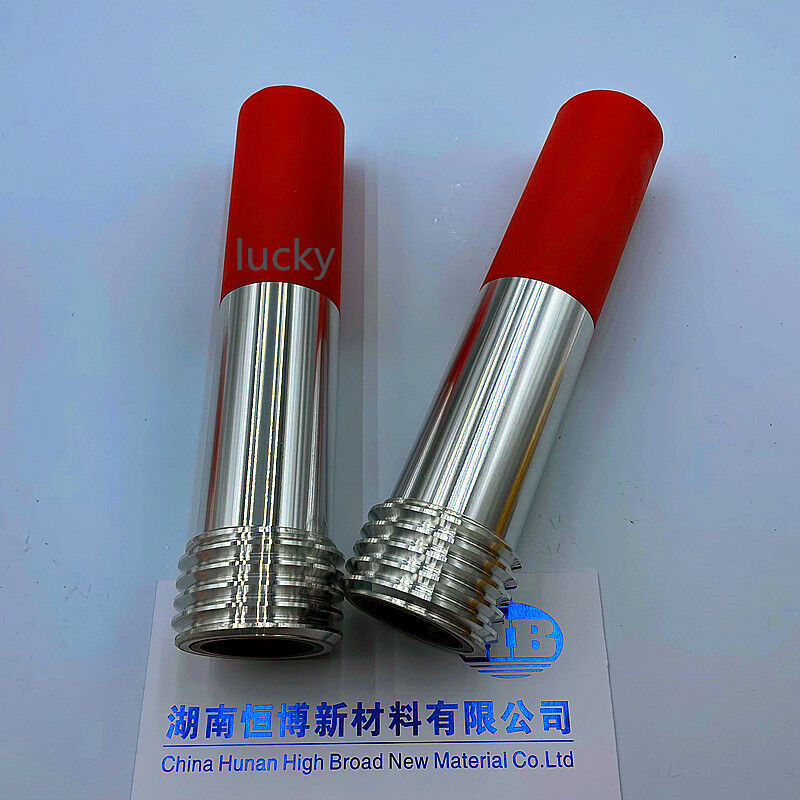

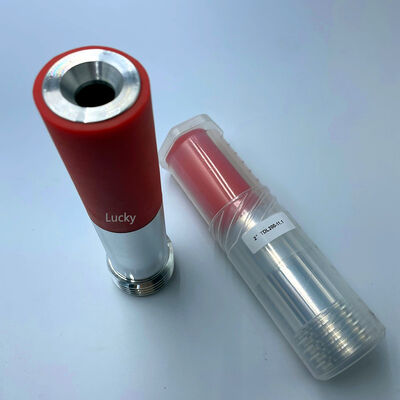

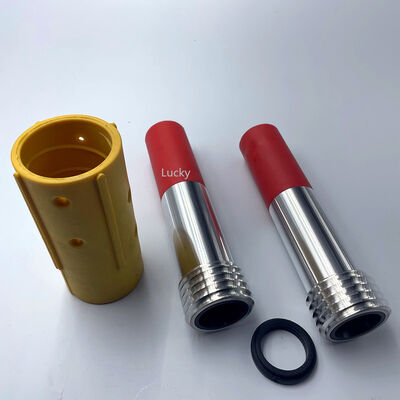

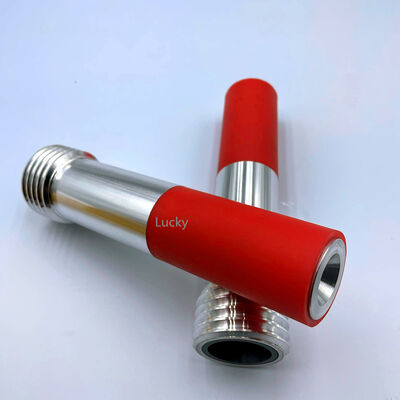

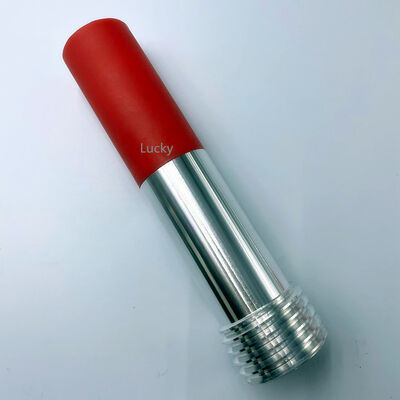

Hot pressed B4C Wearable Sandblasting Cleaning Boron Carbide Venturi Nozzle
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HIGH BROAD |
| Certification: | ISO |
| Model Number: | hot pressed b4c nozzle |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | TBA |
| Packaging Details: | Firstly PVC vacuum packaging and then export carton packaging |
| Delivery Time: | 10-1000pcs: 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pcs each year |
|
Detail Information |
|||
| Material: | Hot Pressed Boron Carbide Nozzles | Model No.: | Venturi Lead-in Etc |
|---|---|---|---|
| Sintering: | Hot Pressed | Specification: | 6.4MM, 7.9MM, 9.5MM, 11MM, 12.5MM |
| Highlight: | B4C sandblasting nozzle,wearable boron carbide nozzle,hot pressed Venturi nozzle |
||
Product Description
Material: Boron Carbide (B4C).
Jacket: Aluminum / Polyurethane Protector.
The hardness of boron carbide is only secondary to diamond and CBN. The density of the boron carbide products produced by us is close to its academic density 2.52g/cm3. The advantages are: longer service life, high hardness, high wear-resistance ability, anti-corrosion, lower cost per use, reducing down time. It's the ideal material for sandblasting nozzle and mechanical seal.
The gas dynamics of venturi nozzle is better than straight-hole nozzle, the vortex is improved or ceased to exist, greatly reduced the pressure loss in the same pressure conditions. Abrasive exports increased to more than double the speed, efficiency than the straight-hole nozzle to increase 15% -40%, 20% lower abrasive consumption.
Boron carbide can be used to manufacture sandblasting gun nozzles, which is extremely hard and wear-resistant, no reaction with acid-base, high/low temperature resistance, high pressure resistance, crystal system: hexagonal, density: 2.52g/cm3, Mohs hardness: 9.36, microhardness 5400-6300kg/mm2, bending strength ≥400Mpa, melting point: 2450ºC. Because it has the characteristics of wear resistance and high hardness, Boron Carbide Sandblasting Nozzle will gradually replace the known carbide/tungsten steel and silicon carbide, silicon nitride, alumina, zirconia and other materials sandblasting nozzle in the future.
| Specifications | |||||
| Item | Specifications (mm) | ||||
| I. D Φd | Exit size | Length L | Thread size | ||
| BN1901-6.4 | 6.4 | 10.5 | 135 | 2''-4-1/2 (UNC) | |
| BN1901-8.0 | 7.9 | 12.0 | 150 | ||
| BN1901-9.5 | 9.5 | 14.0 | 165 | ||
| BN1901-11.0 | 11.0 | 15.5 | 190 | ||
| BN1901-12.5 | 12.5 | 17.0 | 215 | ||
Note: Special requirement on specifications can be satisfied through discussion.
| Service Life | |||
| Nozzle Material | Service life(h, by time) | ||
| Steel grit/shot | Silica sand | Brown aluminium oxide | |
| Alumina | 20-40 | 10-30 | 1-4 |
| Tungsten Carbide | 500-800 | 300-400 | 20-40 |
| Silicon Carbide | 600-1000 | 400-600 | 50-100 |
| Boron Carbide | 2000-2500 | 1000-1500 | 500-1000 |
