SiC Ceramic Ballistic Armor Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad |
| Certification: | ISO/ASTM |
| Model Number: | Special Ceramics |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20kg sample order is acceptable. |
|---|---|
| Price: | USD20-40.00/kg based on 1-100tons |
| Packaging Details: | In carton and then on wood case |
| Delivery Time: | 10-25 working days |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 100mt per month |
|
Detail Information |
|||
| Product: | SiC Ceramic Ballistic Armor Plate | Shape: | Square Shape 50x50mm 100x100mm,thickness Is Per Buyer's Request. |
|---|---|---|---|
| Hex Shape: | SW 20mm,30mm,40mm Etc. | Price: | USD20-40.00/kg Based On 1-100tons |
| Highlight: | SiC ceramic ballistic armor plate,ballistic armor plate with warranty,ceramic ballistic tiles for protection |
||
Product Description

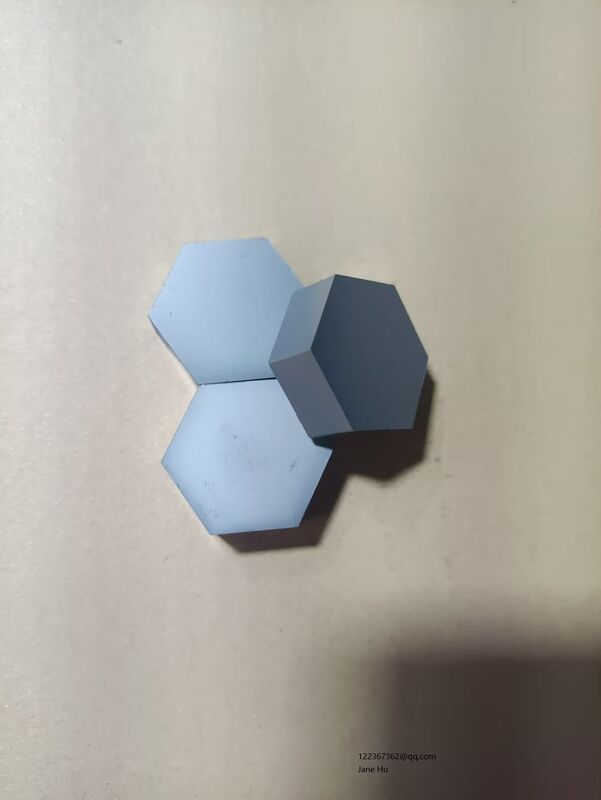

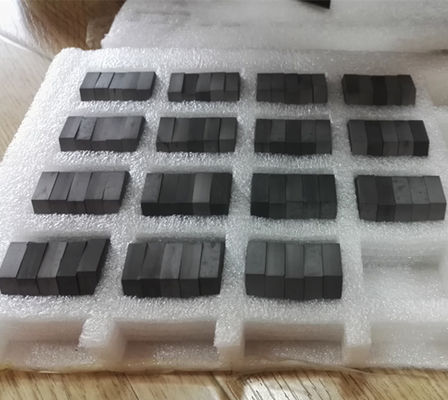

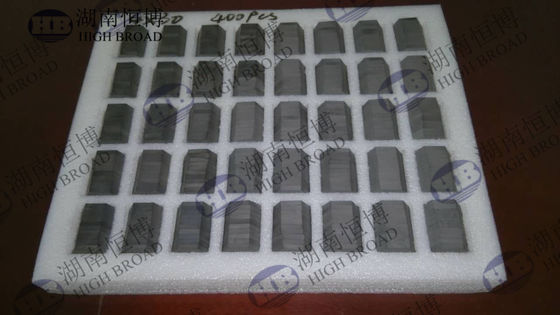

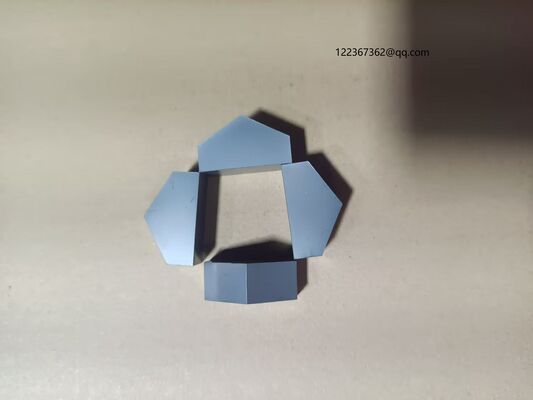

SiC Ceramic Ballistic Armor Plate
Company: HUNAN HIGH BROAD NEW MATERIAL CO.,LTD
Product Overview
Silicon Carbide (SiC) Ceramic Ballistic Plate is a high-performance lightweight armor material, mainly used in body armor, vehicle armor, aviation protection and military equipment. It features ultra-high hardness, excellent impact resistance, low density and stable performance in extreme environments.
Product Specifications & Advantages
| Item | Details | Key Benefits |
|---|---|---|
| Material | High-purity SiC ceramic | High hardness, superior wear resistance, long service life |
| Density | 3.10–3.21 g/cm³ | Lightweight, reduces overall weight of protective equipment |
| Hardness | ≥ 2800 HV | Excellent bulletproof and anti-fragmentation performance |
| Protection Level | NIJ Level III / IV, meets military standards | Effectively resists rifle bullets and fragments |
| Thickness | 2mm – 20 mm (customizable) | Flexible for different protection requirements |
| Size | Customizable (square, curved, special shapes) | Compatible with vests, vehicles, aircraft and ships |
| Working Temperature | -50°C to 500°C | Stable performance in harsh environments |
| Application | Body armor inserts, vehicle armor, helicopter armor, explosion-proof shields | Wide military, police and security applications |
Key Features
- Ultra-high ballistic performance
SiC ceramic has extremely high hardness, which can break and deflect projectiles efficiently, providing reliable protection.
- Lightweight design
Lower density than steel and alumina ceramic, greatly reducing weight while maintaining high protection.
- High stability & durability
Good thermal shock resistance, corrosion resistance and anti-aging performance.
- Customizable shape & size
Supports flat, curved and special-shaped processing to meet different assembly needs.
- Stable batch quality
Strict raw material control and sintering process ensure consistency for mass orders.
Main Applications
- Individual soldier ballistic plates / body armor inserts
- Armored vehicles, tanks and military transport vehicles
- Helicopter and aircraft cabin protection
- Naval ship armor components
- Explosion-proof shields and special police equipment
- Military and police equipment for global customers
Why Choose Us
- Professional manufacturer of SiC ceramic ballistic materials
- Stable production capacity and strict quality control
- Support custom size, thickness and performance parameters
- Complete export documentation and international certification
- Professional technical support and after-sales service
