Boron Carbide Ballistic Tile - NIJ Level IV Ultra-Lightweight Hexagonal 100x100mm Ceramic Strike Face
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | B4C Tile |
| Document: | Performance Comparison of P...)1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Pieces |
|---|---|
| Price: | USD 2-60 / Piece |

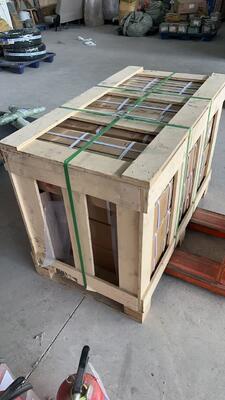

| Packaging Details: | High Broad branded carton with EPE foam interlayer, export-grade wooden case |
| Delivery Time: | 7 working days for stock, 25-35 days for production |
| Payment Terms: | T/T,PayPal,Western Union |
| Supply Ability: | 80000 Pieces per Month |
|
Detail Information |
|||
| Material: | Boron Carbide (B4C) | Protection Level: | NIJ Level IV |
|---|---|---|---|

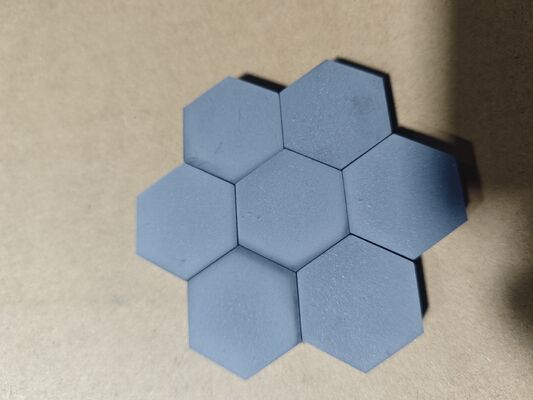

| Tile Shape: | Hexagonal | Tile Size: | 100x100 Mm , 50x50 Mm |
| Thickness: | 2-80mm | Areal Density: | 22-28 Kg/m2 |
| Multi-Hit Capability: | Yes (3+ Hits) | Hardness: | >2600 HV |
| Flexural Strength: | >350 MPa | Fracture Toughness: | 2.5-3.5 MPa M1/2 |
| Surface Flatness: | <=0.1mm | ||
| Highlight: | Boron Carbide Protective Ceramic Tile,NIJ IV Ultra-Light Armor Plate,Hexagonal Multi-Hit Ballistic Insert |
||
Product Description
Boron Carbide Protective Ballistic Tile NIJ IV Ultra-Lightweight 100x100mm Hexagonal Body Armor Ceramic Strike Face
Boron Carbide Protective Ballistic Tile - Ultra-Light NIJ IV Protection
The High Broad B4C boron carbide protective tile delivers NIJ Level IV protection at 25% lower weight than SiC alternatives. Regular-pressed B4C with hardness >3000 HV. Hexagonal 100x100mm interlocking geometry. Diamond-ground finish with 100% ultrasonic C-scan inspection. Ideal for special operations armor, aviation crew protection, and high-mobility vehicle add-on kits.
Key Specifications
| Parameter | Value |
|---|---|
| Standard | NIJ IV (0101.06) |
| Material | Sintered B4C |
| Hardness | >3000 HV |
| Multi-Hit | 3+ hits |
| Density | 22-28 kg/m² |
| Thickness | 2-80mm |
Contact High Broad for NIJ certification docs and volume pricing.
