Iridium-Tantalum MMO Coated Titanium Wire Flexible Linear Anode with 30+ Years Design Life and 100 mA/m Current Density for Impressed Current CP
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO 9001, ASTM B348 |
| Model Number: | MMO-TW-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | depend on quantity |

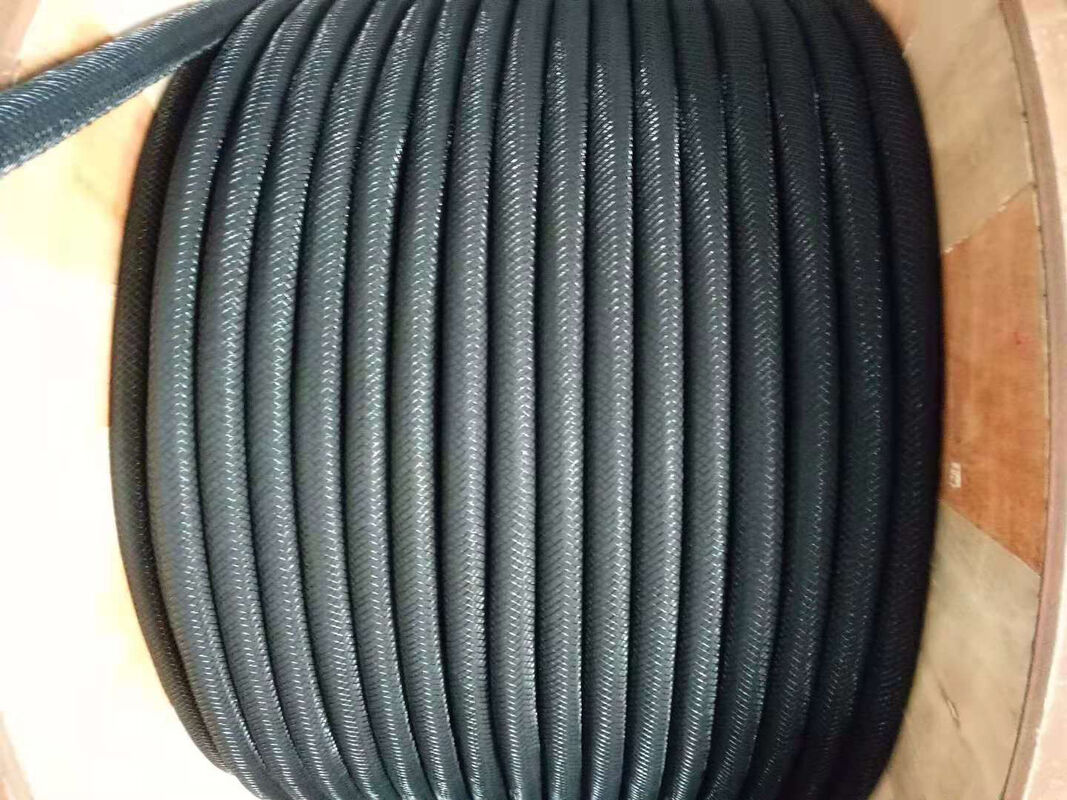

| Packaging Details: | by roll |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000 meters / month |
|
Detail Information |
|||
| Anode Type: | MMO Coated Ti Wire Flexible Linear | Coating: | Iridium-Tantalum Mixed Metal Oxide |
|---|---|---|---|
| Substrate: | ASTM B348 Grade I/II Titanium Wire | Design Life: | 30+ Years |
| Current Density: | Up To 100 MA/m | Testing: | Spectrometer Analysis, Electrochemical Test |
| Tensile Strength: | High | ||
| Highlight: | Iridium Tantalum MMO Coated Anode,Titanium Wire Linear CP Anode,Flexible Impressed Current System |
||
Product Description

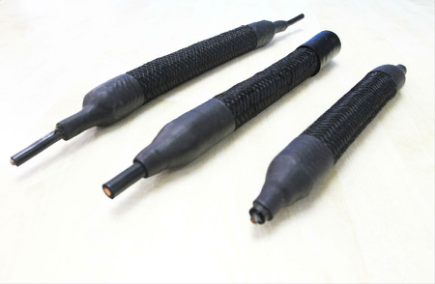

Iridium Tantalum MMO Coated Titanium Wire Flexible Linear Anode for Impressed Current CP
Product Overview
Our flexible linear anode features a high-tensile titanium wire substrate coated with iridium-tantalum mixed metal oxide (MMO) catalyst. This advanced electrochemical coating delivers exceptional stability and low consumption rates in soil and fresh water cathodic protection applications.
Coating Technology
The iridium-tantalum MMO catalyst is applied through a precisely controlled thermal decomposition process, creating a uniform, adherent oxide layer that provides:
- Low overpotential for oxygen and chlorine evolution
- Excellent dimensional stability under high current density
- Resistance to passivation in varying soil chemistries
- Design life exceeding 30 years under rated conditions
Substrate Quality
Titanium wire per ASTM B348 Grade I/II ensures high tensile strength, excellent corrosion resistance, and reliable electrical conductivity. Each batch undergoes spectrometer verification for chemical composition conformance.
Applications
- Buried pipeline impressed current CP systems
- Underground storage tank protection
- Reinforced concrete structure CP
