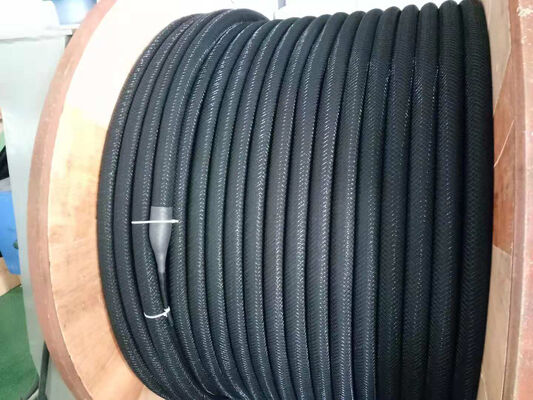

Double Interlocking Stitch Acid-Resistant Jacketed MMO Linear Anode with pH Resistance 2-12 and 500N Tensile Strength
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO 9001, pH 2-12 Tested |
| Model Number: | MMO-AR-005 |
|
Detail Information |
|||
| Jacket Material: | Stabilized Non-woven Synthetic | Temperature Range: | -20°C To 85°C |
|---|---|---|---|
| Tensile: | 500N Longitudinal Pull Tested | Stitch Type: | Poly Double Interlocking 2/4 Thread |
| PH Resistance: | 2-12 Range | Anode Type: | Acid-Resistant Jacketed MMO Linear |
| Highlight: | Acid Resistant Braid Jacket Anode,Corrosive Soil MMO Protection,Poly Interlocking Stitch Sleeve |
||
Product Description
Standard synthetic jackets fail in aggressive environments. Our heavy-duty acid-resistant braid fabric jacket is purpose-built for the harshest soil conditions — chemical plants, mine sites, industrial waste areas, and acidic soil corridors.
Porous non-woven synthetic fabric with proprietary chemical stabilizers. Acid resistance tested at pH 2-12 range with no degradation in tensile strength or permeability after 1,000-hour immersion.
Poly two or four-thread double interlocking stitch pattern creates a seam stronger than the fabric itself. Independent testing confirms no seam separation at temperatures up to 85°C or under 500N longitudinal pull force.
Maintains essential gas venting while preventing soil fines ingress — critical for preventing anode passivation in clay-rich or silty soils.
Over 50km installed in Southeast Asian chemical plant sites and Middle Eastern sabkha (salt flat) environments with zero jacket-related failures reported.
- Chemical processing plant CP
- Mining facility corrosion protection
- Acidic sulfate soil environments
- Coastal salt marsh pipeline crossings
