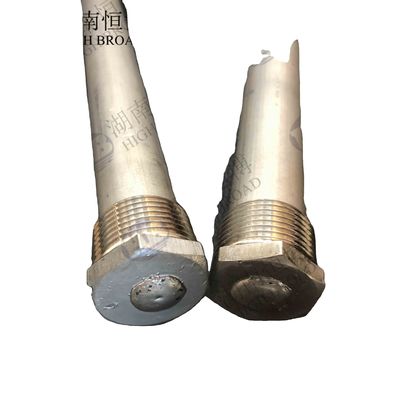

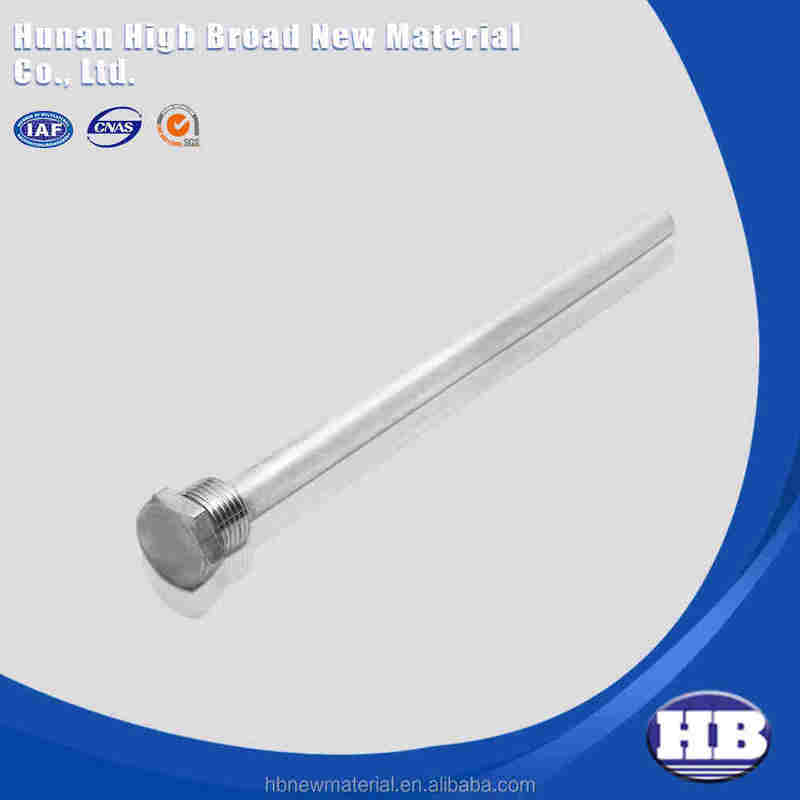

Flexible Segmented High Purity Magnesium Anode Rod 36 Inch 0.9 Inch Diameter Steel Core Threaded for Deep Well Tanks
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | ISO 9001:2015 |
| Model Number: | WMR-FL36D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Pieces |
|---|---|
| Price: | USD 7.50-14.50 / Piece |
| Packaging Details: | Protective poly tube with foam spacers, export carton, 15 pieces per carton |
| Delivery Time: | 5 working days for stock, 20-25 days for production |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 30000 Pieces per Month |
|
Detail Information |
|||
| Diameter: | 0.9 Inch (23mm) | Overall Length: | 36 Inch (914mm) |
|---|---|---|---|
| Thread Type: | 3/4 Inch NPT Male | Core Material: | 304 Stainless Steel Wire 3.5mm |
| Anode Material: | High Purity Magnesium (Mg ≥ 95%) | Segment Count: | 6 Articulated Links |
| Weight: | 1.80 Lbs (816g) | Min Bend Radius: | 8 Inches |
| Highlight: | flexible segmented magnesium anode rod,high purity magnesium anode rod for deep well tanks,36 inch threaded magnesium anode rod with steel core |
||
Product Description
Flexible Segmented Magnesium Anode Rod 36" for Deep Well Tanks
The WNRLN WMR-FL36D addresses cathodic protection challenges in deep well and underground water storage tanks where access constraints prevent the use of rigid anode rods. Six magnesium alloy segments are connected by a durable 304 stainless steel wire core, allowing the rod to navigate bends and obstructions during insertion. Each segment is 0.9 inches in diameter, providing substantial sacrificial material for extended protection life.
Key Features
- Deep Well Compatible: Flexible design navigates bends and confined entry points
- 6 Thick Segments: 0.9 inch diameter per segment for extended service life
- Stainless Steel Core: 304 stainless wire resists corrosion in submerged conditions
- High Purity Magnesium: Mg ≥ 95% for maximum protection efficiency
- 8 Inch Bend Radius: Tight articulation for challenging installations
Technical Specifications
| Anode Material | High Purity Magnesium (Mg ≥ 95%) |
| Connecting Core | 304 Stainless Steel Wire, Diameter 3.5mm |
| Thread Adapter | Brass 3/4 inch NPT Male |
| Rod Diameter | 23mm (0.9 inch) |
| Overall Length | 914mm (36 inch) |
| Net Weight | 816g ± 20g |
| Min Bend Radius | 8 inches (203mm) |
