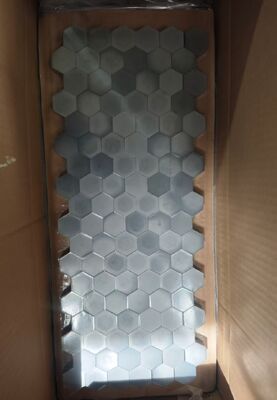

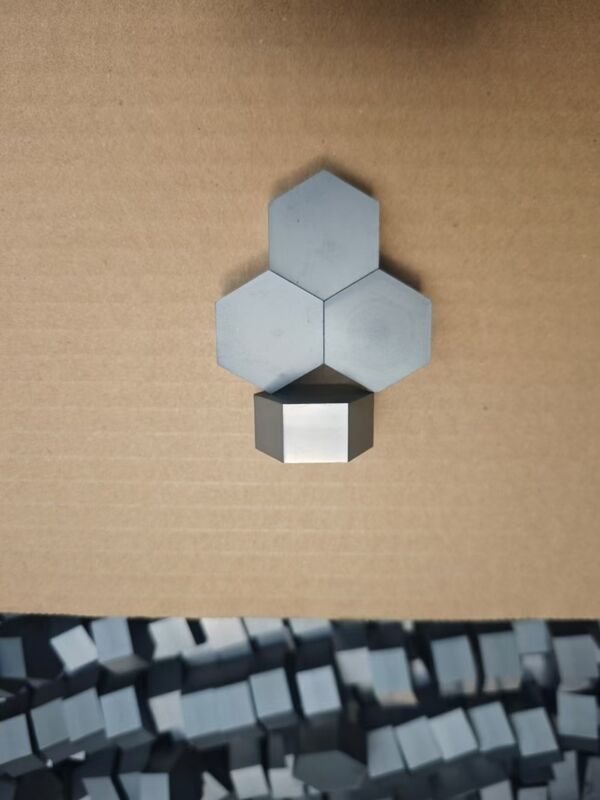

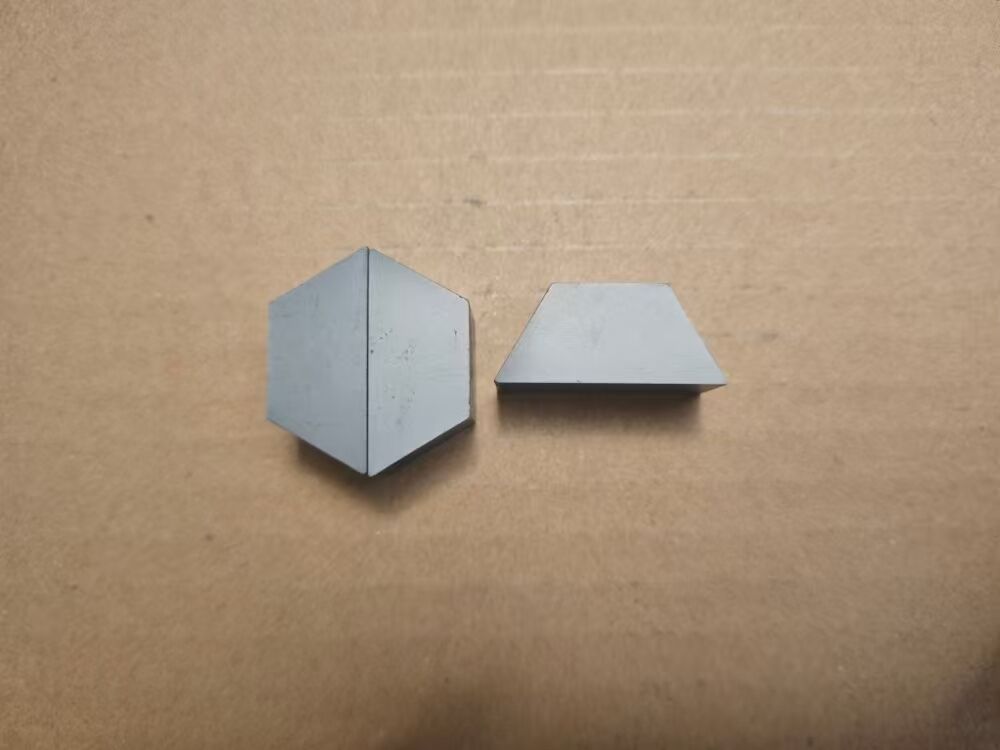

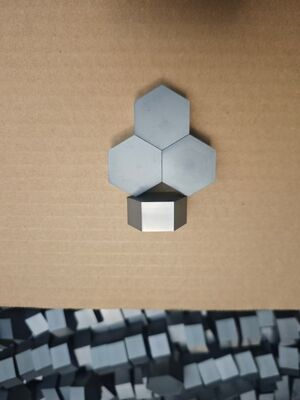

High Hardness 2650 HV Silicon Carbide Strike Face Plate with NIJ III Protection and Multi-Hit Durability
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | ECER |
| Certification: | NIJ 0101.06 Level III, ISO 9001:2015 |
| Model Number: | ECER-SIC-HH-3-1012 |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Kilograms |
|---|---|
| Price: | USD 20-40 / KGS |
| Packaging Details: | Individual EPE foam wrapping with corrugated box, export-grade plywood pallet |
| Delivery Time: | 5-7 working days for samples, 15-25 days for bulk orders |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 5000 mts per Month |
|
Detail Information |
|||
| NIJ Protection Level: | Level III (7.62x51mm M80 NATO) | Weight: | 2.3 Kg (Single Plate) |
|---|---|---|---|
| Density: | 3.15 G/cm³ | Dimensions: | 10 X 12 Inch (250 X 300 Mm) |
| Hardness: | 2650 HV (Knoop, Minimum) | Operating Temperature: | -50°C To +80°C |
| Highlight: | High Hardness SiC Strike Face,Durable Multi-Hit Ceramic Plate,Industrial Grade SiC Armor |
||
Product Description
High-Hardness Silicon Carbide Strike Face Protection Plate — Industrial-Grade Durability at Wholesale Pricing
Material Comparison: Why SiC Dominates the Ceramic Armor Landscape
| Parameter | Silicon Carbide (SiC) | Alumina Oxide (Al₂O₃) | Boron Carbide (B₄C) |
|---|---|---|---|
| Knoop Hardness | 2,600-2,800 HV | 1,800-2,100 HV | 2,800-3,200 HV |
| Density | 3.10-3.18 g/cm³ | 3.85-3.95 g/cm³ | 2.48-2.52 g/cm³ |
| Fracture Toughness | 3.5-4.5 MPa·m½ | 3.0-3.5 MPa·m½ | 2.5-3.0 MPa·m½ |
| Elastic Modulus | 410-450 GPa | 340-380 GPa | 440-470 GPa |
| Thermal Conductivity | 120-170 W/m·K | 24-30 W/m·K | 30-42 W/m·K |
| Cost Index (per plate) | Moderate | Low | Very High |
| Industrial Scalability | Excellent | Excellent | Limited |
It represents our premium industrial-grade Silicon Carbide plate. Unlike standard SiC tiles that may suffer from inconsistent sintering quality, our high-hardness variant is manufactured under strict process controls to deliver guaranteed minimum 2650 HV Knoop hardness across the entire strike face — including edges, where cheaper plates often fail.
Why Hardness Consistency Matters
- Edge-to-Edge Protection: Many budget ceramic plates show hardness drop-off at tile edges due to uneven sintering. Our process ensures homogeneous density and hardness from center to edge.
- Consistent Multi-Hit Performance: Each shot impacts a different tile area. Uniform hardness ensures predictable shattering regardless of impact location.
- Lower Porosity for Longer Shelf Life: Near-zero porosity (<0.5%) prevents moisture absorption that can degrade ceramic performance over time — rated for 12-year shelf life.
- Better Thermal Shock Resistance: SiC's superior thermal conductivity (120-170 W/m·K vs alumina's 24-30 W/m·K) means it handles rapid temperature swings without micro-cracking.
The SiC Cost-Performance Advantage Summarized
- VS Alumina Oxide: 30% harder, 20% lighter, 50% better multi-hit rating — for only a 20-30% cost increase
- VS Boron Carbide: 90% of the ballistic performance at 35-45% lower cost with dramatically better supply chain reliability
- VS Pure PE: Defeats M855/SS109 penetrators that UHMWPE-only plates cannot stop
Key Features
- 2650 HV Minimum Guaranteed Hardness: Each production batch is hardness-tested with documentation available
- Near-Zero Porosity Sintering: Advanced pressureless sintering with post-HIP treatment for <0.5% porosity
- Aramid/UHMWPE Hybrid Backing: Combines the thermal stability of aramid with the lightweight toughness of UHMWPE
- Full Cut Profile: Maximum coverage area for vital organ protection
- 12-Year Rated Shelf Life: Extended service life reduces total cost of ownership
Equip your force with industrial-grade Silicon Carbide armor that outperforms alumina on every metric and rivals boron carbide at half the cost. Contact us now for technical datasheets, ballistic reports, and wholesale pricing.
