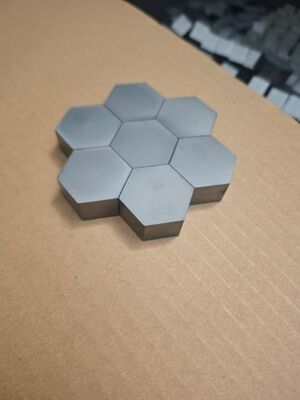

Silicon Carbide Ballistic Tile Kit with 400x400mm Panel Size and Field Replaceable Tiles for NIJ Level III Protection
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015, NIJ 0101.06 |
| Model Number: | SIC Tiles |
| Document: | SIC Ballistic Armor Tiles-P...ad.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Pieces |
|---|---|
| Price: | USD 0.1-1/pieces |
| Packaging Details: | Kit packed in EPE foam tray with placement guide + export-grade plywood case |
| Delivery Time: | 7-10 working days for stock, 20-25 days for production |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000000 KGS per Month |
|
Detail Information |
|||
| Density: | 3.10-3.15 G/cm³ (tile) | Flexural Strength: | 380-450 MPa |
|---|---|---|---|
| Tile Size: | 400x400mm (assembled Panel) | Areal Density: | ≤36 Kg/m² (assembled) |
| Fracture Toughness: | 3.5-4.5 MPa·m½ | Thickness: | 8.0mm (tile) / 16mm (total) |
| Highlight: | SiC Tile Array Kit,Modular Strike Face System,NIJ III Protection Panel |
||
Product Description
Silicon Carbide Ceramic Ballistic Tile Array Kit NIJ Level III Modular Strike Face Protection 400x400mm Panel Kit
SiC Ballistic Tile Array Kit - Modular Protection System
NIJ Level III | Complete 400x400mm Assembly | Field Replaceable Tiles
- All-In-One Kit
- Field Serviceable
- Template Guided Assembly
Complete Kit, Ready to Assemble
The High Broad is a China tile array kit containing everything needed to build a 400x400mm NIJ Level III strike face panel. Each kit includes: 16 precision-ground 100x100mm SiC tiles, a laser-cut adhesive template, edge-gap spacers, and perimeter sealing components. The modular design means individual damaged tiles can be field-replaced without scrapping the entire panel—dramatically reducing lifecycle costs. For organizations currently using B4C tile kits, switching to our SiC kit typically reduces procurement costs by 40-50% without measurable protection degradation.
Kit Contents
16x SiC Tiles (100x100x8mm), 1x Laser-Cut Adhesive Template, Edge-Gap Spacers, Perimeter Sealing Strip, Assembly Instruction Card, Batch Traceability Certificate.
Lifecycle Cost Advantage
Field-replaceable tiles mean a damaged panel doesn't require complete replacement. Replace only affected tiles at ~$35 each vs scrapping a $500+ B4C monolithic panel—an 85%+ repair cost reduction.
Standardized Interface
The 400x400mm panel dimension is a widely adopted standard for vehicle add-on armor. Kits can be combined side-by-side for larger coverage areas with consistent seam spacing between panels.
Batch Traceability Included
Each kit ships with a unique batch number linking all 16 tiles to their sintering lot, hardness test results, and dimensional inspection report—full material genealogy for quality assurance.
Kit Specifications
| Assembled Panel Size | 400 x 400 mm |
| Tile Count per Kit | 16 (4x4 array) |
| Individual Tile Size | 100 x 100 x 8 mm |
| Tile Material | Pressureless Sintered SiC |
| Inter-Tile Gap | 1.5 ± 0.2 mm |
| Edge Chamfer | 0.3mm x 45° on all tiles |
| Template Material | Laser-Cut Acrylic (Reusable) |
| Kit Weight | ~4.8 kg (tiles only) |
Upgrade to modular SiC tile kits—lower cost, easier maintenance
Email: janehu@hbnewmaterial.com
Custom kit configurations and volume discounts available
